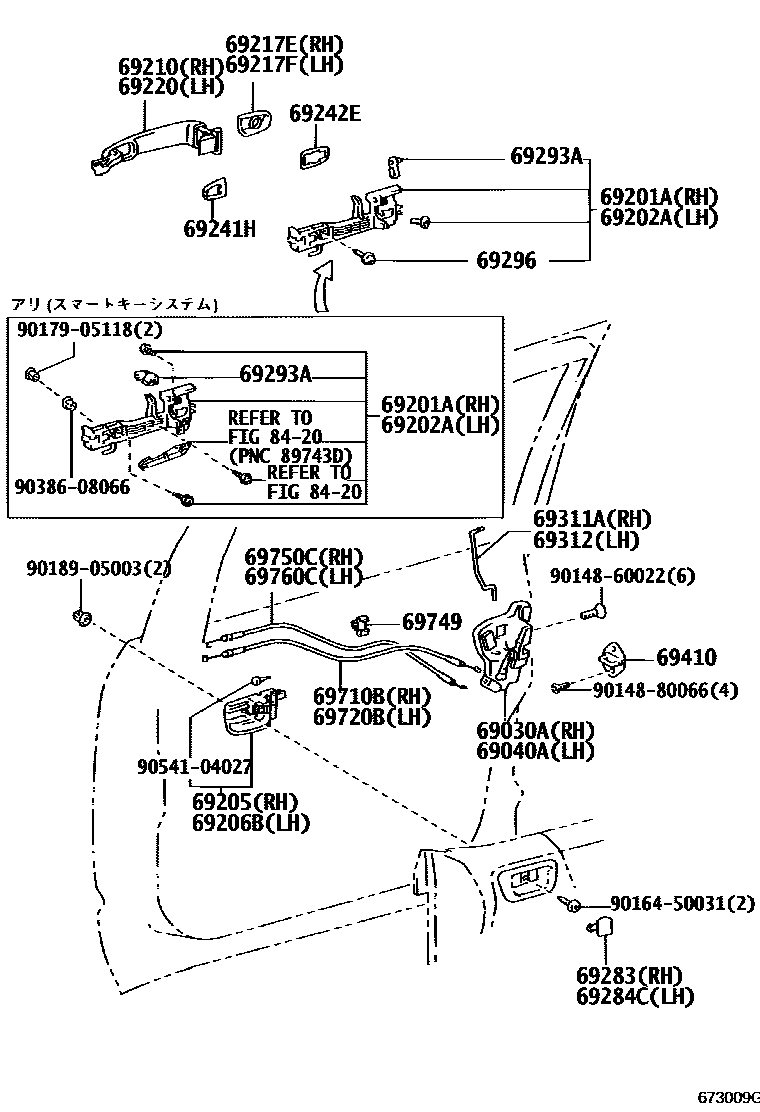

FRONT DOOR LOCK & HANDLE
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
sub69205-12190
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
sub69206-12190
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
69296SCREW, DOOR INSIDE HANDLE
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69749CLAMP, FRONT DOOR LOCK LINK
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
8420
9014860022
main90148-60022
9014880066
main90148-80066
9016450031
main90164-50031
9017905118
main90179-05118
9018905003
main90189-05003
9038608066
main90386-08066
9054104027
main90541-04027
32 parts on this diagram · 1 diagram in section
