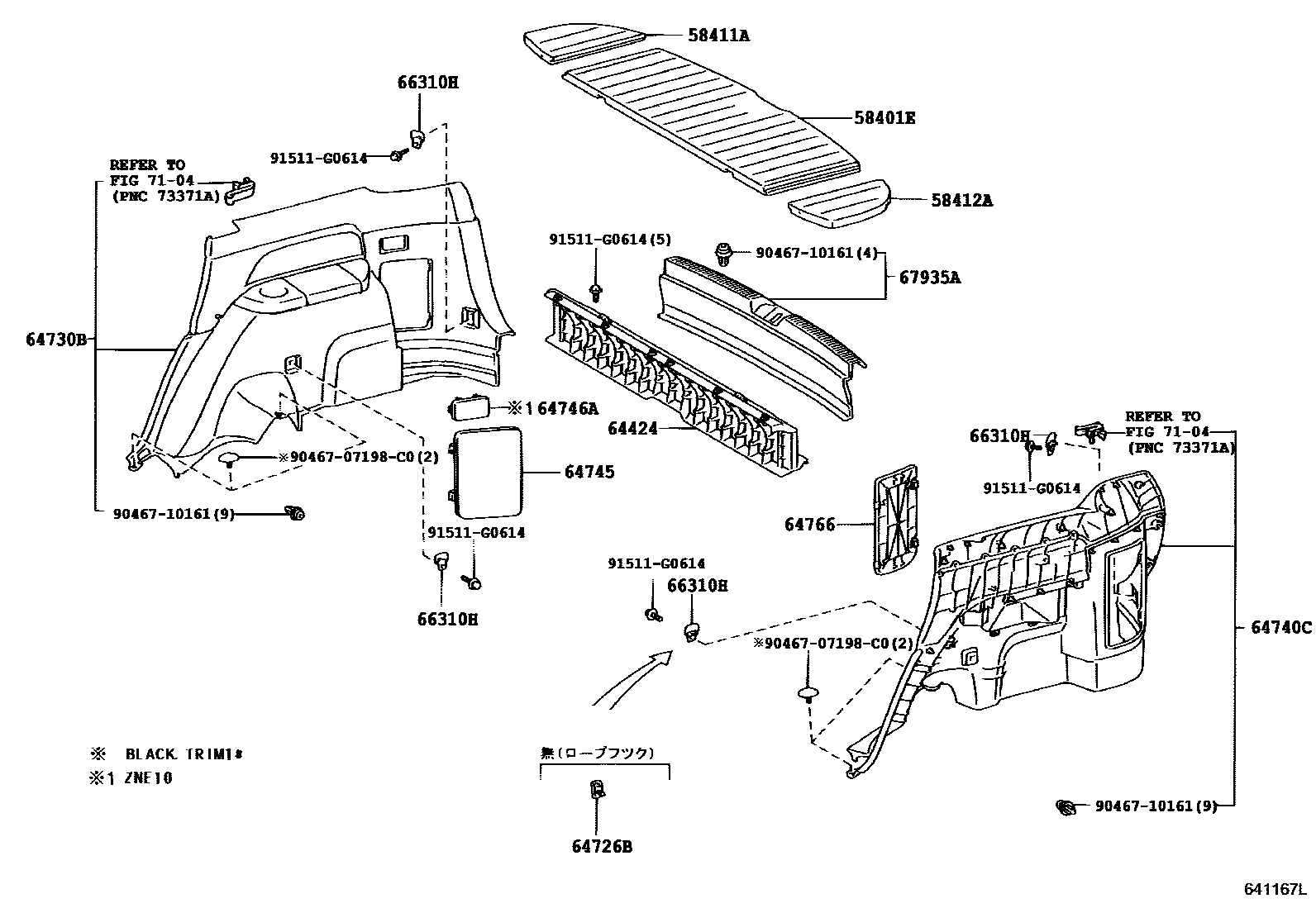

DECK BOARD & DECK TRIM COVER

58401EBOARD SUB-ASSY, DECK

main58410-68010-B0iANE1#,ZNE1#200508-200903

DARK GRAY,TRIM1#

main58410-68010-B1iZNE1#200706-200806

58411ABOARD, DECK, NO.1

main58411-68010-B0iANE1#,ZNE1#200301-200508

DARK GRAY,TRIM1#

main58411-68010-B1iZNE1#200706-200806

58412ABOARD, DECK, NO.2

main58412-68010-B0iANE1#,ZNE1#200301-200508

DARK GRAY,TRIM1#

main58412-68010-B1iZNE1#200706-200806

64424SEPARATOR, LUGGAGE ROOM BOX

main64424-68010iANE1#,ZNE1#200301-200508

64726BCLIP, DECK REAR TRIM

main64726-68010-B0×4iZNE10200301-200508

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-68010-B0iANE1#,ZNE1#200301-200508

DK.GRAY,TRIM1#

main64730-68020-B0iANE1#,ZNE1#200508-200903

DK.GRAY,TRIM1#

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64740-68010-B0iANE1#,ZNE1#200301-200508

DK.GRAY,TRIM1#

main64740-68020-B0iANE1#,ZNE1#200508-200903

DK.GRAY,TRIM1#

64745COVER, REAR COMBINATION LAMP SERVICE, RH

main64745-68010-B0iANE1#,ZNE1#200301-200508

DK.GRAY,TRIM1#

main64745-68020-B0iANE1#,ZNE1#200508-200903

DK.GRAY,TRIM1#

64746ACOVER, DECK TRIM SIDE LAMP HOLE

main64746-68020-B0iZNE10200301-200508

64766COVER SUB-ASSY, QUARTER TRIM JACK

main64766-68010-B0iANE1#,ZNE1#200301-200508

DK.GRAY,TRIM1#

main64766-68020-B0iANE1#,ZNE1#200508-200903

DK.GRAY,TRIM1#

66310HHOOK ASSY, ROPE

main66310-13010×4iANE1#,ZNE1#200301-200508

67935APLATE, BACK DOOR SCUFF

main67935-68010-B0iANE1#,ZNE1#200301-200508

DK.GRAY,TRIM1#

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

9046707198C0

main90467-07198C0

9046710161

main90467-10161

91511G0614

main91511-G0614

16 parts on this diagram · 1 diagram in section
