FRONT AXLE ARM & STEERING KNUCKLE

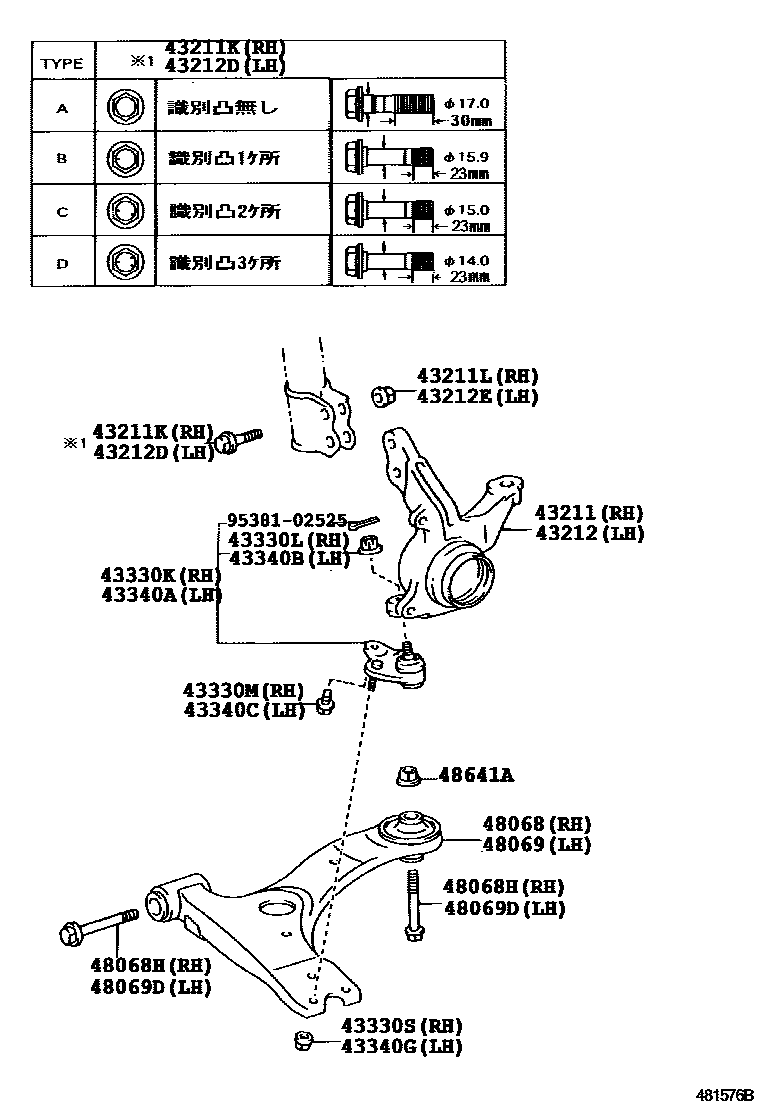

Parts diagram

43211KNUCKLE, STEERING, RH

main43211-12410i200301-200508

main43211-19015i200508-200903

main43211-21040i200508-200903

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-17008×2i200304-200508

main90105-17009i200304-200508

main90105-17010i200508-200903

main90105-17011i200508-200903

main90109-15002i200301-200508

main90109-15003i200508-200903

main90109-15004i200301-200508

main90901-05001×2i200301-200508

43211LNUT (FOR STEERING KNUCKLE RH)

main90178-17001×2i200304-200508

main90179-15004×2i200301-200508

43212KNUCKLE, STEERING, LH

main43212-12360i200301-200508

main43212-19015i200508-200903

main43212-21040i200304-200508

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-17008×2i200304-200508

main90105-17009i200508-200903

main90105-17010i200508-200903

main90105-17011i200304-200508

main90109-15002i200301-200508

main90109-15003i200508-200903

main90109-15004i200301-200508

main90901-05001×2i200301-200508

43212ENUT (FOR STEERING KNUCKLE LH)

main90178-17001×2i200508-200903

main90179-15004×2i200508-200903

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-19115i200301-200312

main43330-29425i200304-200508

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14003i200301-200508

43330MBOLT (FOR FRONT LOWER BALL JOINT RH)

main90105-12156i200301-200306

main90105-12336i200306-200508

43330SNUT (FOR FRONT LOWER BALL JOINT RH)

main90178-12015×2i200306-200508

main90179-12070×2i200301-200306

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-19115i200301-200312

main43330-29425i200304-200508

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14003i200301-200508

43340CBOLT (FOR FRONT LOWER BALL JOINT LH)

main90105-12156i200301-200306

main90105-12336i200306-200508

43340GNUT (FOR FRONT LOWER BALL JOINT LH)

main90178-12015×2i200508-200903

main90179-12070×2i200301-200306

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-20400i200301-200508

main48068-21010i200304-200508

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90119-14108×2i200301-200508

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-20400i200301-200508

main48069-21010i200304-200508

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90119-14108×2i200301-200508

48641ANUT(FOR SUSPENSION LOWER ARM SHAFT)

main90179-14068×2i200301-200508

9538102525

main95381-02525

20 parts on this diagram · 3 diagrams in section
