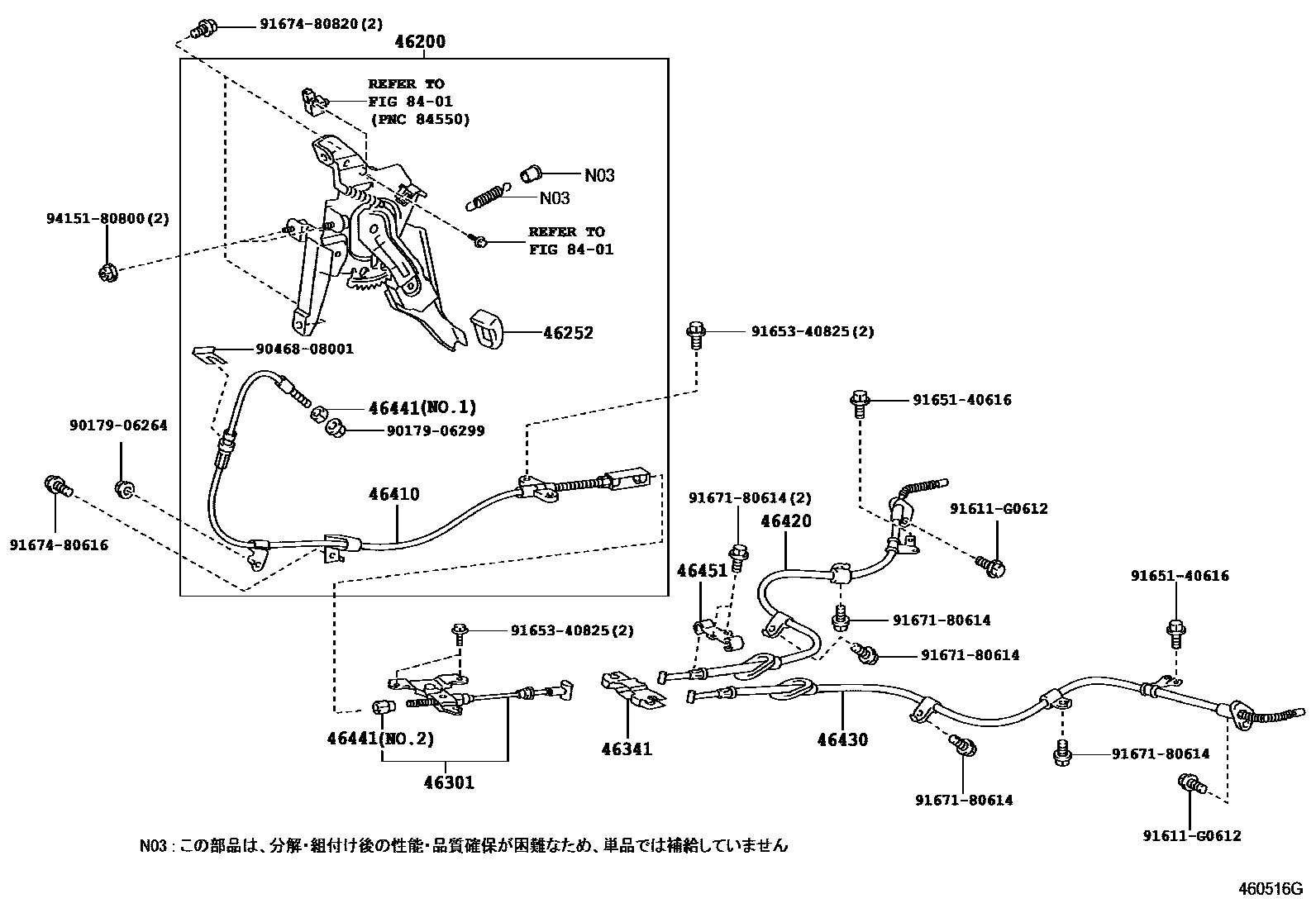

PARKING BRAKE & CABLE

0001 1���� ���-� 0002 1����� ���-� 0003 1����� ���-� 0004 1����� ���-� 0005 1����� ���-� 0006 1����� ���-�

46200PEDAL ASSY, PARKING BRAKE CONTROL

main46200-68020supersedes 46200-68010iANE1#; ZNE10200508-200903

main46200-68030iZNE14200508-200903

46252PAD, PARKING PEDAL

main46252-68010iANE1#,ZNE1#200301-200508

46301LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

main46320-68010iZNE10200301-200508

46341EQUALIZER, PARKING BRAKE

main46341-12020iZNE14200508-200903

main46341-20070iANE1#,ZNE10200301-200508

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-68020supersedes 46410-68010iANE1#200304-200508

main46410-68030iZNE14200508-200903

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-68020supersedes 46420-68010iANE10200304-200508

main46420-68030iANE11200508-200903

main46420-68040iZNE14200301-200508

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-68020supersedes 46430-68010iANE10200304-200508

main46430-68030iANE11200304-200508

main46430-68040iZNE14200508-200903

46441NUT, WIRE ADJUSTING, NO.1

main46441-12010iANE1#,ZNE1#200301-200508

main46441-47010iZNE10200301-200308

main46441-47020iZNE10200308-200508

46451BRACKET, CABLE SUPPORT

main46451-68010iANE1#,ZNE10200301-200508

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9017906264

main90179-06264

9017906299

main90179-06299

9046808001

main90468-08001

91611G0612

main91611-G0612

9165140616

main91651-40616

9165340825

main91653-40825

9167180614

main91671-80614

9167480616

main91674-80616

9167480820

main91674-80820

9415180800

main94151-80800

20 parts on this diagram · 6 diagrams in section
