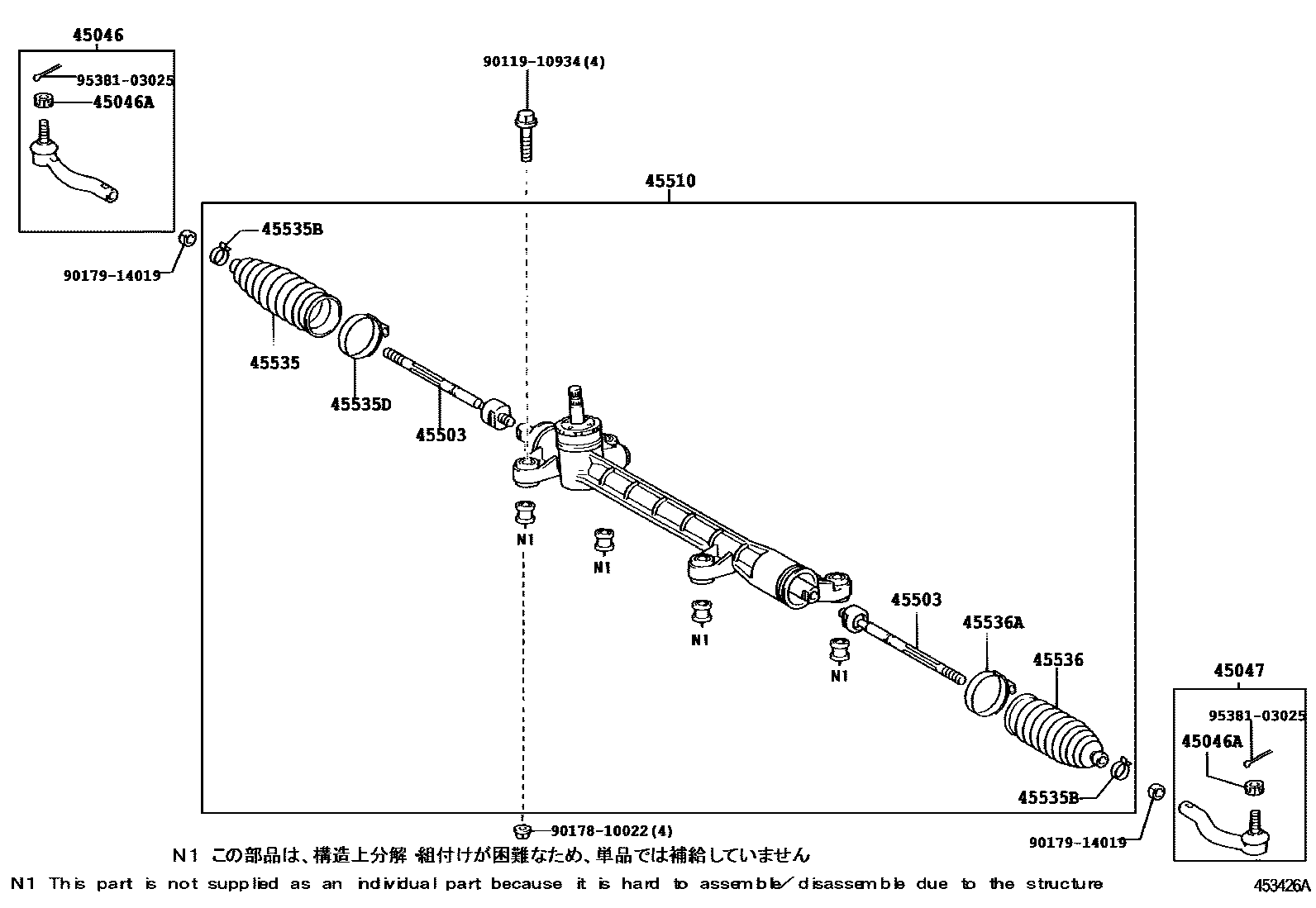

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1

45046END SUB-ASSY, TIE ROD, RH

main45046-19265iANE10,ZNE10200301-200508

main45046-29305iZNE14200301-200508

main45047-49025iANE11200508-200903

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iANE1#,ZNE1#200301-200508

45047END SUB-ASSY, TIE ROD, LH

main45046-29305iZNE14200508-200903

main45046-49095iANE11200304-200508

main45047-19115iANE10,ZNE10200301-200508

45503END SUB-ASSY, STEERING RACK

main45503-12130×2iANE10,ZNE10200301-200508

main45503-19265×2iZNE14200301-200508

main45503-29825×2iANE11200508-200903

45510GEAR ASSY, STEERING

main45510-68010iANE10,ZNE10200301-200508

45535BOOT, STEERING RACK, NO.1

main45535-13010iANE11,ZNE14200301-200508

main45535-52060iANE10,ZNE10200508-200903

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19019×2iANE11,ZNE14200508-200903

main90467-19021×2iANE10,ZNE10200508-200903

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main90460-55016iANE11,ZNE14200301-200508

main90460-58008iANE10,ZNE10200301-200508

45536BOOT, STEERING RACK, NO.2

main45535-13010iANE11,ZNE14200508-200903

main45535-52060iANE10,ZNE10200301-200508

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main90460-55016iANE11,ZNE14200301-200508

main90460-58008iANE10,ZNE10200301-200508

9011910934

main90119-10934

9017810022

main90178-10022

9017914019

main90179-14019

9538103025

main95381-03025

14 parts on this diagram · 4 diagrams in section
