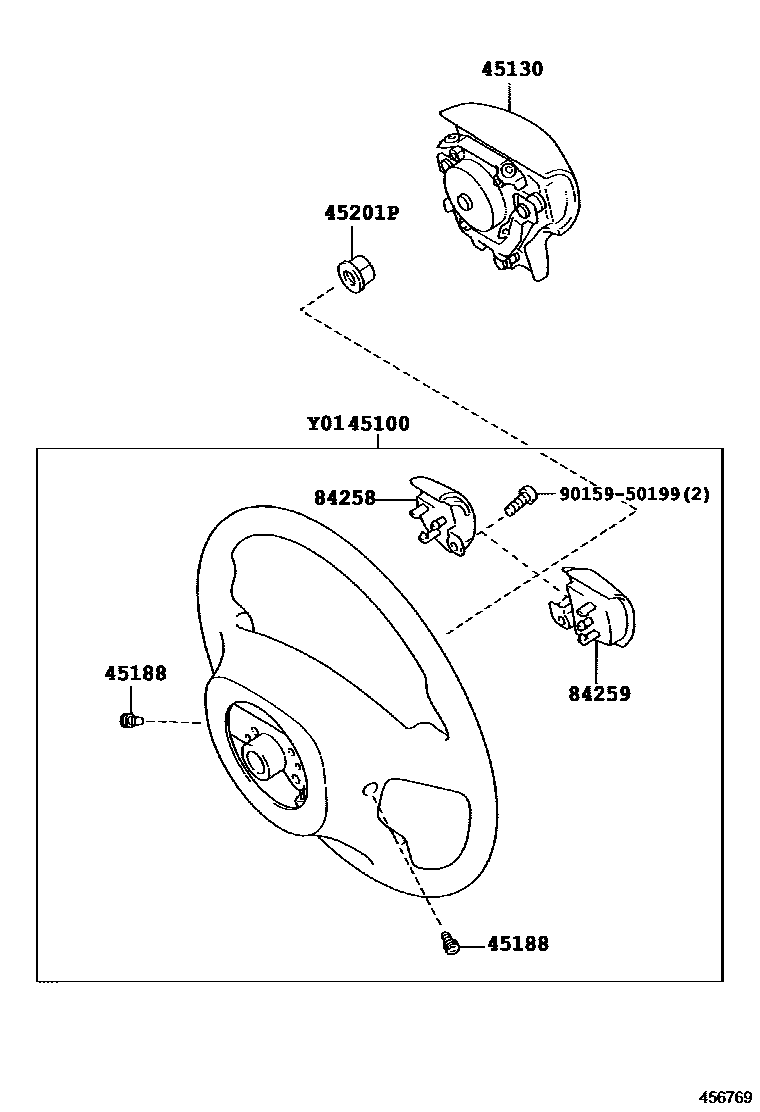

STEERING WHEEL

0001 1 0002 1��(�-���� ����)

45100WHEEL ASSY, STEERING

main45100-68040-C0iANE10; ANE11; ZNE1#200404-200508

main45100-68060-C0iANE11; ZNE1#200508-200903

main45100-68070-C0supersedes 45100-68050-C0iANE10,ZNE1#200301-200404

main45100-68101-C0iANE10; ANE10,ZNE1#200508-200903

main45100-68111-C0iANE11; ZNE1#200508-200903

45130BUTTON ASSY, HORN

main45130-68020-C0iANE1#,ZNE1#200301-200508

BLACK,TRIM1#

45188SCREW, STEERING WHEEL PAD ATTACHING

main45188-60010×2iANE1#,ZNE1#200301-200508

45201PNUT, STEERING WHEEL SET

main90179-12071iANE1#,ZNE1#200508-200903

84258COVER, STEERING PAD, RH

main84258-68020-B1iANE1#,ZNE1#200301-200508

GRAY METALLIC,TRIM1#

84259COVER, STEERING PAD, LH

main84259-68010-B1iANE1#,ZNE1#200301-200508

GRAY METALLIC,TRIM1#

9015950199

main90159-50199

7 parts on this diagram · 2 diagrams in section
