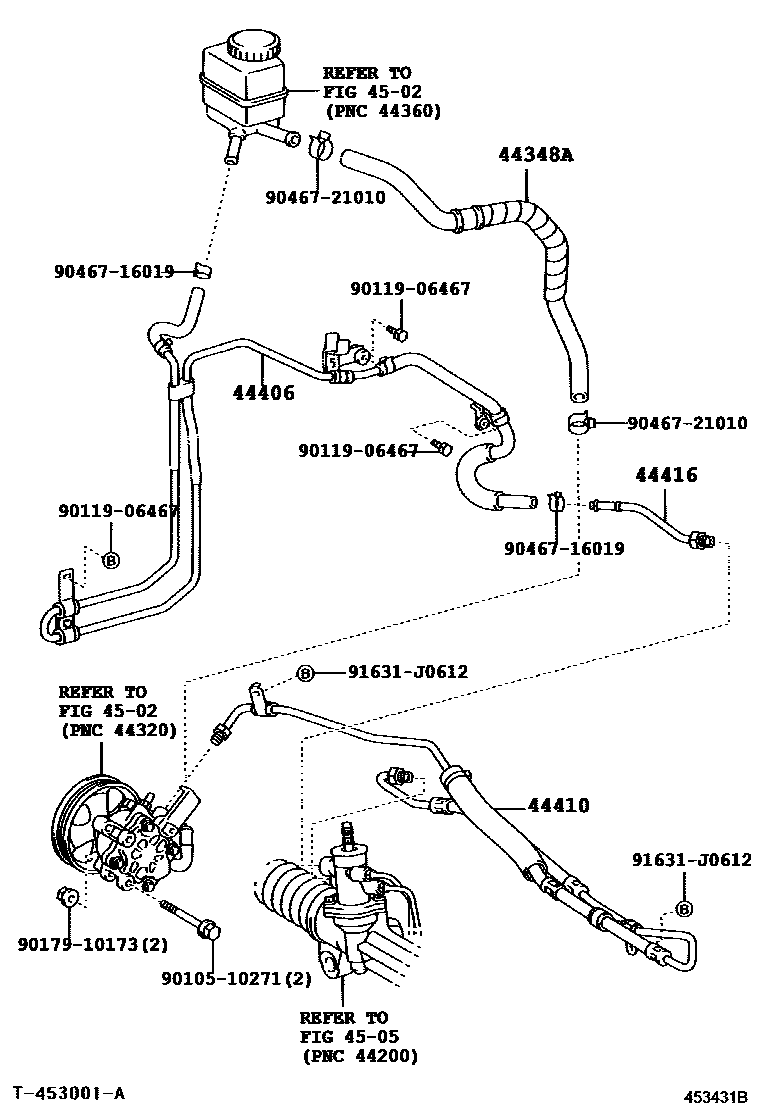

POWER STEERING TUBE

0001 1 0002 1

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-20630iZNE14200301-200508

main44348-20640iANE11200304-200508

44406TUBE SUB-ASSY, RETURN

main44406-20840iANE11200304-200508

main44406-20850iZNE14200301-200508

44410TUBE ASSY, PRESSURE FEED

main44410-2B340iANE11200508-200903

main44410-2B400iZNE14200301-200508

main44410-2B401iZNE14200601-200903

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-20250iANE11200508-200903

main44416-20260iZNE14200301-200508

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

9010510271

main90105-10271

9011906467

main90119-06467

9017910173

main90179-10173

9046716019

main90467-16019

9046721010

main90467-21010

91631J0612

main91631-J0612

12 parts on this diagram · 2 diagrams in section
