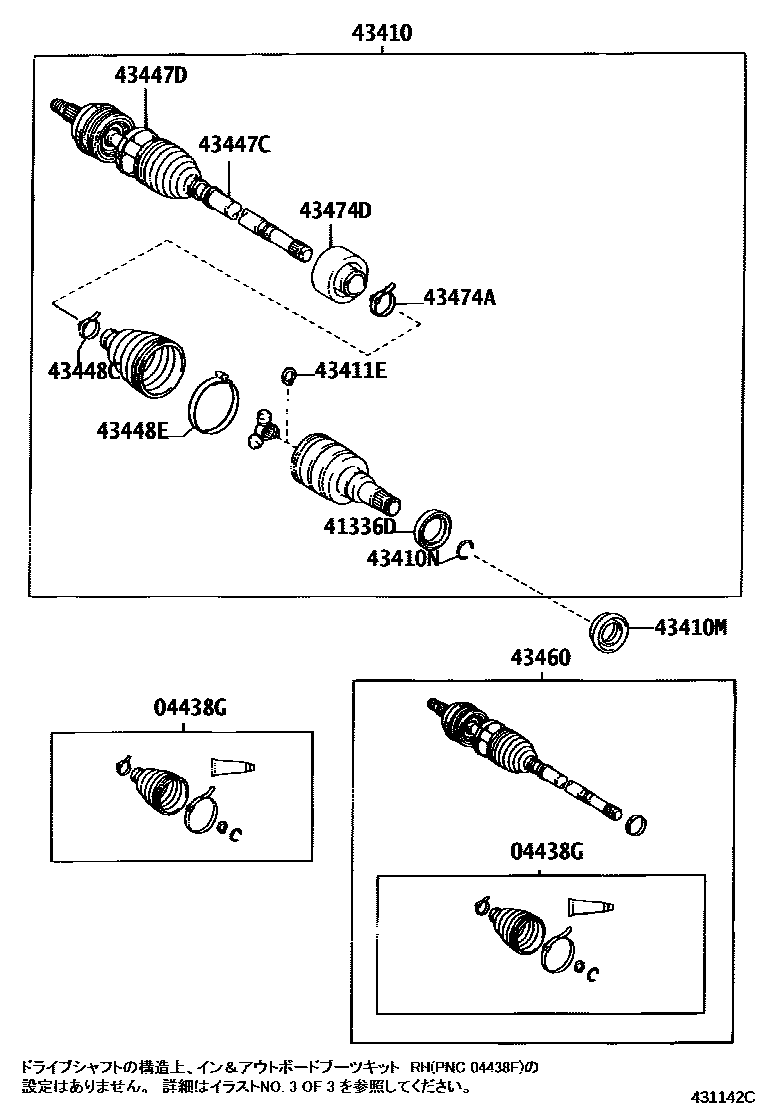

FRONT DRIVE SHAFT

0001 1��� 0002 1��� 0003 1 0004 1��� 0005 1��� 0006 1��� 0007 1��� 0008 1��� 0009 1���

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04438-42091iANE1#200304-200409

main04438-42180iANE1#200409-200903

main04438-42200iZNE14200301-200903

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-12060iZNE10200301-200903

main41336-20050iANE1#200304-200903

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-12531iZNE14200301-200903

main43410-12670iZNE10200301-200903

main43410-21070iANE11200304-200903

main43410-42100iANE10200304-200903

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-35045iZNE10200301-200501

main90311-35050iANE1#200408-200903

main90311-35055iZNE10200502-200903

main90316-28003iZNE14200301-200903

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90520-33008iANE1#,ZNE14200301-200903

main90521-27005iZNE10200301-200903

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-28010iANE1#200304-200903

main90520-22005iZNE1#200301-200903

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-12150iZNE1#200301-200903

main42345-20040iANE1#200304-200903

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-12140iZNE1#200301-200903

main42345-28020iANE1#200304-200903

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-42010iANE1#200304-200903

main90949-01078iZNE1#200301-200903

main90949-01559iANE1#200304-200903

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-12160iANE1#,ZNE1#200301-200903

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-39126iZNE14200301-200903

main43460-80004iZNE10200301-200903

main43470-49146iANE11200304-200903

main43470-80066iANE10200304-200903

43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)

main42345-14010iZNE10200301-200903

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-12120iZNE10200301-200903

13 parts on this diagram · 9 diagrams in section
