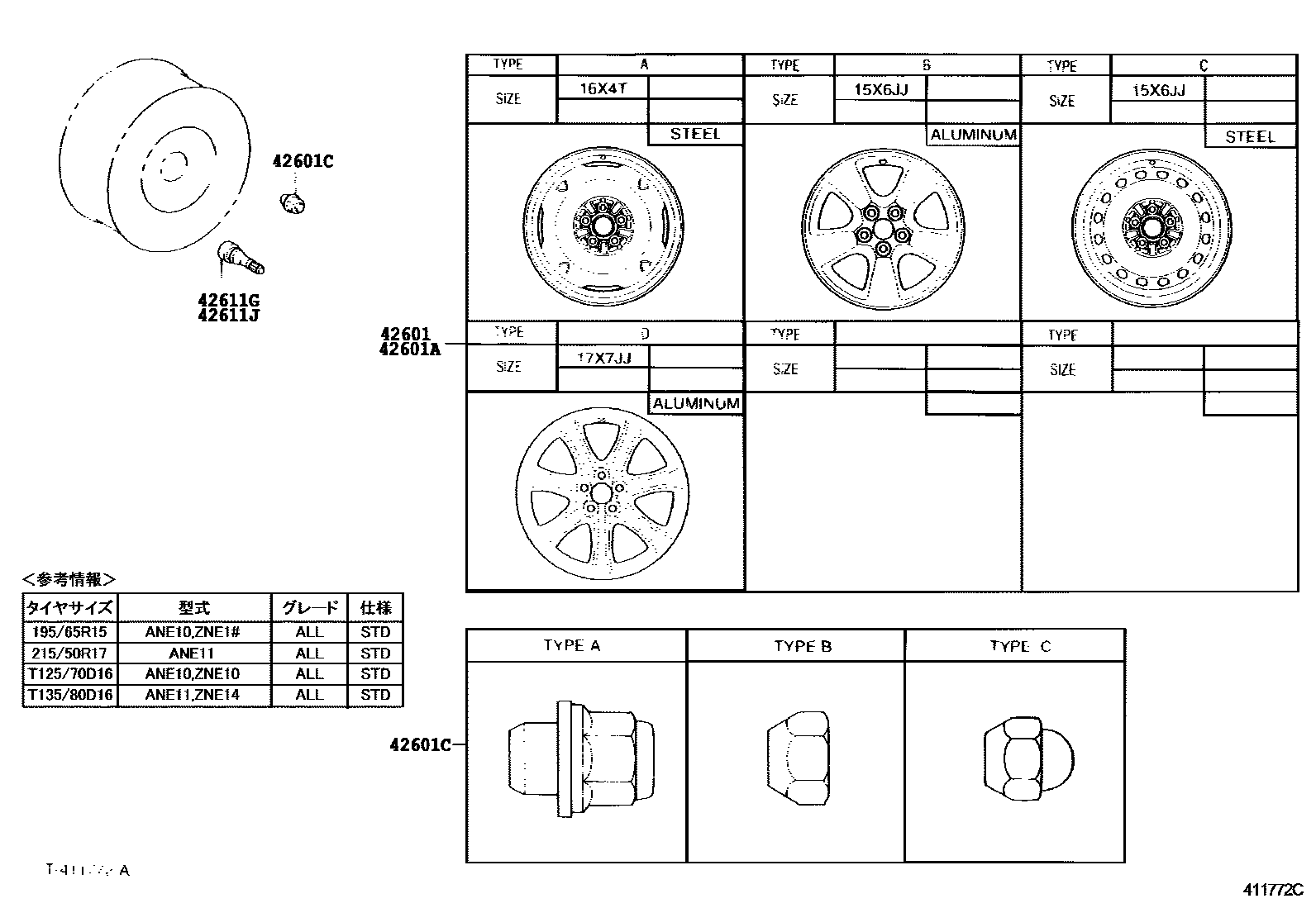

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601WHEEL, DISC

main42611-68020×4iANE11200304-200508

main42611-68070×4iANE11200508-200903

main42611-68010×4supersedes 42611-32330iANE10,ZNE1#200301-200508

main42611-68060×4supersedes 42611-32330iANE10,ZNE1#200508-200903

42601AWHEEL, DISC (FOR SPARE)

main42611-20840iANE1#,ZNE1#200301-200508

42601CNUT, HUB (FOR AXLE)

main90942-01033×20supersedes 90942-01021iANE11200304-200508

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iANE1#,ZNE1#200301-200508

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iANE1#,ZNE1#200301-200508

5 parts on this diagram · 3 diagrams in section
