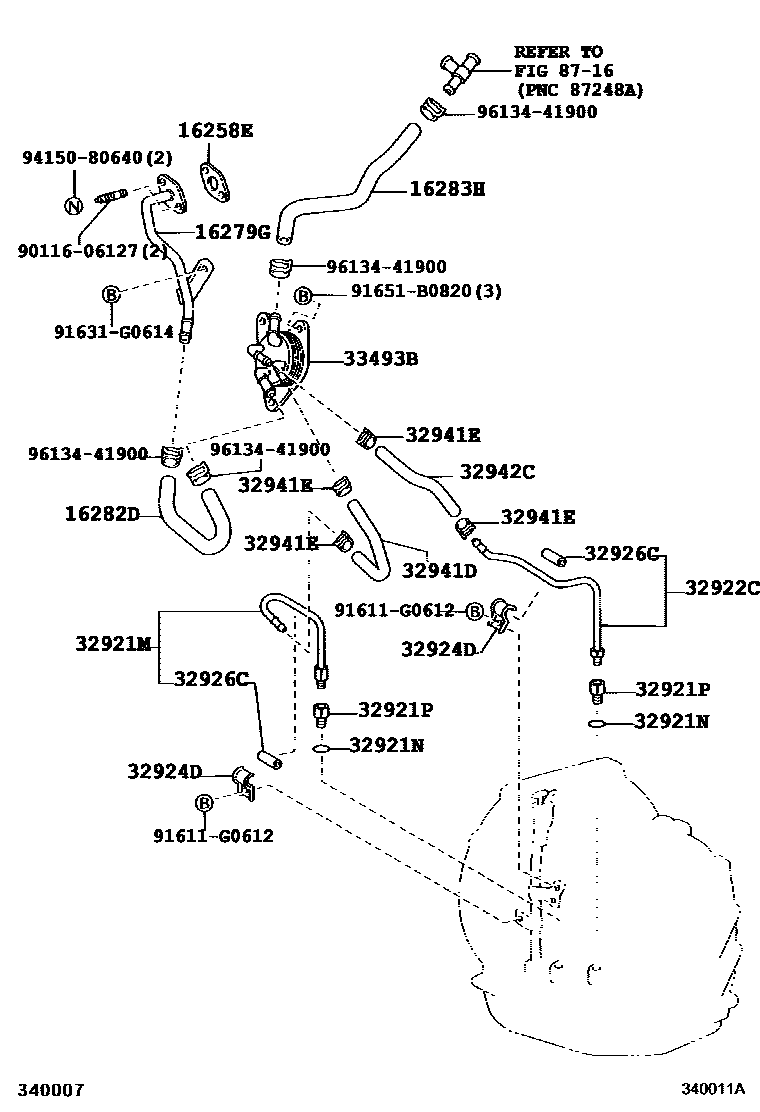

OIL COOLER & TUBE(CVT)

0001 1K110 0002 1K111

16258EGASKET(FOR WATER BY-PASS PIPE)

main16258-28021i1AZFSE..ANE1#200304-200308

main16258-28040i1AZFSE..ANE1#200308-200508

16279GPIPE, WATER BY-PASS, NO.3

main16279-28020i1AZFSE..ANE1#200304-200508

16282DHOSE, WATER BY-PASS, NO.5

main16282-28020i1AZFSE..ANE1#200304-200508

main16282-28050i1AZFSE..ANE1#200508-200903

16283HHOSE, WATER BY-PASS, NO.6

main16283-28020i1AZFSE..ANE1#200304-200508

main16283-28050i1AZFSE..ANE1#200508-200903

32921MTUBE, OIL COOLER INLET, NO.1

main32921-20540iANE1#200304-200508

32921NRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189×2iANE1#200304-200508

32921PUNION(FOR OIL COOLER TUBE)

main90404-13004iANE1#200508-200903

main90404-16031×2iANE1#200304-200508

main90407-13009iANE1#200508-200903

32922CTUBE, OIL COOLER OUTLET, NO.1

main32922-20520iANE1#200304-200508

32924DCLAMP, OIL COOLER TUBE, NO.2

main32924-20090×2iANE1#200304-200508

32926CCUSHION, OIL COOLER TUBE(CVT)

main32926-20010×2iANE1#200304-200508

32941DHOSE, OIL COOLER INLET

main32941-20230iANE1#200304-200508

main32943-44010iANE1#200508-200903

32941ECLIP(FOR OIL COOLER TUBE)

main90466-16004×2iANE1#200902-200903

main90467-16022×2iANE1#200508-200901

32942CHOSE, OIL COOLER OUTLET, NO.1

main32942-20080iANE1#200304-200508

main32943-44021iANE1#200508-200903

33493BCOOLER, OIL

main33493-20030iANE1#200304-200508

main33493-44030iANE1#200508-200903
