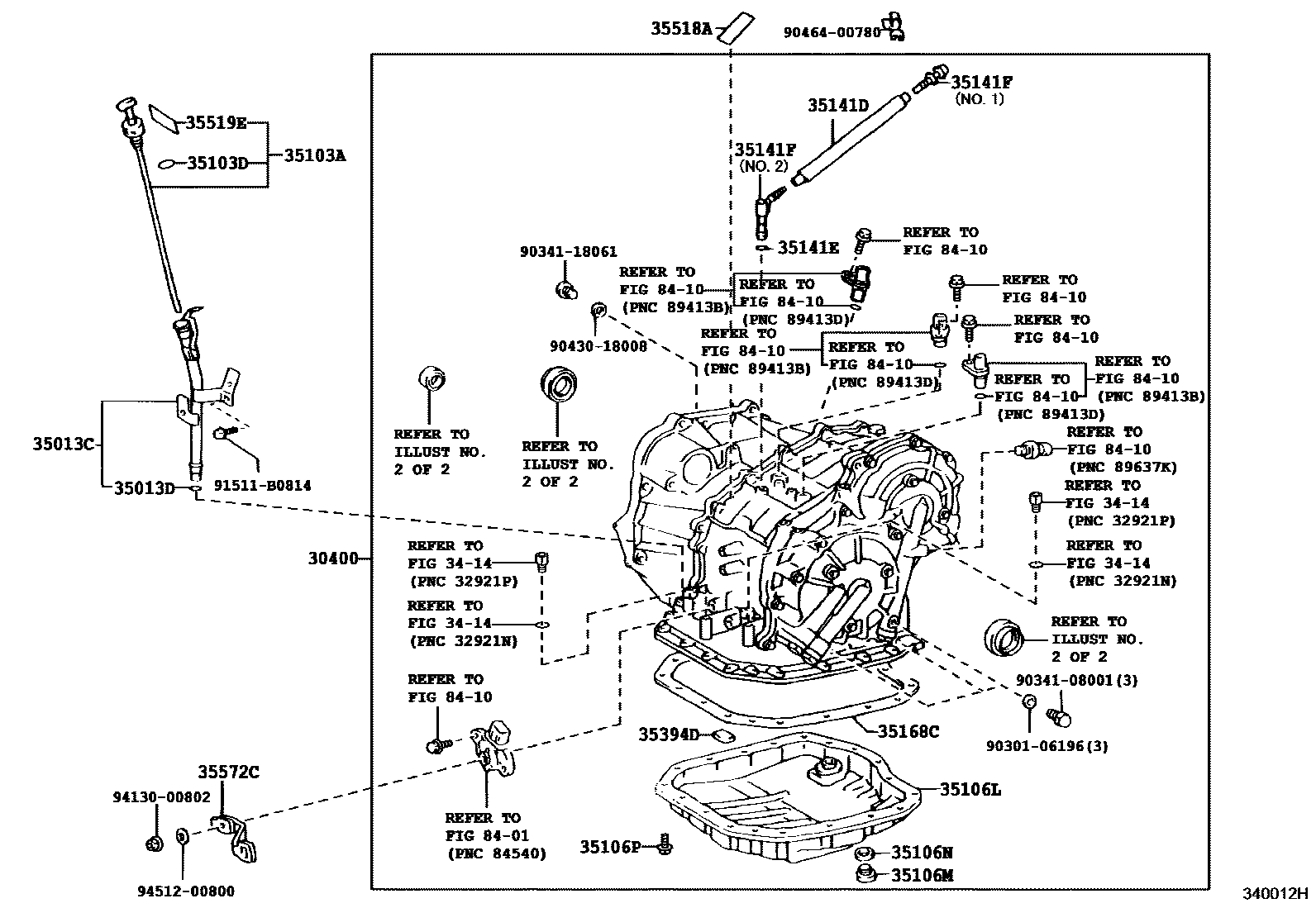

TRANSAXLE ASSY(CVT)

0001 1K110 0002 1K110 0003 1K111 0004 1K111 0005 1K111

30400TRANSAXLE ASSY, CONTINUOUSLY VARIABLE

main30400-63011iANE1#200304-200508

main30400-68010iANE1#200508-200903

3414OIL COOLER & TUBE(CVT)

→ Go to FIG 34-14

35013CTUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-20830iANE1#200304-200508

35013DRING, O(FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iANE1#200304-200508

35103AGAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-63010iANE1#200304-200508

35103DRING, O(FOR TRANSMISSION OIL LEVEL GAGE)

main90301-09009iANE1#200304-200508

35106LPAN SUB-ASSY, TRANSAXLE OIL(CVT)

main35106-44020iANE1#200508-200808

main35106-44021iANE1#200808-200903

main35106-63010iANE1#200304-200508

35106MPLUG SUB-ASSY, DRAIN(CVT)

main90341-18016iANE1#200304-200508

35106NGASKET, DRAIN PLUG(CVT)

main90430-18008iANE1#200304-200508

35106PBOLT(FOR TRANSAXLE OIL PAN)

main90119-06173×19iANE1#200304-200508

35141DHOSE(FOR BREATHER PLUG)

main35121-63010iANE1#200508-200903

35141ERING, O(FOR BREATHER PLUG)

main90301-06005iANE1#200304-200508

35141FPLUG, BREATHER, NO.1(CVT)

main90930-03149iANE1#200508-200903

main90930-03164iANE1#200304-200508

35168CGASKET, TRANSAXLE OIL PAN(CVT)

main35168-20010iANE1#200808-200903

main35168-63010iANE1#200304-200508

35394DMAGNET, OIL CLEANER(CVT)

main35394-30011×3iANE1#200304-200508

35518ALABEL, AUTOMATIC TRANSAXLE INFORMATION, NO.2

main35518-63010iANE1#200304-200508

35519ELABEL, AUTOMATIC TRANS INFORMATION

main35519-63010iANE1#200304-200508

35572CLEVER, TRANSMISSION CONTROL SHAFT

main35572-63010iANE1#200304-200508

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

9030106196

main90301-06196

9034108001

main90341-08001

9034118061

main90341-18061

9043018008

main90430-18008

9046400780

main90464-00780

91511B0814

main91511-B0814

9413000802

main94130-00802

9451200800

main94512-00800

28 parts on this diagram · 5 diagrams in section
