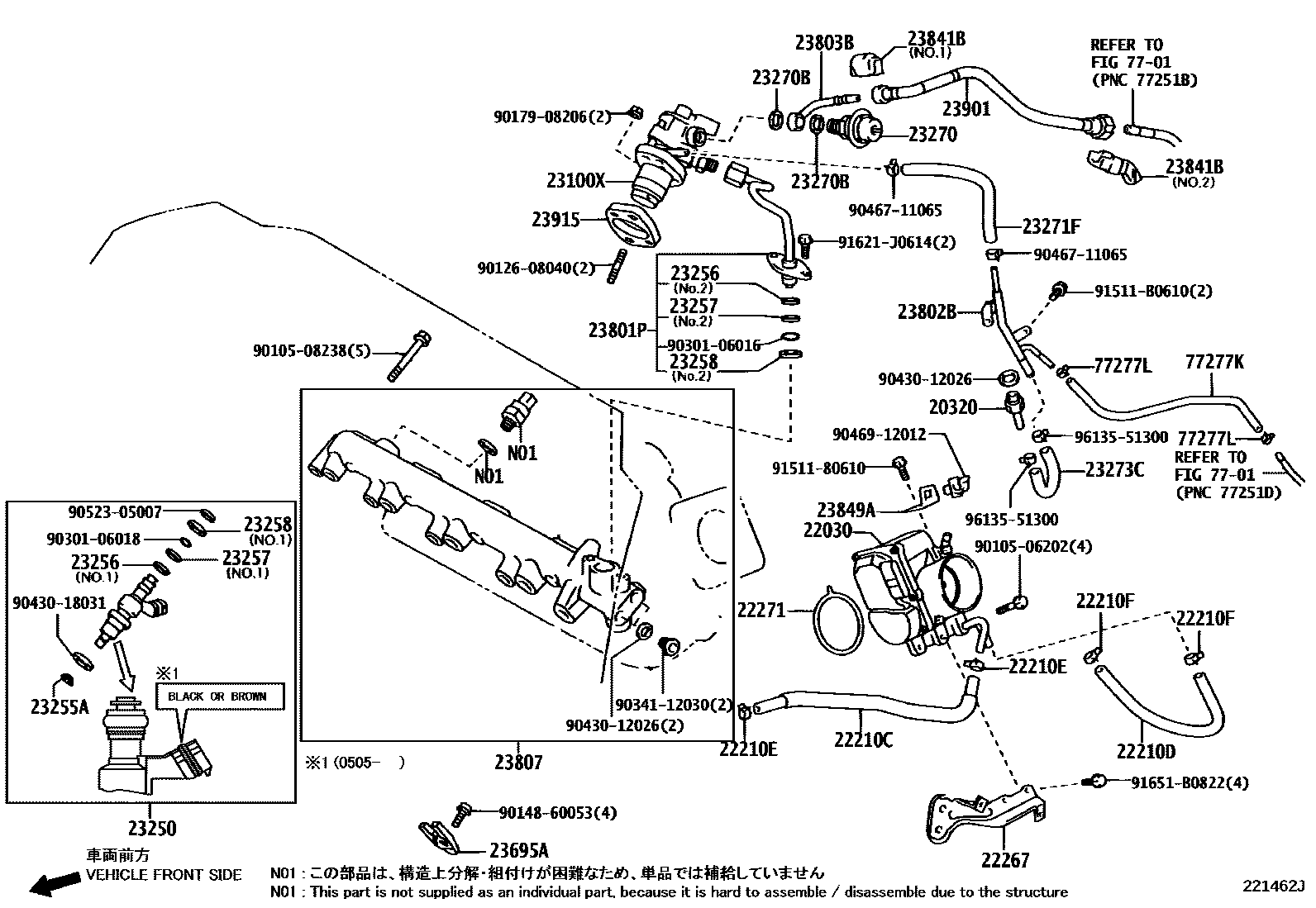

FUEL INJECTION SYSTEM
20320VALVE ASSY, FUEL RELIEF
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22210BODY ASSY, THROTTLE
22210CHOSE, WATER BY-PASS, NO.1
22210DHOSE, WATER BY-PASS, NO.2
22210ECLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)
22210FCLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)
22267BRACKET, THROTTLE BODY
22271GASKET, THROTTLE BODY
23100XPUMP ASSY, FUEL (ENGINE ROOM SIDE)
23250INJECTOR ASSY, FUEL
MARK BLACK
MARK BROWN
BLACK
BROWN
23255ASEAL, FUEL INJECTOR
23256RING, FUEL INJECTOR BACK-UP, NO.1
23257RING, FUEL INJECTOR BACK-UP, NO.2
23258RING, FUEL INJECTOR BACK-UP, NO.3
23270DAMPER ASSY, FUEL PRESSURE PULSATION
23270BGASKET(FOR PULSATION DAMPER HOSE)
23271FHOSE, FUEL
23273CHOSE, FUEL, NO.2
23695ACLAMP, NOZZLE HOLDER
23801PPIPE SUB-ASSY, FUEL, NO.1
23802BPIPE SUB-ASSY, FUEL, NO.2
23803BPIPE SUB-ASSY, FUEL, NO.3
23807PIPE SUB-ASSY, FUEL DELIVERY
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
23849ASUPPORT, FUEL PIPE
23901TUBE SUB-ASSY, FUEL
23915INSULATOR, FUEL PUMP
7701FUEL TANK & TUBE
77277KHOSE, FUEL(FOR RETURN HOSE)
77277LCLIP, HOSE(FOR RETURN HOSE)
9010506202
main90105-06202
9010508238
main90105-08238
9012608040
main90126-08040
9014860053
main90148-60053
9017908206
main90179-08206
9030106016
main90301-06016
9030106018
main90301-06018
9034112030
main90341-12030
9043012026
main90430-12026
9043018031
main90430-18031
9046711065
main90467-11065
9046912012
main90469-12012
9052305007
main90523-05007
9151180610
main91511-80610
91511B0610
main91511-B0610
91621J0614
main91621-J0614
91651B0822
main91651-B0822
9613551300
main96135-51300
49 parts on this diagram · 5 diagrams in section
