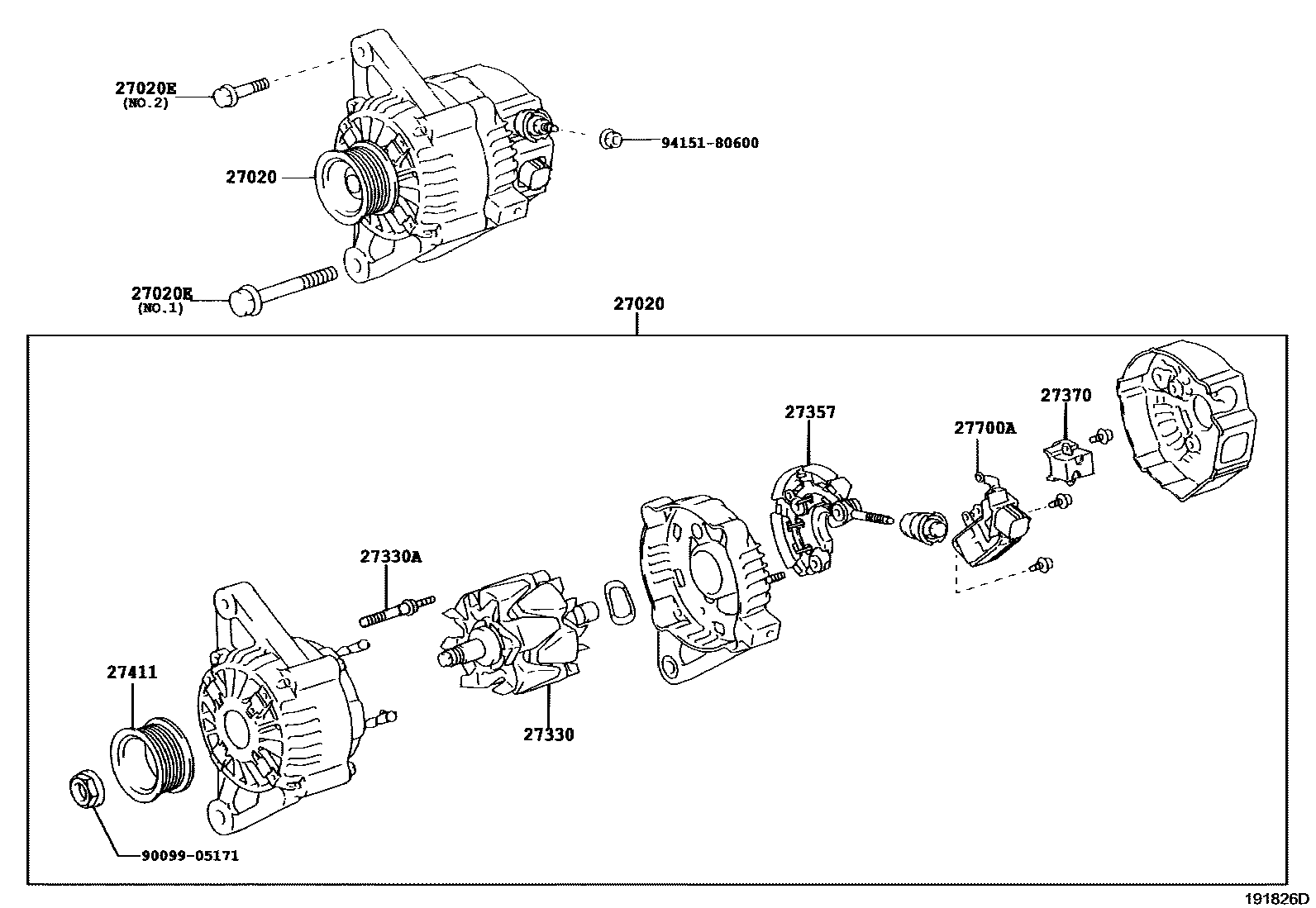

ALTERNATOR

0001 112V 80A 0002 112V 80A 0003 112V 100A

27020ALTERNATOR ASSY

main27060-22230i1ZZFE..ZNE1#200301-200903

sub27060-22231

main27060-28220i1AZFSE..ANE1#200304-200901

sub27060-28221

main27060-28221i1AZFSE..ANE1#200902-200903

27020EBOLT(FOR ALTERNATOR)

main90105-10075i1ZZFE..ZNE1#200301-200903

main91511-80830i1ZZFE..ZNE1#200301-200903

main91511-J0840i1AZFSE..ANE1#200304-200607

main91512-81085i1AZFSE..ANE1#200304-200903

main91551-80840i1AZFSE..ANE1#200608-200903

27330ROTOR ASSY, ALTERNATOR

main27330-62220i1AZFSE,1ZZFE..ANE1#,ZNE1#200301-200903

sub27330-30130

27330ABEARING(FOR ALTERNATOR ROTOR)

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-22200i1AZFSE,1ZZFE..ANE1#,ZNE1#200301-200903

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-23120i1AZFSE..ANE1#200304-200903

main27370-75060i1ZZFE..ZNE1#200301-200903

27411PULLEY, ALTERNATOR

main27411-22210i1ZZFE..ZNE1#200301-200903

main27411-28160i1AZFSE..ANE1#200304-200903

27700AREGULATOR ASSY, GENERATOR

main27700-22050i1ZZFE..ZNE1#200301-200903

main27700-28080i1AZFSE..ANE1#200304-200903

9009905171

main90099-05171

9415180600

main94151-80600

10 parts on this diagram · 3 diagrams in section
