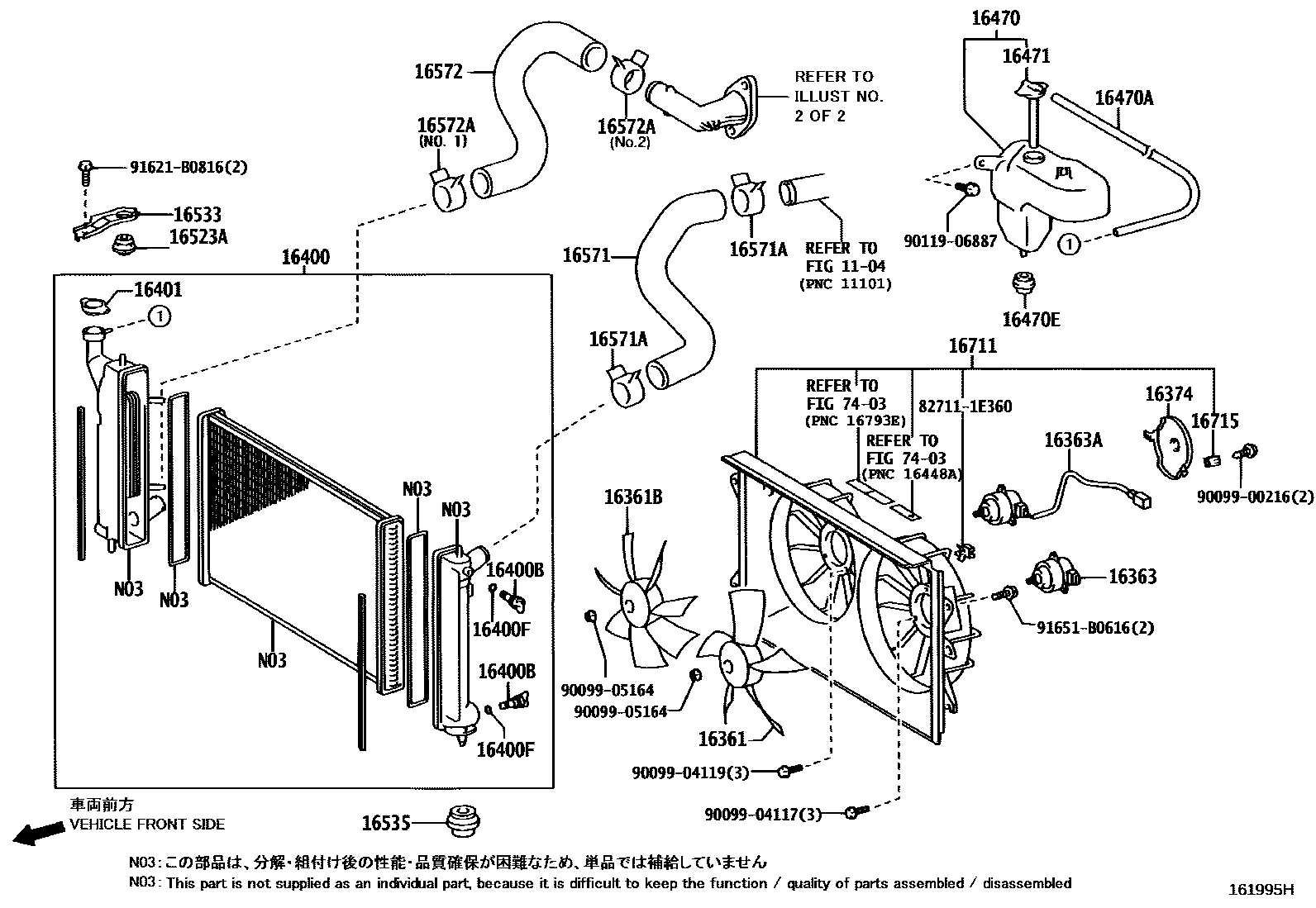

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0007 1

1104

16361FAN

main16361-21060i1ZZFE..ZNE10200301-200903

main16361-22050i1ZZFE..ZNE14200301-200401

main16361-22051i1ZZFE..ZNE14200401-200903

16361BFAN, NO.2

main16361-22090i1ZZFE..ZNE14200301-200401

sub16361-22091

main16361-22091i1ZZFE..ZNE14200401-200903

main16361-28080i1AZFSE..ANE1#200304-200401

main16361-28081i1AZFSE..ANE1#200401-200903

16363MOTOR, COOLING FAN

main16363-23010i1AZFSE..ANE1#200301-200903

main16363-23020i1ZZFE..ZNE10200301-200304

main16363-28150i1ZZFE..ZNE10200305-200903

16363AMOTOR, COOLING FAN, NO.2

main16363-22080i1ZZFE..ZNE14200301-200903

main16363-28070i1AZFSE..ANE1#200304-200305

sub16363-28210

main16363-28210i1AZFSE..ANE1#200305-200903

sub16363-37090

16374INSULATOR, COOLING FAN MOTOR

main16366-28120i1AZFSE..ANE1#200304-200903

16400RADIATOR ASSY

main16400-22170i1ZZFE..ZNE14200301-200903

main16400-22190i1ZZFE..ZNE10200301-200903

main16400-28350i1AZFSE..ANE1#200304-200903

16400BPLUG, RADIATOR DRAIN COCK

main16417-15210i1ZZFE..ZNE1#200301-200903

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16418-15520i1ZZFE..ZNE1#200301-200903

16401CAP SUB-ASSY, RADIATOR

main16401-15520i1AZFSE..ANE1#200301-200903

16470TANK ASSY, RADIATOR RESERVE

main16470-22060i1ZZFE..ZNE1#200301-200903

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main16472-22060i1AZFSE..ANE11200304-200903

main90445-12049i1AZFSE..ANE10200301-200903

sub90445-12080

16470EGROMMET, RADIATOR RESERVE TANK HOSE

main90480-18010i1ZZFE..ZNE1#200301-200903

16471CAP SUB-ASSY, RESERVE TANK

main16405-22040i1ZZFE..ZNE1#200301-200903

16523ACUSHION, RADIATOR SUPPORT

main16523-74010i1AZFSE..ANE1#200301-200903

16533SUPPORT, RADIATOR, UPPER

main16533-22030i1AZFSE..ANE1#200301-200903

16535SUPPORT, RADIATOR, LOWER

main16535-20010i1ZZFE..ZNE1#200301-200903

main16535-28030i1AZFSE..ANE1#200304-200903

16571HOSE, RADIATOR, INLET

main16571-22130i1ZZFE..ZNE1#200301-200903

main16571-28070i1AZFSE..ANE1#200304-200903

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90466-37002i1ZZFE..ZNE1#200301-200703

main90466-37002i1AZFSE..ANE1#200304-200508

main90467-34004i1ZZFE..ZNE1#200301-200703

main96136-43901i1ZZFE..ZNE1#200704-200903

main96136-44301i1AZFSE..ANE1#200704-200903

16572HOSE, RADIATOR, OUTLET

main16572-22090i1ZZFE..ZNE1#200301-200903

main16572-28040i1AZFSE..ANE1#200304-200903

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90466-37002i1AZFSE..ANE1#200301-200703

main90467-37005i1ZZFE..ZNE1#200301-200704

main96136-44301i1AZFSE..ANE1#200704-200903

16711SHROUD, FAN

main16711-22070i1ZZFE..ZNE14200301-200903

main16711-22120i1ZZFE..ZNE10200301-200605

sub16711-22121

main16711-22121i1ZZFE..ZNE10200606-200903

main16711-28170i1AZFSE..ANE1#200304-200903

16715BRACKET, FAN SHROUD

main88688-18030i1AZFSE..ANE1#200304-200903

7403

827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E360

9009900216

main90099-00216

9009904117

main90099-04117

9009904119

main90099-04119

9009905164

main90099-05164

9011906887

main90119-06887

91621B0816

main91621-B0816

91651B0616

main91651-B0616

32 parts on this diagram · 6 diagrams in section
