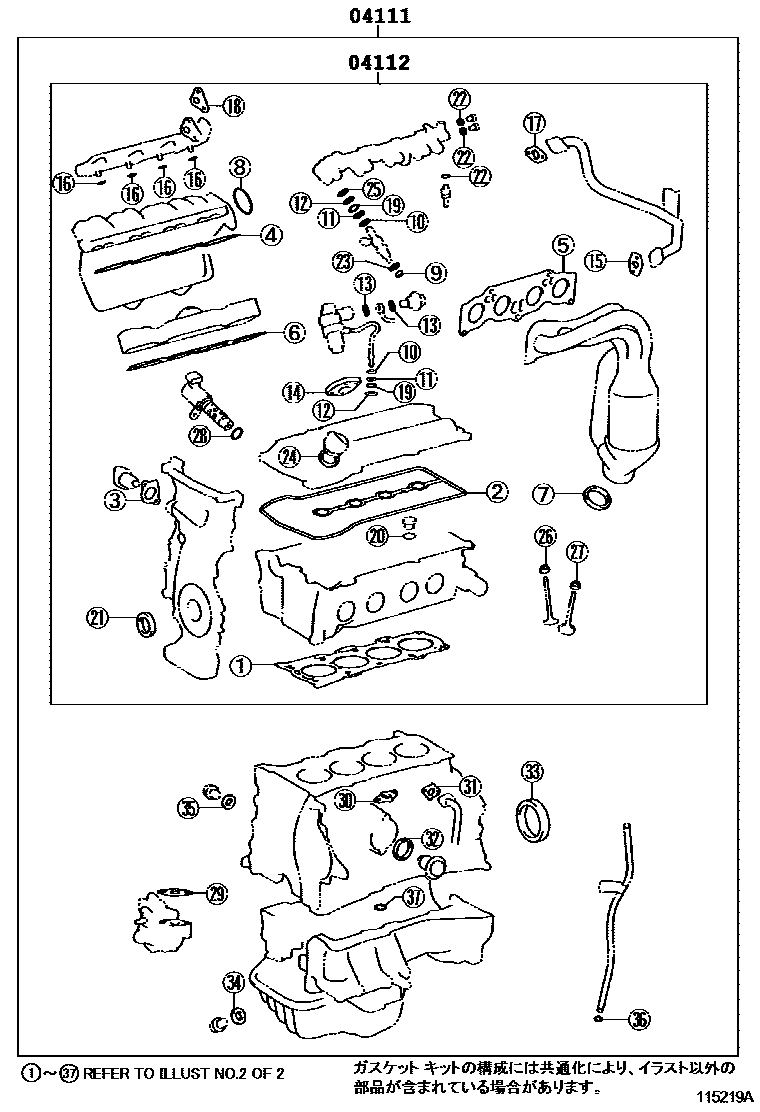

ENGINE OVERHAUL GASKET KIT

0001 1 0002 1 0003 1 0004 1

04111GASKET KIT, ENGINE OVERHAUL

main04111-22131i1ZZFE..ZNE14200301-200302

sub04111-22132

main04111-22132i1ZZFE..ZNE14200302-200311

sub04111-22512

main04111-22151i1ZZFE..ZNE10200301-200302

sub04111-22152

main04111-22152i1ZZFE..ZNE10200302-200311

sub04111-22511

main04111-22511i1ZZFE..ZNE10200311-200508

sub04111-22513

main04111-22512i1ZZFE..ZNE14200311-200508

sub04111-22850

main04111-22840i1ZZFE..ZNE10200508-200806

sub04111-22841

main04111-22841i1ZZFE..ZNE10200806-200903

sub04111-22842

main04111-22850i1ZZFE..ZNE14200508-200806

sub04111-22851

main04111-22851i1ZZFE..ZNE14200806-200903

main04111-28160i1AZFSE..ANE1#200304-200311

sub04111-28522

main04111-28391i1AZFSE..ANE1#200311-200508

sub04111-28392

main04111-28521i1AZFSE..ANE1#200508-200710

sub04111-28522

main04111-28522i1AZFSE..ANE1#200710-200806

sub04111-28523

sub90910-02162

main04111-28523i1AZFSE..ANE1#200806-200903

sub04111-28524

04112GASKET KIT, ENGINE VALVE GRIND

main04112-22131i1ZZFE..ZNE14200301-200302

sub04112-22132

main04112-22132i1ZZFE..ZNE14200302-200311

sub04112-22482

main04112-22151i1ZZFE..ZNE10200301-200302

sub04112-22152

main04112-22152i1ZZFE..ZNE10200302-200311

sub04112-22481

main04112-22481i1ZZFE..ZNE10200311-200508

main04112-22482i1ZZFE..ZNE14200311-200508

sub04112-22700

main04112-22690i1ZZFE..ZNE10200508-200903

main04112-22700i1ZZFE..ZNE14200508-200903

main04112-28160i1AZFSE..ANE1#200304-200311

sub04112-28371

main04112-28371i1AZFSE..ANE1#200311-200508

sub04112-28372

main04112-28481i1AZFSE..ANE1#200508-200710

sub04112-28482

main04112-28482i1AZFSE..ANE1#200710-200806

sub04112-28483

sub90910-02162

main04112-28483i1AZFSE..ANE1#200806-200903

sub04112-28484

2 parts on this diagram · 4 diagrams in section
