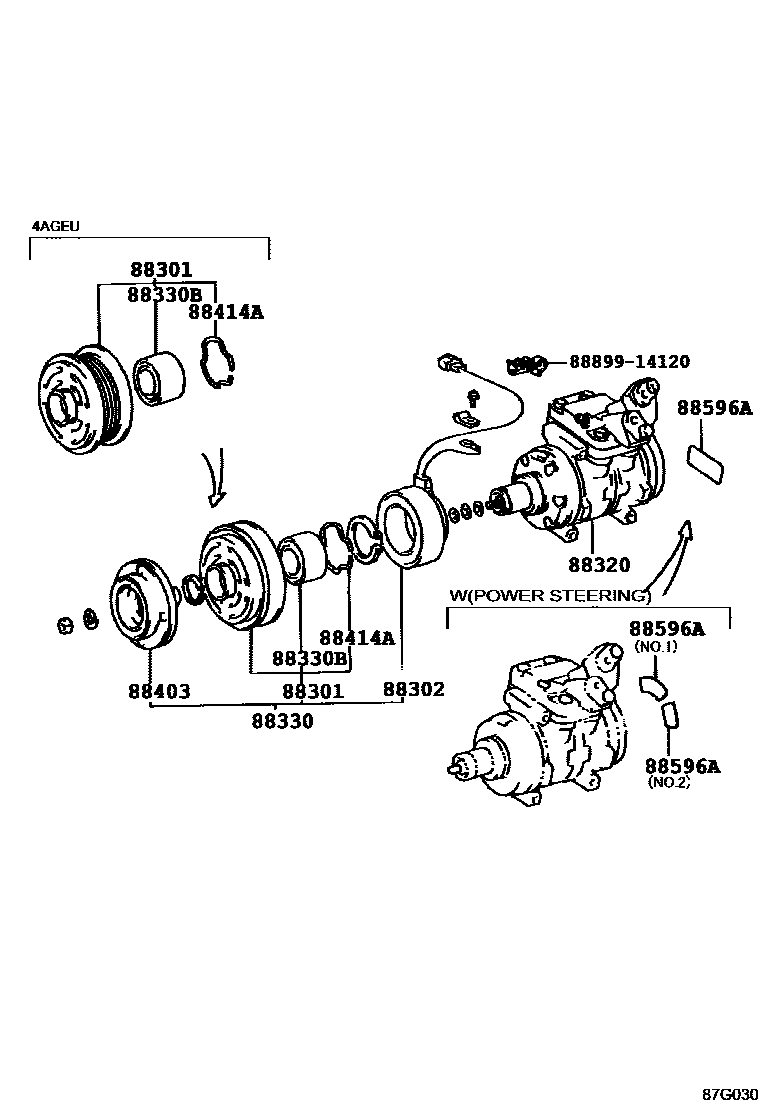

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-12110iAE86198305-198704

main88412-14030iAE85198305-198704

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-12110iAE86198505-198608

main88411-14060iAE85198305-198704

main88411-22070iAE86198305-198505

main88411-22100iAE86198608-198704

88320COMPRESSOR ASSY, COOLER

main88320-12270iAE86..APX,GT198305-198505

W/POWER STEERING

main88320-12300iAE8#198305-198505

main88320-12400iAE86..APX,GT198505-198704

W/POWER STEERING

main88320-12420iAE85198505-198704

main88320-12450iAE86198505-198704

88330CLUTCH ASSY, MAGNET

main88410-12150iAE86198305-198505

main88410-12200iAE86198505-198704

main88410-14110iAE85198305-198704

88330BBEARING, MAGNET CLUTCH

main90099-10133iAE86198305-198704

main90099-10135iAE85198305-198704

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-12030iAE86198608-198704

main88403-12040iAE85198608-198704

main88403-14030iAE86198305-198608

main88403-14040iAE85198305-198608

88414ARING, SHIELD SNAP

main90099-07094iAE86198505-198704

main90099-07114iAE8#198305-198505

88596APLATE, CAUTION

main88356-12010iAE8#198608-198704

main88356-12020iAE86..APX,GT198608-198704

NO.1,W/PS

main88356-12030iAE86..APX,GT198608-198704

NO.2,W/PS

8889914120COVER, EVAPORATOR

main88899-14120

9 parts on this diagram · 2 diagrams in section
