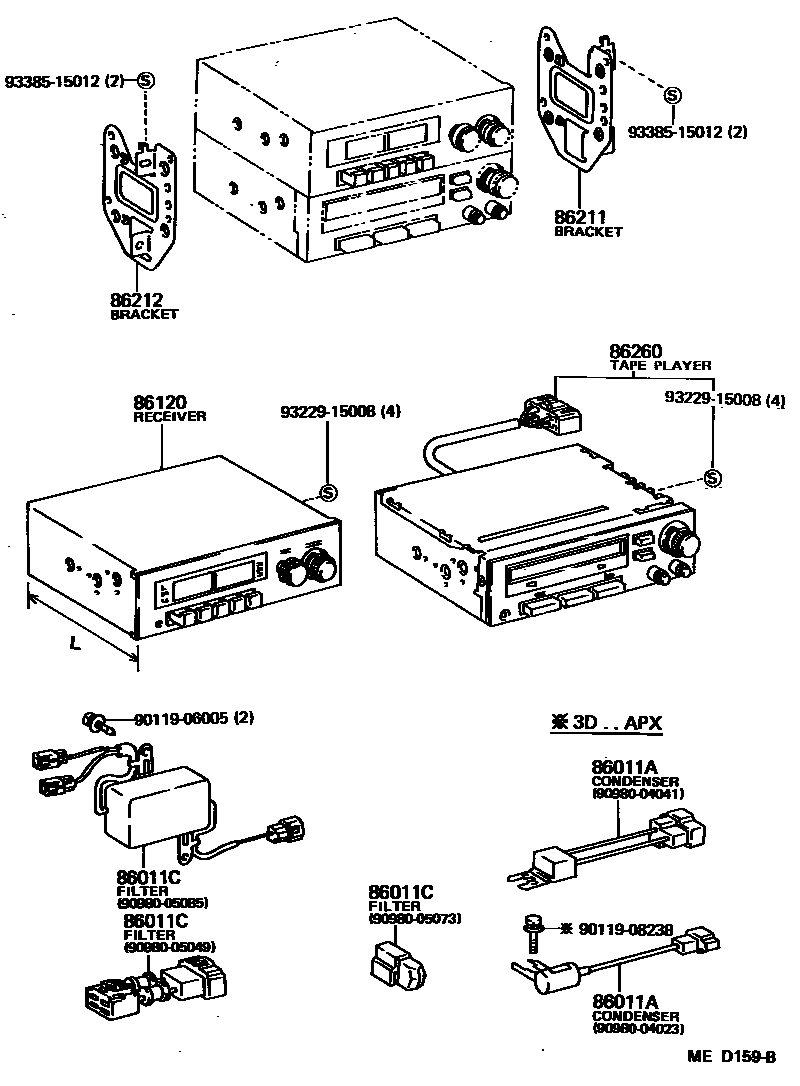

RADIO RECEIVER & AMPLIFIER & CONDENSER
86011ACONDENSER, RADIO SETTING
RH,COWL SIDE; VOLTAGE REGULATOR
IGINITION COIL
86011CFILTER, NOISE
86120RECEIVER ASSY, RADIO
AM,5-PB,L=100
AM,5-PB,L=60
*19,L=130
*18
*35
86211BRACKET, RADIO, NO.1
86212BRACKET, RADIO, NO.2
86260TAPE PLAYER ASSY
W/O DOLBY
W/DOLBY
9011906005
main90119-06005
9011908238
main90119-08238
9098004023
main90980-04023
9098004041
main90980-04041
9098005049
main90980-05049
9098005073
main90980-05073
9098005085
main90980-05085
9322915008
main93229-15008
9338515012
main93385-15012
15 parts on this diagram · 1 diagram in section
