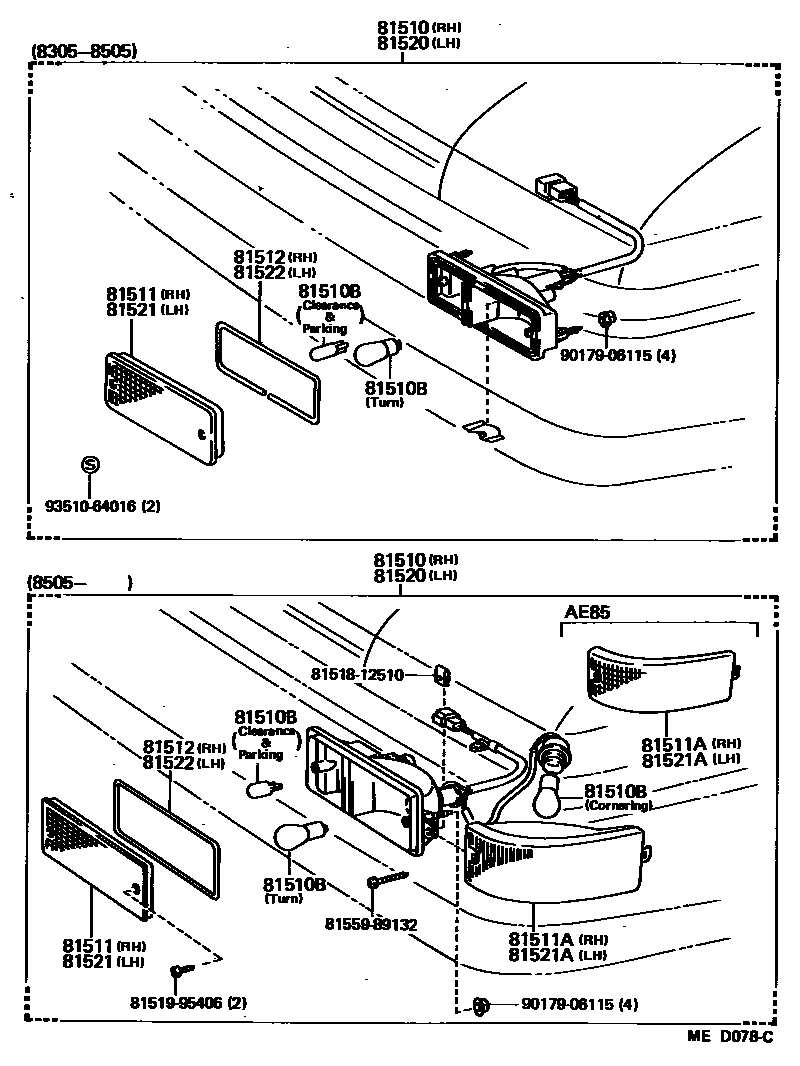

FRONT TURN SIGNAL LAMP

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-80002iAE8#198305-198505

main81510-80025iAE85198505-198704

main81510-80026iAE86198505-198509

main81510-80038iAE86198509-198704

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-13029×2iAE86198505-198509

main90981-13037×2iAE86198509-198704

main99132-11230×2iAE8#198305-198704

main99132-12050×2iAE8#198305-198704

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-22221iAE8#198305-198505

main81514-12510iAE8#198505-198704

81511ALENS,CORNERING LAMP,RH

main81511-12500iAE85198505-198704

main81511-12510iAE86198505-198509

main81511-12511iAE86198509-198704

81512GASKET, FRONT TURN SIGNAL LAMP LENS, RH

main81512-12510iAE8#198505-198704

main81512-14140iAE8#198305-198505

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-80002iAE8#198305-198505

main81520-80025iAE85198505-198704

main81520-80026iAE86198505-198509

main81520-80038iAE86198509-198704

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-22221iAE8#198305-198505

main81524-12490iAE8#198505-198704

81521ALENS,CORNERING LAMP,LH

main81521-12480iAE85198505-198704

main81521-12490iAE86198505-198509

main81521-12491iAE86198509-198704

81522GASKET, FRONT TURN SIGNAL LAMP LENS, LH

main81512-12510iAE8#198505-198704

main81512-14140iAE8#198305-198505

8151812510SHADE, FRONT TURN SIGNAL LAMP, RH

main81518-12510

8151995406BRACKET, FRONT TURN SIGNAL LAMP, RH

main81519-95406

8155989132MOULDING, REAR COMBINATION LAMP, RH

main81559-89132

9017906115

main90179-06115

9351064016

main93510-64016

14 parts on this diagram · 1 diagram in section
