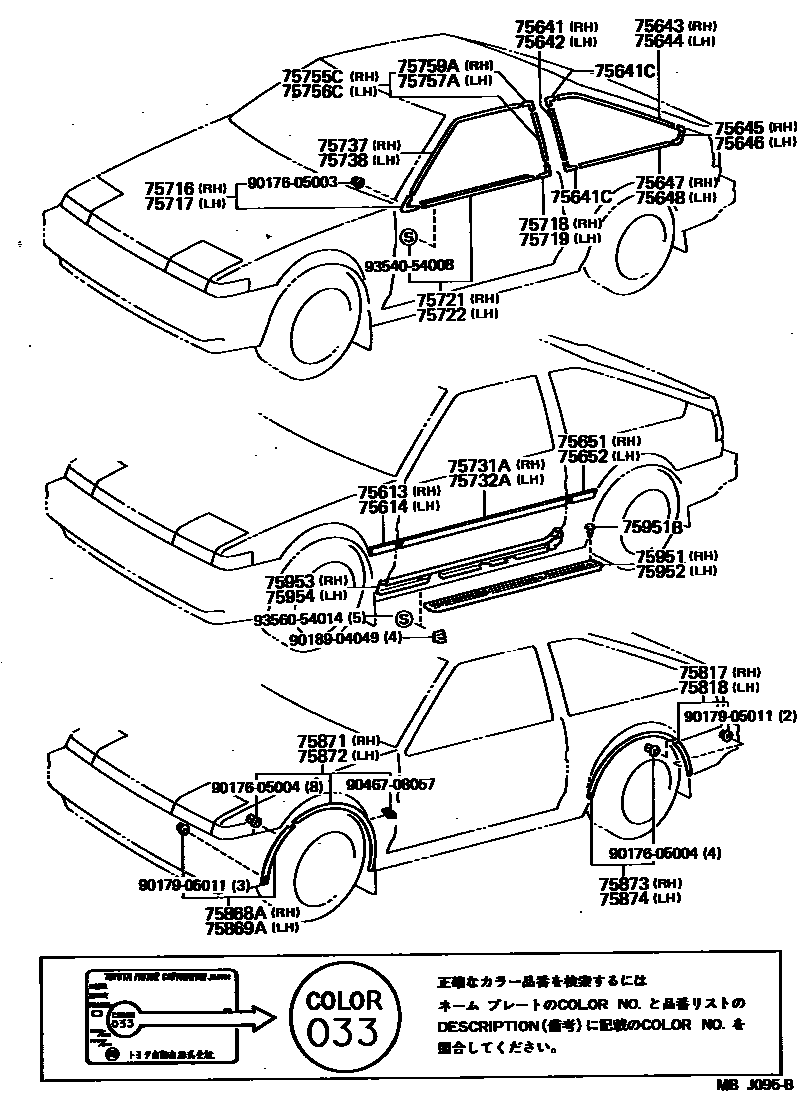

SIDE MOULDING

75613MOULDING, FRONT FENDER, OUTSIDE RH

main75611-12270-01iAE8#..GT,GTV,SE,SR,XL198401-198505

BLACK,BLACK,038 ,041 ,147 ,3D7 ,3E6 ,8A9

main75611-12270-02iAE8#..GT,GTV,SE,SR198401-198408

RED,RED/MAROON,2M9

main75611-12270-03iAE8#..GT,GTV,SE,SR,XL198305-198401

DARK GRAY,GRAY,038 ,147 ,151 ,3D7; DARK GRAY,GRAY,558 ,8A9

main75611-12270-08iAE86..APX198305-198307

WHITE,IVORY,2N2

main75611-12270-12iAE8#..APX,GT,GTV,SE,SR198408-198411

RED,RED,2T6

main75611-12270-13iAE86..APX198305-198307

SILVER-M,GRAY,2M8

main75611-12271-01iAE8#..GT,GTV,SE,SR,XL198505-198704

BLACK,BLACK,041 ,3E6 ,148 ,159 ,164

main75611-12280-08iAE86..APX198307-198309

WHITE,IVORY,2N2

main75611-12280-13iAE86..APX198307-198309

SILVER-M,GRAY,2M8

main75611-12290-02iAE8#..APX,GT,GTV,SE,SR198411-198505

RED,RED,2T6

main75611-12290-08iAE8#..GT,GTV,SE,SR198401-198408

WHITE,IVORY,2N2

main75611-12290-13iAE8#..GT,GTV,SE,SR198401-198408

SILVER-M,GRAY,2M8

main75611-12290-18iAE8#..APX,GT,GTV,SE,SR198408-198505

WHITE,WHITE,2T7

main75611-12291-01iAE86..3D..APX198601-198704

BLACK LIMITED,BLACK,BLACK METALLIC,204

main75611-12291-02iAE8#..APX,GT,GTV,SE,SR198505-198704

RED,RED,2T6 ,3E6

main75611-12291-03iAE8#..APX,GT,GTV,SE,SR198505-198704

SILVER-M,SILVER METALLIC,2X1

main75611-12291-08iAE8#..APX,GT,GTV,SE,SR198505-198704

WHITE,WHITE,2T7 ,041

75614MOULDING, FRONT FENDER, OUTSIDE LH

main75612-12230-01iAE8#..GT,GTV,SE,SR,XL198401-198505

BLACK,BLACK,038 ,041 ,147 ,3D7 ,3E6 ,8A9

main75612-12230-02iAE8#..GT,GTV,SE,SR198401-198408

RED,RED/MAROON,2M9

main75612-12230-03iAE8#..GT,GTV,SE,SR,XL198305-198401

DARK GRAY,GRAY,038 ,147 ,151 ,3D7; DARK GRAY,GRAY,558 ,8A9

main75612-12230-08iAE86..APX198305-198307

WHITE,IVORY,2N2

main75612-12230-12iAE8#..APX,GT,GTV,SE,SR198408-198411

RED,RED,2T6

main75612-12230-13iAE86..APX198305-198307

SILVER-M,GRAY,2M8

main75612-12231-01iAE8#..GT,GTV,SE,SR,XL198505-198704

BLACK,BLACK,041 ,3E6 ,148 ,159 ,164

main75612-12240-08iAE86..APX198307-198309

WHITE,IVORY,2N2

main75612-12240-13iAE86..APX198307-198309

SILVER-M,GRAY,2M8

main75612-12250-02iAE8#..APX,GT,GTV,SE,SR198411-198505

RED,RED,2T6

main75612-12250-08iAE8#..GT,GTV,SE,SR198401-198408

WHITE,IVORY,2N2

main75612-12250-13iAE8#..GT,GTV,SE,SR198401-198408

SILVER-M,GRAY,2M8

main75612-12250-18iAE8#..APX,GT,GTV,SE,SR198408-198505

WHITE,WHITE,2T7

main75612-12251-01iAE86..3D..APX198601-198704

BLACK LIMITED,BLACK,BLACK METALLIC,204

main75612-12251-02iAE8#..APX,GT,GTV,SE,SR198505-198704

RED,RED,2T6 ,3E6

main75612-12251-03iAE8#..APX,GT,GTV,SE,SR198505-198704

SILVER-M,SILVER METALLIC,2X1

main75612-12251-08iAE8#..APX,GT,GTV,SE,SR198505-198704

WHITE,WHITE,2T7 ,041

75641MOULDING, QUARTER WINDOW, OUTSIDE FRONT RH

main75641-12100iAE8#..3D198305-198704

main75641-12110iAE8#..2D..(APX,GT,XL)198305-198704

main75641-12120iAE85..SE198305-198704

75641CJOINT, QUARTER WINDOW MOULDING

main76651-12031iAE8#..3D198305-198704

RH,UPPER

main76651-12041iAE8#..2D..(APX,GT,XL)198305-198704

RH,UPPER

main76651-12051iAE85..SE198305-198704

RH,UPPER

main76652-12031iAE8#..3D198305-198704

LH,UPPER

main76652-12041iAE8#..2D..(APX,GT,XL)198305-198704

LH,UPPER

main76652-12051iAE85..SE198305-198704

LH,UPPER

main76653-12031iAE8#..3D198305-198704

RH,LOWER

main76653-12041iAE8#..2D..(APX,GT,XL)198305-198704

RH,LOWER

main76653-12051iAE85..SE198305-198704

RH,LOWER

main76654-12031iAE8#..3D198305-198704

LH,LOWER

main76654-12041iAE8#..2D..(APX,GT,XL)198305-198704

LH,LOWER

main76654-12051iAE85..SE198305-198704

LH,LOWER

75642MOULDING, QUARTER WINDOW, OUTSIDE FRONT LH

main75642-12100iAE8#..3D198305-198704

main75642-12110iAE8#..2D..(APX,GT,XL)198305-198704

main75642-12120iAE85..SE198305-198704

75643MOULDING, QUARTER WINDOW, OUTSIDE UPPER RH

main75643-12030iAE8#..3D198305-198704

main75643-12040iAE8#..2D..(APX,GT,XL)198305-198704

main75643-12050iAE85..SE198305-198704

75644MOULDING, QUARTER WINDOW, OUTSIDE UPPER LH

main75644-12030iAE8#..3D198305-198704

main75644-12040iAE8#..2D..(APX,GT,XL)198305-198704

main75644-12050iAE85..SE198305-198704

75645MOULDING, QUARTER WINDOW, OUTSIDE REAR RH

main75645-12031iAE8#..3D198305-198704

main75645-12041iAE8#..2D..(APX,GT,XL)198305-198704

main75645-12051iAE85..SE198305-198704

75646MOULDING, QUARTER WINDOW, OUTSIDE REAR LH

main75646-12031iAE8#..3D198305-198704

main75646-12041iAE8#..2D..(APX,GT,XL)198305-198704

main75646-12051iAE85..SE198305-198704

75647MOULDING, QUARTER WINDOW, OUTSIDE LOWER RH

main75647-12030iAE8#..3D198305-198704

main75647-12040iAE8#..2D..(APX,GT,XL)198305-198704

main75647-12050iAE85..SE198305-198704

75648MOULDING, QUARTER WINDOW, OUTSIDE LOWER LH

main75648-12030iAE8#..3D198305-198704

main75648-12040iAE8#..2D..(APX,GT,XL)198305-198704

main75648-12050iAE85..SE198305-198704

75651MOULDING, QUARTER, OUTSIDE RH

main75651-12340-01iAE8#..GT,GTV,SE,SR,XL198401-198505

BLACK,BLACK,038 ,041 ,147 ,3D7 ,3E6 ,8A9

main75651-12340-02iAE8#..GT,GTV,SE,SR198401-198408

RED,RED/MAROON,2M9

main75651-12340-03iAE8#..GT,GTV,SE,SR,XL198305-198401

DARK GRAY,GRAY,038 ,147 ,151 ,3D7; DARK GRAY,GRAY,558 ,8A9

main75651-12340-08iAE86..APX198305-198307

WHITE,IVORY,2N2

main75651-12340-12iAE8#..APX,GT,GTV,SE,SR198408-198411

RED,RED,2T6

main75651-12340-13iAE86..APX198305-198307

SILVER-M,GRAY,2M8

main75651-12341-01iAE8#..GT,GTV,SE,SR,XL198505-198704

BLACK,BLACK,041 ,3E6 ,148 ,159 ,164

main75651-12360iAE85..XL198305-198401

LISSE,DARK GRAY

main75651-12360-01iAE85..XL198401-198505

LISSE,BLACK,BLACK

main75651-12371-01iAE85..XL198505-198704

LISSE,BLACK,BLACK,041 ,3E6 ,148 ,164

main75651-12390-08iAE86..APX198307-198309

WHITE,IVORY,2N2

main75651-12390-13iAE86..APX198307-198309

SILVER-M,GRAY,2M8

main75651-12420-02iAE8#..APX,GT,GTV,SE,SR198411-198505

RED,RED,2T6

main75651-12420-08iAE8#..GT,GTV,SE,SR198401-198408

WHITE,IVORY,2N2

main75651-12420-13iAE8#..APX,GT,GTV,SE,SR198408-198505

SILVER-M,GRAY,2M8

main75651-12420-18iAE8#..APX,GT,GTV,SE,SR198408-198505

WHITE,WHITE,2T7

main75651-12421-01iAE86..3D..APX198601-198704

BLACK LIMITED,BLACK,BLACK,204

main75651-12421-02iAE8#..APX,GT,GTV,SE,SR198505-198704

RED,RED,2T6 ,3E6

main75651-12421-03iAE8#..APX,GT,GTV,SE,SR198505-198704

SILVER-M,SILVER METALLIC,2X1

main75651-12421-08iAE8#..APX,GT,GTV,SE,SR198505-198704

WHITE,WHITE,2T7 ,041

75652MOULDING, QUARTER, OUTSIDE LH

main75652-12340-01iAE8#..GT,GTV,SE,SR,XL198401-198505

BLACK,BLACK,038 ,041 ,147 ,3D7 ,3E6 ,8A9

main75652-12340-02iAE8#..GT,GTV,SE,SR198401-198408

RED,RED/MAROON,2M9

main75652-12340-03iAE8#..GT,GTV,SE,SR,XL198305-198401

DARK GRAY,GRAY,038 ,147 ,151 ,3D7; DARK GRAY,GRAY,558 ,8A9

main75652-12340-08iAE86..APX198305-198307

WHITE,IVORY,2N2

main75652-12340-12iAE8#..APX,GT,GTV,SE,SR198408-198411

RED,RED,2T6

main75652-12340-13iAE86..APX198305-198307

SILVER-M,GRAY,2M8

main75652-12341-01iAE8#..GT,GTV,SE,SR,XL198505-198704

BLACK,BLACK,041 ,3E6 ,148 ,159 ,164

main75652-12360iAE85..XL198305-198401

LISSE,DARK GRAY

main75652-12360-01iAE85..XL198401-198505

LISSE,BLACK,BLACK

main75652-12371-01iAE85..XL198505-198704

LISSE,BLACK,BLACK,041 ,3E6 ,148 ,164

main75652-12390-08iAE86..APX198307-198309

WHITE,IVORY,2N2

main75652-12390-13iAE86..APX198307-198309

SILVER-M,GRAY,2M8

main75652-12420-02iAE8#..APX,GT,GTV,SE,SR198411-198505

RED,RED,2T6

main75652-12420-08iAE86..APX198309-198408

WHITE,IVORY,2N2

main75652-12420-13iAE8#..GT,GTV,SE,SR198401-198408

SILVER-M,GRAY,2M8

main75652-12420-18iAE8#..APX,GT,GTV,SE,SR198408-198505

WHITE,WHITE,2T7

main75652-12421-01iAE86..3D..APX198601-198704

BLACK LIMITED,BLACK,BLACK,204

main75652-12421-02iAE8#..APX,GT,GTV,SE,SR198505-198704

RED,RED,2T6 ,3E6

main75652-12421-03iAE8#..APX,GT,GTV,SE,SR198505-198704

SILVER-M,SILVER METALLIC,2X1

main75652-12421-08iAE8#..APX,GT,GTV,SE,SR198505-198704

WHITE,WHITE,2T7 ,041

75716COVER, FRONT DOOR BELT MOULDING END, FRONT RH

main75716-19015iAE8#..APX,GT,GTV,SR,XL198305-198704

main75716-19025iAE85..SE198305-198704

75717COVER, FRONT DOOR BELT MOULDING END, FRONT LH

main75717-19015iAE8#..APX,GT,GTV,SR,XL198305-198704

main75717-19025iAE85..SE198305-198704

75718COVER, FRONT DOOR BELT MOULDING END, REAR RH

main75718-12030iAE8#..APX,GT,GTV,SR,XL198305-198704

main75718-12040iAE85..SE198305-198704

75719COVER, FRONT DOOR BELT MOULDING END, REAR LH

main75719-12010iAE8#..APX,GT,GTV,SR,XL198305-198704

main75719-12020iAE85..SE198305-198704

75721MOULDING, FRONT DOOR BELT, RH

main75710-19175iAE8#..APX,GT,GTV,SR,XL198305-198704

main75710-19195iAE85..SE198305-198704

75722MOULDING, FRONT DOOR BELT, LH

main75720-19175iAE8#..APX,GT,GTV,SR,XL198305-198704

main75720-19195iAE85..SE198305-198704

75731AMOULDING, FRONT DOOR, OUTSIDE RH

main75731-12390-01iAE8#..GT,GTV,SE,SR,XL198401-198505

BLACK,BLACK,038 ,041 ,147 ,3D7 ,3E6 ,8A9

main75731-12390-02iAE8#..GT,GTV,SE,SR198401-198408

RED,RED/MAROON,2M9

main75731-12390-03iAE8#..GT,GTV,SE,SR,XL198305-198401

DARK GRAY,GRAY,038 ,147 ,151 ,3D7; DARK GRAY,GRAY,558 ,8A9

main75731-12390-08iAE86..APX198305-198307

WHITE,IVORY,2N2

main75731-12390-12iAE8#..APX,GT,GTV,SE,SR198408-198411

RED,RED,2T6

main75731-12390-13iAE86..APX198305-198307

SILVER-M,GRAY,2M8

main75731-12391-01iAE8#..GT,GTV,SE,SR,XL198505-198704

BLACK,BLACK,041 ,3E6 ,148 ,159 ,164

main75731-12400-08iAE86..APX198307-198309

WHITE,IVORY,2N2

main75731-12400-13iAE86..APX198307-198309

SILVER-M,GRAY,2M8

main75731-12410-02iAE8#..APX,GT,GTV,SE,SR198411-198505

RED,RED,2T6

main75731-12410-08iAE86..APX198309-198408

WHITE,IVORY,2N2

main75731-12410-13iAE8#..GT,GTV,SE,SR198401-198408

SILVER-M,GRAY,2M8

main75731-12410-18iAE8#..APX,GT,GTV,SE,SR198408-198505

WHITE,WHITE,2T7

main75731-12411-01iAE86..3D..APX198601-198704

BLACK LIMITED,BLACK,BLACK METALLIC,204

main75731-12411-02iAE8#..APX,GT,GTV,SE,SR198505-198704

RED,RED,2T6 ,3E6

main75731-12411-03iAE8#..APX,GT,GTV,SE,SR198505-198704

SILVER-M,SILVER METALLIC,2X1

main75731-12411-08iAE8#..APX,GT,GTV,SE,SR198505-198704

WHITE,WHITE,2T7 ,041

75732AMOULDING, FRONT DOOR, OUTSIDE LH

main75732-12230-01iAE8#..GT,GTV,SE,SR,XL198401-198505

BLACK,BLACK,038 ,041 ,147 ,3D7 ,3E6 ,8A9

main75732-12230-02iAE86..APX198305-198408

RED,RED/MAROON,2M9

main75732-12230-03iAE8#..GT,GTV,SE,SR,XL198305-198401

DARK GRAY,GRAY,038 ,147 ,151 ,3D7; DARK GRAY,GRAY,558 ,8A9

main75732-12230-08iAE86..APX198305-198307

WHITE,IVORY,2N2

main75732-12230-12iAE8#..APX,GT,GTV,SE,SR198408-198411

RED,RED,2T6

main75732-12230-13iAE86..APX198305-198307

SILVER-M,GRAY,2M8

main75732-12231-01iAE8#..GT,GTV,SE,SR,XL198505-198704

BLACK,BLACK,041 ,3E6 ,148 ,159 ,164

main75732-12240-08iAE86..APX198307-198309

WHITE,IVORY,2N2

main75732-12240-13iAE86..APX198307-198309

SILVER-M,GRAY,2M8

main75732-12250-02iAE8#..APX,GT,GTV,SE,SR198411-198505

RED,RED,2T6

main75732-12250-08iAE8#..GT,GTV,SE,SR198401-198408

WHITE,IVORY,2N2

main75732-12250-13iAE8#..APX,GT,GTV,SE,SR198408-198505

SILVER-M,GRAY,2M8

main75732-12250-18iAE8#..APX,GT,GTV,SE,SR198408-198505

WHITE,WHITE,2T7

main75732-12251-01iAE86..3D..APX198601-198704

BLACK LIMITED,BLACK,BLACK,204

main75732-12251-02iAE8#..APX,GT,GTV,SE,SR198505-198704

RED,RED,2T6 ,3E6

main75732-12251-03iAE8#..APX,GT,GTV,SE,SR198505-198704

SILVER-M,SILVER METALLIC,2X1

main75732-12251-08iAE8#..APX,GT,GTV,SE,SR198505-198704

WHITE,WHITE,2T7 ,041

75737MOULDING, FRONT DOOR WINDOW FRAME, FRONT RH

main75751-12140iAE8#..APX,GT,GTV,SR,XL198305-198704

main75751-12150iAE85..SE198305-198704

75738MOULDING, FRONT DOOR WINDOW FRAME, FRONT LH

main75752-12140iAE8#..APX,GT,GTV,SR,XL198305-198704

main75752-12150iAE85..SE198305-198704

75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH

main75755-12060iAE8#..APX,GT,GTV,SR,XL198305-198704

main75755-12070iAE85..SE198305-198704

75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH

main75756-12080iAE8#..APX,GT,GTV,SR,XL198305-198704

main75756-12090iAE85..SE198305-198704

75757ACOVER, FRONT DOOR WINDOW FRAME MOULDING JOINT, REAR LH

main75757-12040iAE8#..APX,GT,GTV,SR,XL198305-198704

main75757-12050iAE85..SE198305-198704

75759ACOVER, FRONT DOOR WINDOW FRAME MOULDING JOINT, REAR RH

main75759-12040iAE8#..APX,GT,GTV,SR,XL198305-198704

main75759-12050iAE85198305-198704

75817MOULDING, QUARTER WHEEL OPENING, NO.2 RH

main75817-19015iAE86198505-198704

75818MOULDING, QUARTER WHEEL OPENING, NO.2 LH

main75818-19015iAE86198505-198704

75868AMOULDING, FRONT FENDER WHEEL OPENING, NO.2 RH

main75868-19025iAE86198505-198704

75869AMOULDING, FRONT FENDER WHEEL OPENING, NO.2 LH

main75869-19025iAE86198505-198704

75871MOULDING, FRONT FENDER WHEEL OPENING, RH

main75871-19195iAE86198505-198704

75872MOULDING, FRONT FENDER WHEEL OPENING, LH

main75872-19195iAE86198505-198704

75873MOULDING, QUARTER PANEL WHEEL OPENING, RH

main75873-19115iAE86198505-198704

main75873-19125iAE86198505-198704

W/SIDE MUDGUARD

75874MOULDING, QUARTER PANEL WHEEL OPENING, LH

main75874-19115iAE86198505-198704

main75874-19125iAE86198505-198704

W/SIDE MUDGUARD

75951PLATE, FRONT DOOR SCUFF, OUTSIDE RH

main67911-12040-01iAE8#198505-198704

BLACK,BLACK,TRIM2#

main67911-12040-02iAE8#198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main67911-12040-04iAE8#198305-198505

BLUE,BLUE,TRIM8#

75951BCLIP (FOR DOOR SCUFF PLATE)

main90467-07041-01×8iAE8#198505-198704

BLACK,BLACK,TRIM2#

main90467-07041-02×8iAE8#198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main90467-07041-04×8iAE8#198305-198505

BLUE,BLUE,TRIM8#

75952PLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67911-12040-01iAE8#198505-198704

BLACK,BLACK,TRIM2#

main67911-12040-02iAE8#198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main67911-12040-04iAE8#198305-198505

BLUE,BLUE,TRIM8#

75953PLATE, FRONT DOOR SCUFF, INSIDE RH

main67913-12130-01iAE8#198505-198704

BLACK,BLACK,TRIM2#

main67913-12130-02iAE8#198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main67913-12130-04iAE8#198305-198505

BLUE,BLUE,TRIM8#

75954PLATE, FRONT DOOR SCUFF, INSIDE LH

main67914-12130-01iAE8#198505-198704

BLACK,BLACK,TRIM2#

main67914-12130-02iAE8#198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main67914-12130-04iAE8#198305-198505

BLUE,BLUE,TRIM8#

9017605003

main90176-05003

9017605004

main90176-05004

9017905011

main90179-05011

9018904049

main90189-04049

9046708057

main90467-08057

9354054008

main93540-54008

9356054014

main93560-54014

47 parts on this diagram · 1 diagram in section
