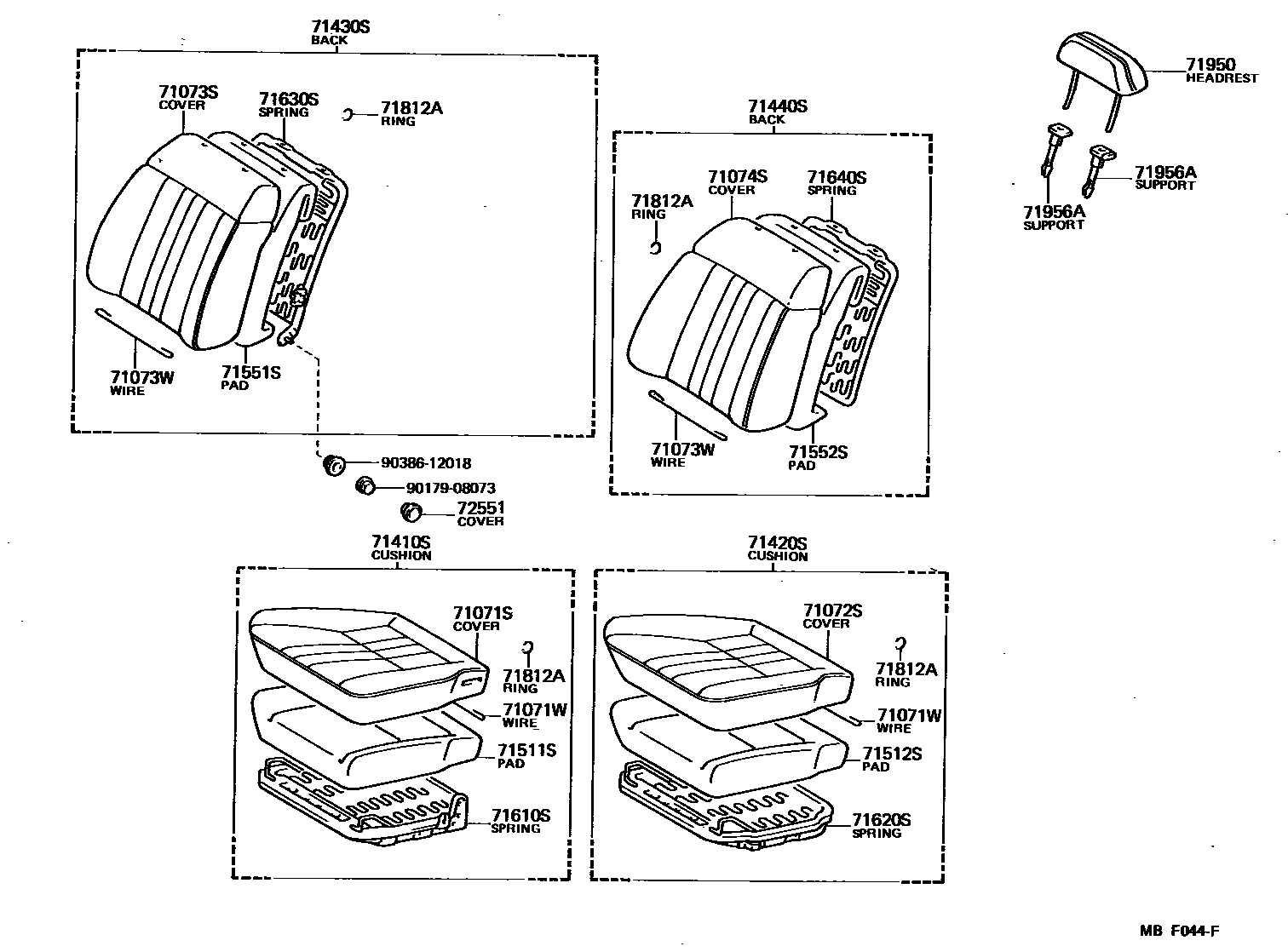

FRONT SEAT & SEAT TRACK

0001 1 0002 1 0003 1 0004 1

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-1A800-02iAE85..SR198401-198505

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71071-1A800-04iAE85..SR198401-198505

FB,BLUE,BLUE,TRIM8#

main71071-1A830-02iAE86..GTV198305-198505

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71071-1A830-04iAE86..GTV198305-198505

FB,BLUE,BLUE,TRIM8#

main71071-1A840-02iAE85..XL198305-198505

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71071-1A840-04iAE85..XL198305-198505

FB,BLUE,BLUE,TRIM8#

main71071-1A850iAE85..XL198305-198401

FB,LISSE,DEEP MAROON

main71071-1A850-12iAE85..XL198401-198505

FB,LISSE,ROSE BEIGE,RED/MAROON,TRIM3#

main71071-1A860-02iAE86..APX198305-198505

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71071-1A860-04iAE86..APX198305-198505

FB,BLUE,BLUE,TRIM8#

main71071-1E480-02iAE8#..GT,SE198401-198505

FB,ROSE BEIGE,ROSE BEIGE,TRIM3#

main71071-1E480-04iAE8#..GT,SE198401-198505

FB,LIGHT BLUE,LIGHT BLUE,TRIM8#

main71071-1E730-03iAE85..SR198505-198704

FB,GRAY,GRAY,TRIM2#

main71071-1E740-01iAE8#..GTV,SR198505-198704

FB,W/*SPS,BLACK,BLACK,TRIM2#

main71071-1E750-01iAE86..APX198505-198704

FB,BLACK,BLACK,TRIM2#

main71071-1E830-03iAE85..XL198505-198704

FB,GRAY,GRAY,TRIM2#

main71071-1E840-03iAE85..XL198505-198704

FB,LISSE,GRAY,GRAY,TRIM2#

main71071-1E850-03iAE8#..GT,SE198505-198704

FB,GRAY,GRAY,TRIM2#

71071WWIRE, FRONT SEAT CUSHION COVER

main90580-20019×2iAE8#198305-198505

L=260

main90580-20103×2iAE8#198305-198505

L=1150

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-1A790-02iAE85..SR198401-198505

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71072-1A790-04iAE85..SR198401-198505

FB,BLUE,BLUE,TRIM8#

main71072-1A830-02iAE85..XL198305-198505

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71072-1A830-04iAE85..XL198305-198505

FB,BLUE,BLUE,TRIM8#

main71072-1A850-02iAE86..APX,GTV198305-198505

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71072-1A850-04iAE86..APX,GTV198305-198505

FB,BLUE,BLUE,TRIM8#

main71072-1A860iAE85..XL198305-198401

FB,LISSE,DEEP MAROON

main71072-1A860-12iAE85..XL198401-198505

FB,LISSE,ROSE BEIGE,RED/MAROON,TRIM3#

main71072-1E130-02iAE8#..GT,SE198401-198505

FB,ROSE BEIGE,ROSE BEIGE,TRIM3#

main71072-1E130-04iAE8#..GT,SE198401-198505

FB,LIGHT BLUE,LIGHT BLUE,TRIM8#

main71072-1E170-03iAE85..SR198505-198704

FB,GRAY,GRAY,TRIM2#

main71072-1E180-01iAE86..APX198505-198704

FB,BLACK,BLACK,TRIM2#

main71072-1E220-01iAE8#..GTV,SR198505-198704

FB,W/*SPS,BLACK,BLACK,TRIM2#

main71072-1E250-03iAE85..XL198505-198704

FB,GRAY,GRAY,TRIM2#

main71072-1E260-03iAE85..XL198505-198704

FB,LISSE,GRAY,GRAY,TRIM2#

main71072-1E270-03iAE8#..GT,SE198505-198704

FB,GRAY,GRAY,TRIM2#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-1E180-02iAE85..SR198305-198505

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71073-1E180-04iAE85..SR198305-198505

FB,BLUE,BLUE,TRIM8#

main71073-1E220-02iAE86..GT198305-198401

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71073-1E220-04iAE86..GT198305-198401

FB,BLUE,BLUE,TRIM8#

main71073-1E230-02iAE85..XL198305-198401

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71073-1E230-04iAE85..XL198305-198401

FB,BLUE,BLUE,TRIM8#

main71073-1E230-12iAE85..XL198401-198505

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71073-1E230-14iAE85..XL198401-198505

FB,BLUE,BLUE,TRIM8#

main71073-1E240-02iAE85..SE198305-198401

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71073-1E240-04iAE85..SE198305-198401

FB,BLUE,BLUE,TRIM8#

main71073-1E241-02iAE8#..GT,SE198401-198505

FB,ROSE BEIGE,ROSE BEIGE,TRIM3#

main71073-1E241-04iAE8#..GT,SE198401-198505

FB,LIGHT BLUE,LIGHT BLUE,TRIM8#

main71073-1E250-02iAE86..APX,GTV198305-198505

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71073-1E250-04iAE86..APX,GTV198305-198505

FB,BLUE,BLUE,TRIM8#

main71073-1E590iAE85..XL198305-198401

FB,LISSE,DEEP MAROON

main71073-1E590-12iAE85..XL198401-198505

FB,LISSE,ROSE BEIGE,RED/MAROON,TRIM3#

main71073-1E830-03iAE85..SR198505-198704

FB,GRAY,GRAY,TRIM2#

main71073-1E840-03iAE8#..GTV,SR198505-198704

FB,W/*SPS,GRAY,GRAY,TRIM2#

main71073-1E850-03iAE86..APX198505-198704

FB,GRAY,GRAY,TRIM2#

main71073-1H020-03iAE85..XL198505-198704

FB,GRAY,GRAY,TRIM2#

main71073-1H040-03iAE85..XL198505-198704

FB,LISSE,GRAY,GRAY,TRIM2#

main71073-1H050-03iAE8#..GT,SE198505-198704

FB,GRAY,GRAY,TRIM2#

main71073-1H120-03iAE86..3D..APX198601-198704

FB,BLACK LIMITED,GRAY,GRAY,TRIM2#

71073WWIRE, FRONT SEATBACK COVER

main90580-20020×4iAE8#..GT,SE,SR,XL198305-198505

L=420

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71073-1E250-02iAE86..APX,GTV198305-198505

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71073-1E250-04iAE86..APX,GTV198305-198505

FB,BLUE,BLUE,TRIM8#

main71073-1E840-03iAE8#..GTV,SR198505-198704

FB,W/*SPS,GRAY,GRAY,TRIM2#

main71073-1E850-03iAE86..APX198505-198704

FB,GRAY,GRAY,TRIM2#

main71073-1H120-03iAE86..3D..APX198601-198704

FB,BLACK LIMITED,GRAY,GRAY,TRIM2#

main71074-1A200-02iAE85..SR198305-198505

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71074-1A200-04iAE85..SR198305-198505

FB,BLUE,BLUE,TRIM8#

main71074-1A240-02iAE86..GT198305-198401

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71074-1A240-04iAE86..GT198305-198401

FB,BLUE,BLUE,TRIM8#

main71074-1A250-02iAE85..XL198305-198401

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71074-1A250-04iAE85..XL198305-198401

FB,BLUE,BLUE,TRIM8#

main71074-1A250-12iAE85..XL198401-198505

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71074-1A250-14iAE85..XL198401-198505

FB,BLUE,BLUE,TRIM8#

main71074-1A260-02iAE85..SE198305-198401

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71074-1A260-04iAE85..SE198305-198401

FB,BLUE,BLUE,TRIM8#

main71074-1A261-02iAE8#..GT,SE198401-198505

FB,ROSE BEIGE,ROSE BEIGE,TRIM3#

main71074-1A261-04iAE8#..GT,SE198401-198505

FB,LIGHT BLUE,LIGHT BLUE,TRIM8#

main71074-1A530iAE85..XL198305-198401

FB,LISSE,DEEP MAROON

main71074-1A530-12iAE85..XL198401-198505

FB,LISSE,ROSE BEIGE,RED/MAROON,TRIM3#

main71074-1A810-03iAE85..SR198505-198704

FB,GRAY,GRAY,TRIM2#

main71074-1A860-03iAE85..XL198505-198704

FB,GRAY,GRAY,TRIM2#

main71074-1A880-03iAE85..XL198505-198704

FB,LISSE,GRAY,GRAY,TRIM2#

main71074-1A890-03iAE8#..GT,SE198505-198704

FB,GRAY,GRAY,TRIM2#

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-1E120-02iAE85..SR198401-198505

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71410-1E120-04iAE8#..GT,SE,SR198305-198401

FB,BLUE,BLUE,TRIM8#

main71410-1E140-02iAE85..XL198305-198505

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71410-1E140-04iAE85..XL198305-198505

FB,BLUE,BLUE,TRIM8#

main71410-1E150-02iAE86..GTV198305-198505

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71410-1E150-04iAE86..GTV198305-198505

FB,BLUE,BLUE,TRIM8#

main71410-1E170-02iAE86..APX198305-198505

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71410-1E170-04iAE86..APX198305-198505

FB,BLUE,BLUE,TRIM8#

main71410-1E180iAE85..XL198305-198401

FB,LISSE,DEEP MAROON

main71410-1E180-12iAE85..XL198401-198505

FB,LISSE,ROSE BEIGE,RED/MAROON,TRIM3#

main71410-1H050-02iAE8#..GT,SE198401-198505

FB,ROSE BEIGE,RED/MAROON,TRIM3#

main71410-1H050-04iAE8#..GT,SE198401-198505

FB,LIGHT BLUE,BLUE,TRIM8#

main71410-1H140-03iAE85..SR198505-198704

FB,GRAY,GRAY,TRIM2#

main71410-1H150-01iAE8#..GTV,SR198505-198704

FB,W/*SPS,BLACK,BLACK,TRIM2#

main71410-1H160-01iAE86..APX198505-198704

FB,BLACK,BLACK,TRIM2#

main71410-1H170-03iAE85..XL198505-198704

FB,LISSE,GRAY,GRAY,TRIM2#

main71410-1H240-03iAE85..XL198505-198704

FB,GRAY,GRAY,TRIM2#

main71410-1H250-03iAE8#..GT,SE198505-198704

FB,GRAY,GRAY,TRIM2#

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71420-1E080-02iAE8#..GT,SE,SR198305-198401

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71420-1E080-04iAE8#..GT,SE,SR198305-198401

FB,BLUE,BLUE,TRIM8#

main71420-1E120-02iAE85..XL198305-198505

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71420-1E120-04iAE85..XL198305-198505

FB,BLUE,BLUE,TRIM8#

main71420-1E140-02iAE86..APX,GTV198305-198505

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71420-1E140-04iAE86..APX,GTV198305-198505

FB,BLUE,BLUE,TRIM8#

main71420-1E150-03iAE85..SR198505-198704

FB,GRAY,GRAY,TRIM2#

main71420-1E160iAE85..XL198305-198401

FB,LISSE,DEEP MAROON

main71420-1E160-12iAE85..XL198401-198505

FB,LISSE,ROSE BEIGE,RED/MAROON,TRIM3#

main71420-1E180-01iAE86..APX198505-198704

FB,BLACK,BLACK,TRIM2#

main71420-1E270-03iAE85..XL198505-198704

FB,LISSE,GRAY,GRAY,TRIM2#

main71420-1E300-01iAE8#..GTV,SR198505-198704

FB,W/*SPS,BLACK,BLACK,TRIM2#

main71420-1E400-02iAE8#..GT,SE198401-198505

FB,ROSE BEIGE,RED/MAROON,TRIM3#

main71420-1E400-04iAE8#..GT,SE198401-198505

FB,LIGHT BLUE,BLUE,TRIM8#

main71420-1E450-03iAE85..XL198505-198704

FB,GRAY,GRAY,TRIM2#

main71420-1E460-03iAE8#..GT,SE198505-198704

FB,GRAY,GRAY,TRIM2#

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71430-1E330-02iAE85..SR198305-198505

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71430-1E330-04iAE85..SR198305-198505

FB,BLUE,BLUE,TRIM8#

main71430-1E350-02iAE86..GT198305-198401

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71430-1E350-04iAE86..GT198305-198401

FB,BLUE,BLUE,TRIM8#

main71430-1E360-02iAE85..XL198305-198401

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71430-1E360-04iAE85..XL198305-198401

FB,BLUE,BLUE,TRIM8#

main71430-1E360-12iAE85..XL198401-198505

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71430-1E360-14iAE85..XL198401-198505

FB,BLUE,BLUE,TRIM8#

main71430-1E380-02iAE85..SE198305-198401

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71430-1E380-04iAE85..SE198305-198401

FB,BLUE,BLUE,TRIM8#

main71430-1E381-02iAE8#..GT,SE198401-198505

FB,ROSE BEIGE,RED/MAROON,TRIM3#

main71430-1E381-04iAE8#..GT,SE198401-198505

FB,LIGHT BLUE,BLUE,TRIM8#

main71430-1E390-02iAE86..APX,GTV198305-198505

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71430-1E390-04iAE86..APX,GTV198305-198505

FB,BLUE,BLUE,TRIM8#

main71430-1E860iAE85..XL198305-198401

FB,LISSE,DEEP MAROON

main71430-1E860-12iAE85..XL198401-198505

FB,LISSE,ROSE BEIGE,RED/MAROON,TRIM3#

main71430-1H210-03iAE85..SR198505-198704

FB,GRAY,GRAY,TRIM2#

main71430-1H220-03iAE8#..GTV,SR198505-198704

FB,W/*SPS,GRAY,GRAY,TRIM2#

main71430-1H230-03iAE86..APX198505-198704

FB,GRAY,GRAY,TRIM2#

main71430-1H250-03iAE85..XL198505-198704

FB,LISSE,GRAY,GRAY,TRIM2#

main71430-1H310-03iAE85..XL198505-198704

FB,GRAY,GRAY,TRIM2#

main71430-1H320-03iAE8#..GT,SE198505-198704

FB,GRAY,GRAY,TRIM2#

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71440-1E280-02iAE85..SR198305-198505

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71440-1E280-04iAE85..SR198305-198505

FB,BLUE,BLUE,TRIM8#

main71440-1E310-02iAE85..XL198305-198401

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71440-1E310-04iAE85..XL198305-198401

FB,BLUE,BLUE,TRIM8#

main71440-1E310-12iAE85..XL198401-198505

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71440-1E310-14iAE85..XL198401-198505

FB,BLUE,BLUE,TRIM8#

main71440-1E320-02iAE85..SE198305-198401

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71440-1E320-04iAE85..SE198305-198401

FB,BLUE,BLUE,TRIM8#

main71440-1E321-02iAE8#..GT,SE198401-198505

FB,ROSE BEIGE,RED/MAROON,TRIM3#

main71440-1E321-04iAE8#..GT,SE198401-198505

FB,LIGHT BLUE,BLUE,TRIM8#

main71440-1E330-02iAE86..APX,GTV198305-198505

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71440-1E330-04iAE86..APX,GTV198305-198505

FB,BLUE,BLUE,TRIM8#

main71440-1E340-02iAE86..GT198305-198401

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71440-1E340-04iAE86..GT198305-198401

FB,BLUE,BLUE,TRIM8#

main71440-1E790iAE85..XL198305-198401

FB,LISSE,DEEP MAROON

main71440-1E790-12iAE85..XL198401-198505

FB,LISSE,ROSE BEIGE,RED/MAROON,TRIM3#

main71440-1H150-03iAE85..SR198505-198704

FB,GRAY,GRAY,TRIM2#

main71440-1H160-03iAE8#..GTV,SR198505-198704

FB,W/*SPS,GRAY,GRAY,TRIM2#

main71440-1H170-03iAE86..APX198505-198704

FB,GRAY,GRAY,TRIM2#

main71440-1H190-03iAE85..XL198505-198704

FB,LISSE,GRAY,GRAY,TRIM2#

main71440-1H240-03iAE85..XL198505-198704

FB,GRAY,GRAY,TRIM2#

main71440-1H250-03iAE8#..GT,SE198505-198704

FB,GRAY,GRAY,TRIM2#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-12440iAE86..APX,GTV198305-198407

main71511-12460iAE86..APX,GTV198407-198505

main71511-12540iAE8#198505-198704

main71511-14140iAE8#..GT,SE,SR,XL198305-198505

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71511-12440iAE86..APX,GTV198305-198407

main71511-12460iAE86..APX,GTV198407-198505

main71511-12540iAE8#198505-198704

main71511-14140iAE8#..GT,SE,SR,XL198305-198505

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-12390iAE8#..GT,SE,SR,XL198305-198407

main71551-12400iAE86..APX,GTV198305-198407

main71551-12410iAE8#..GT,SE,SR,XL198407-198505

main71551-12420iAE86..APX,GTV198407-198505

main71551-12500iAE8#..APX,GTV,SR198505-198704

W/SPORTS SEAT

main71551-12510iAE8#..GT,SE,SR,XL198505-198704

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71551-12390iAE8#..GT,SE,SR,XL198305-198407

main71551-12400iAE86..APX,GTV198305-198407

main71551-12410iAE8#..GT,SE,SR,XL198407-198505

main71551-12420iAE86..APX,GTV198407-198505

main71551-12500iAE8#..APX,GTV,SR198505-198704

W/SPORTS SEAT

main71551-12510iAE8#..GT,SE,SR,XL198505-198704

71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71610-12160iAE8#..GT,SE,SR,XL198305-198505

W/O *VA

main71610-12161iAE8#..GT,GTV,SE,SR,XL198505-198508

W/O *VA

main71610-12170iAE85..XL198305-198704

W/*VA

main71610-12180iAE86..APX198305-198505

main71610-12190iAE86..GTV198305-198505

main71610-12201iAE8#..GT,GTV,SE,SR,XL198508-198704

W/O *VA

main71610-12250iAE86..APX198505-198704

71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71620-12141iAE8#..GT,SE,SR,XL198305-198505

main71620-12150iAE86..APX,GTV198305-198505

main71620-12181iAE8#198508-198704

71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71630-12270iAE8#..APX,GTV,SR198505-198704

W/SPORTS SEAT

main71630-12290iAE8#..GT,SE,SR,XL198305-198704

main71630-12330iAE86..APX,GTV198305-198505

71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71640-12220iAE8#..GT,SE,SR,XL198305-198704

main71640-12230iAE86..APX,GTV198305-198505

main71640-12300iAE8#..APX,GTV,SR198505-198704

W/SPORTS SEAT

71812ARING, HOG, SMALL (FOR FRONT SEAT)

main90468-18071iAE8#198305-198704

71950HEADREST ASSY, FRONT SEAT

main71910-12270-02×2iAE86..APX,GTV198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main71910-12270-04×2iAE86..APX,GTV198305-198505

BLUE,BLUE,TRIM8#

main71910-12300-02×2iAE8#..GT,SE198305-198401

DEEP MAROON,RED/MAROON,TRIM3#

main71910-12300-04×2iAE8#..GT,SE198305-198401

BLUE,BLUE,TRIM8#

main71910-12301-02×2iAE8#..GT,SE198401-198505

ROSE BEIGE,RED/MAROON,TRIM3#

main71910-12301-04×2iAE8#..GT,SE198401-198505

BLUE,BLUE,TRIM8#

main71910-12350-01×2iAE85..SR,XL198505-198704

BLACK,BLACK,TRIM2#

main71910-12350-02×2iAE85..SR,XL198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main71910-12350-14×2iAE85..SR,XL198305-198505

BLUE,BLUE,TRIM8#

main71910-12410×2iAE85..XL198305-198401

LISSE,DEEP MAROON

main71910-12411-02×2iAE85..XL198401-198505

LISSE,DEEP MAROON,DEEP MAROON,TRIM3#

main71910-12590-01×2iAE8#..APX,GTV,SR198505-198704

W/SPORTS SEAT,BLACK,BLACK,TRIM2#

main71910-12600-01×2iAE8#..GT,SE198505-198704

BLACK,BLACK,TRIM2#

main71910-12610-01×2iAE85..XL198505-198704

LISSE,BLACK,BLACK,TRIM2#

71956ASUPPORT, FRONT SEAT HEADREST

main71930-10060-01×2iAE8#..GT,SE,SR,XL198505-198704

main71930-10060-02×2iAE85198305-198505

main71930-10060-04×2iAE85198305-198505

main71930-14080-02×2iAE86..APX,GTV198305-198505

main71930-14080-04×2iAE86..APX,GTV198305-198505

main71931-10010-01×2iAE8#..GT,SE,SR,XL198505-198704

main71931-10010-02×2iAE85198305-198505

main71931-10010-04×2iAE85198305-198505

main71931-14010-02×2iAE86..APX,GTV198305-198505

main71931-14010-04×2iAE86..APX,GTV198305-198505

72551COVER, RECLINING HINGE, NO.1

main72551-12070×2iAE8#198305-198704

9017908073

main90179-08073

9038612018

main90386-12018

24 parts on this diagram · 4 diagrams in section
