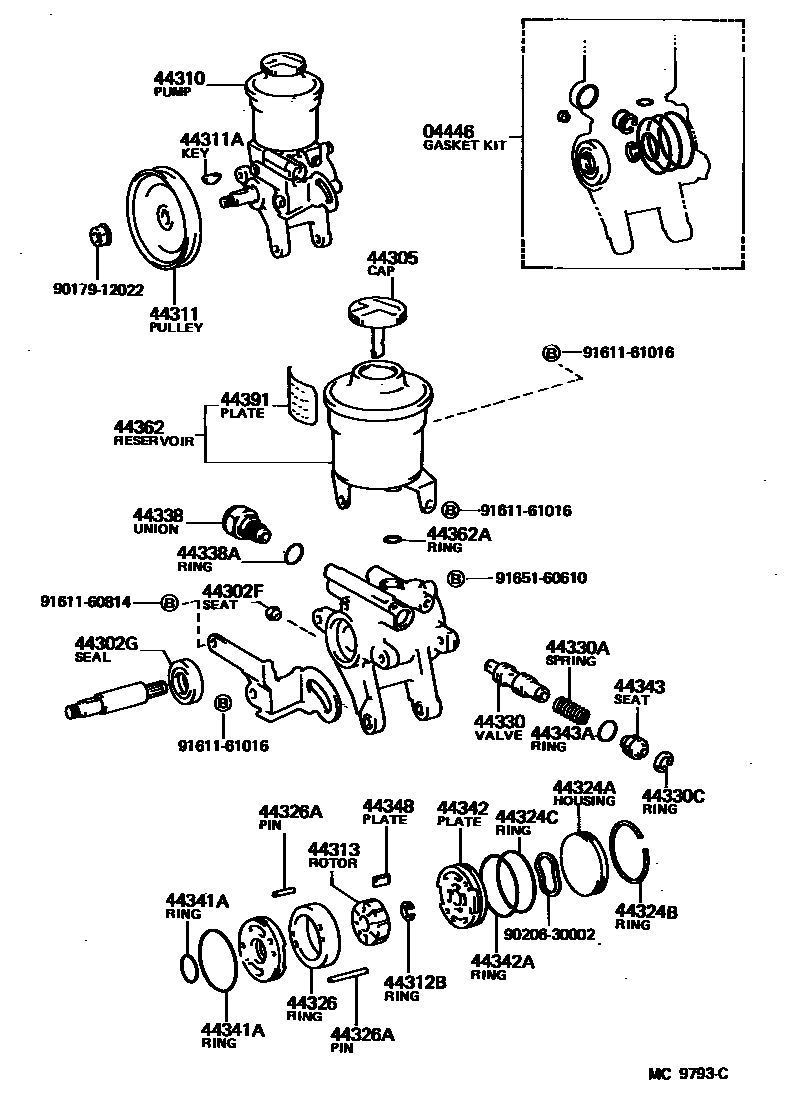

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1

04446GASKET KIT, POWER STEERING PUMP

main04446-12020iAE8#..APX,GT,SE,SR,XL198305-198704

44302FSEAT, UNION(FOR VANE PUMP HOUSING)

main90410-05035iAE8#..APX,GT,SE,SR,XL198305-198704

44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

main90311-18007iAE8#..APX,GT,SE,SR,XL198305-198704

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-30020iAE85198305-198704

main44305-32010iAE86..APX,GT198305-198704

44310PUMP ASSY, VANE

main44320-12070iAE86..APX,GT198305-198408

main44320-12071iAE86..APX,GT198408-198507

main44320-12072iAE86..APX,GT198507-198704

main44320-12090iAE85198305-198507

main44320-12091iAE85198507-198704

44311PULLEY, VANE PUMP

main44311-12050iAE86..APX,GT198305-198704

main44311-12060iAE85198305-198704

44311AKEY, VANE PUMP PULLEY

main90280-05008iAE8#..APX,GT,SE,SR,XL198305-198704

44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)

main90520-10003iAE8#..APX,GT,SE,SR,XL198305-198704

44313ROTOR, VANE PUMP

main44313-12010iAE8#..APX,GT,SE,SR,XL198305-198704

main44313-12020iAE8#..APX,GT,SE,SR,XL198305-198704

main44313-12030iAE8#..APX,GT,SE,SR,XL198305-198704

main44313-12040iAE8#..APX,GT,SE,SR,XL198305-198704

main44313-12050iAE8#..APX,GT,SE,SR,XL198305-198704

44324AHOUSING, PUMP, REAR

main44324-12030iAE8#..APX,GT,SE,SR,XL198305-198507

main44324-12031iAE8#..APX,GT,SE,XL198507-198704

44324BRING, HOLE SNAP(FOR PUMP HOUSING REAR)

main90521-62002iAE8#..APX,GT,SE,SR,XL198305-198704

44324CRING, O(FOR PUMP HOUSING REAR)

main90301-52001iAE8#..APX,GT,SE,SR,XL198305-198704

44326RING, CAM(FOR VANE PUMP)

main44325-12110iAE8#..APX,GT,SE,SR,XL198305-198704

main44325-12120iAE8#..APX,GT,SE,SR,XL198305-198704

main44325-12130iAE8#..APX,GT,SE,SR,XL198305-198704

main44325-12140iAE8#..APX,GT,SE,SR,XL198305-198704

main44325-12150iAE8#..APX,GT,SE,SR,XL198305-198704

44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)

main90250-04047iAE8#..APX,GT,SE,SR,XL198305-198704

main90250-04049iAE8#..APX,GT,SE,SR,XL198305-198704

44330VALVE ASSY, FLOW CONTROL

main44330-12070iAE85198305-198704

main44330-12080iAE85198305-198704

main44330-12090iAE85198305-198704

main44330-12100iAE85198305-198704

main44330-12110iAE85198305-198704

main44330-12120iAE85198305-198704

main44330-14010iAE86..APX,GT198305-198704

main44330-14020iAE86..APX,GT198305-198704

main44330-14030iAE86..APX,GT198305-198704

main44330-14040iAE86..APX,GT198305-198704

main44330-14050iAE86..APX,GT198305-198704

main44330-14060iAE86..APX,GT198305-198704

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90501-12103iAE8#..APX,GT,SE,SR,XL198507-198704

main90501-12447iAE8#..APX,GT,SE,SR,XL198305-198507

44330CRING, SNAP(FOR FLOW CONTROL VALVE)

main96151-01700iAE8#..APX,GT,SE,SR,XL198305-198704

44338UNION, PRESSURE PORT

main44308-12030iAE85198305-198507

main44308-12032iAE85198507-198704

main44308-12040iAE86..APX,GT198305-198408

main44308-12041iAE86..APX,GT198408-198507

main44308-12042iAE86..APX,GT198507-198704

44338ARING, O(FOR PRESSURE PORT UNION)

main90301-19003iAE8#..APX,GT,SE,SR,XL198305-198704

44341ARING, O(FOR VANE PUMP FRONT SIDE PLATE)

main90301-25001iAE8#..APX,GT,SE,SR,XL198305-198704

INNER

main90301-52001iAE8#..APX,GT,SE,SR,XL198305-198704

OUTER

44342PLATE, VANE PUMP SIDE, REAR

main44342-12020iAE8#..APX,GT,SE,SR,XL198305-198507

main44342-12021iAE8#..APX,GT,SE,XL198507-198704

44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)

main90301-52001iAE8#..APX,GT,SE,SR,XL198305-198704

44343SEAT, FLOW CONTROL SPRING

main44343-12010iAE8#..APX,GT,SE,SR,XL198305-198704

44343ARING, O(FOR FLOW CONTROL SPRING SEAT)

main96711-19014iAE8#..APX,GT,SE,SR,XL198305-198704

44348PLATE, VANE PUMP

main44345-12010×10iAE8#..APX,GT,SE,SR,XL198305-198704

main44345-12020×10iAE8#..APX,GT,SE,SR,XL198305-198704

main44345-12030×10iAE8#..APX,GT,SE,SR,XL198305-198704

main44345-12040×10iAE8#..APX,GT,SE,SR,XL198305-198704

main44345-12050×10iAE8#..APX,GT,SE,SR,XL198305-198704

44362RESERVOIR, OIL(FOR VANE PUMP)

main44306-12060iAE85198305-198704

main44360-12010iAE86..APX,GT198305-198704

44362ARING, O(FOR VANE PUMP OIL RESERVOIR)

main90301-12003iAE85198305-198704

44391PLATE, POWER STEERING OIL RESERVOIR CAUTION

main44391-30020iAE85198305-198704

9017912022

main90179-12022

9020630002

main90206-30002

9161160814

main91611-60814

9161161016

main91611-61016

9165160610

main91651-60610

33 parts on this diagram · 2 diagrams in section
