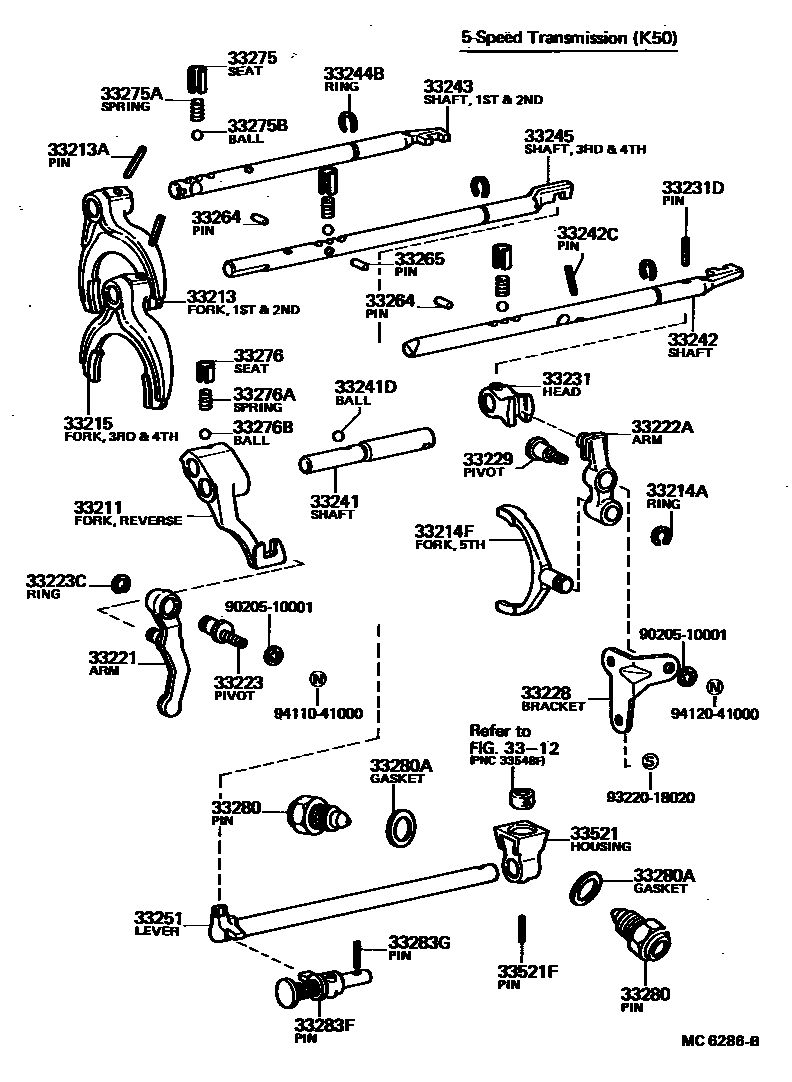

GEAR SHIFT FORK & LEVER SHAFT (MTM)
3312SHIFT LEVER & RETAINER
33213FORK, 1ST & 2ND SHIFT
33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)
33214ARING, SHAFT SNAP(FOR 5TH SHIFT FORK)
33214FFORK, 5TH SHIFT
33215FORK, 3RD & 4TH SHIFT
33221ARM, REVERSE SHIFT
33222AARM, 5TH SHIFT
33223PIVOT, SHIFT ARM
33223CRING, SHAFT SNAP(FOR SHIFT ARM PIVOT)
33228BRACKET, REVERSE SHIFT ARM
33229PIVOT, 5TH SHIFT ARM
33231HEAD, REVERSE SHIFT
33231DPIN(FOR REVERSE SHIFT HEAD)
33241SHAFT, REVERSE SHIFT FORK
33241DBALL, INTER-LOCK(FOR REVERSE SHIFT FORK)
33242SHAFT, GEAR SHIFT FORK, NO.1
33242CPIN, STRAIGHT (FOR SHIFT FORK SHAFT)
33243SHAFT, 1ST & 2ND SHIFT FORK
33244BRING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
33245SHAFT, 3RD & 4TH SHIFT FORK
33251LEVER, SHIFT & SELECT
33264PIN, OR BALL, SHIFT INTERLOCK, NO.1
33265PIN, SHIFT INTERLOCK, NO.2
33275SEAT, SHIFT DETENT BALL SPRING, NO.1
33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
33275BBALL, SHAFT DETENT
33276SEAT, SHIFT DETENT BALL SPRING, NO.2
33276ASPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL)
33276BBALL, SHIFT DETENT, NO.2
33280PIN ASSY, REVERSE RESTRICT
RH
LH
33280AGASKET, REVERSE RESTRICT PIN
33283FPIN, REVERSE RESTRICT
33283GPIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)
33521FPIN OR BOLT (FOR SHIFT LEVER HOUSING)
9020510001
main90205-10001
9322018020
main93220-18020
9411041000
main94110-41000
9412041000
main94120-41000
41 parts on this diagram · 2 diagrams in section
