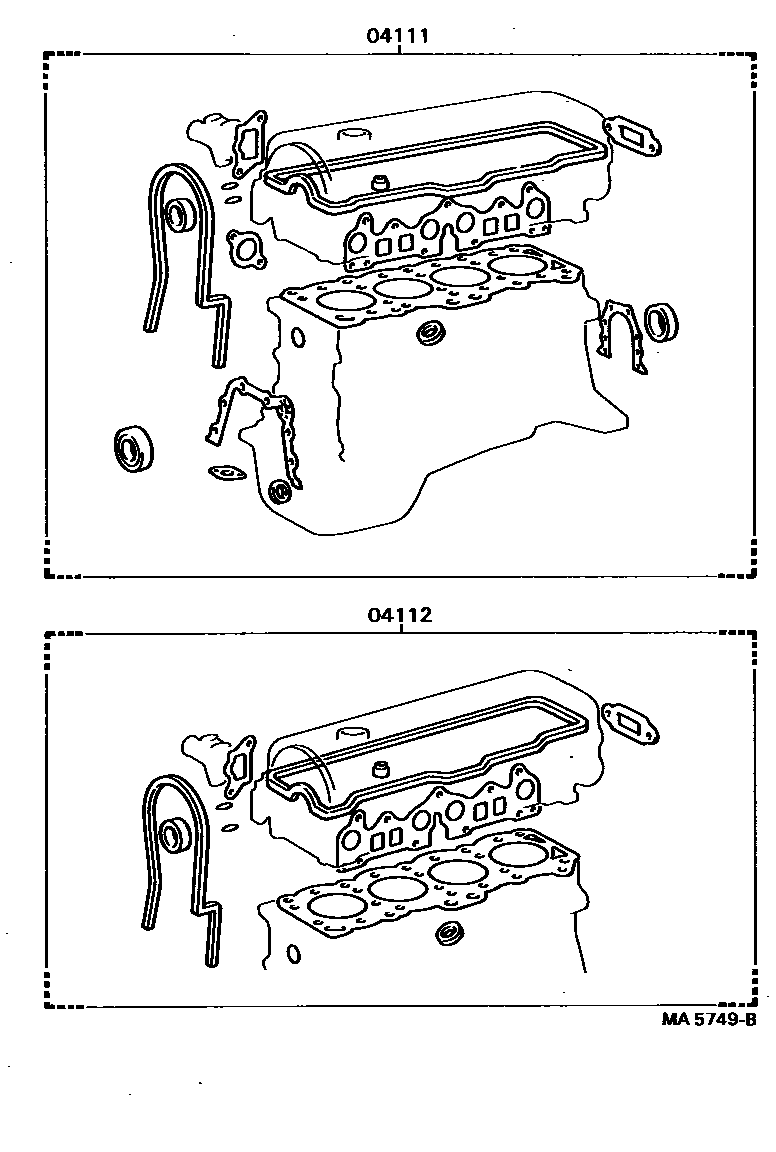

ENGINE OVERHAUL GASKET KIT

0001 1 0002 1

04111GASKET KIT, ENGINE OVERHAUL

main04111-15030i3AU..AE85198305-198704

sub04111-15031

main04111-16020i4AGEU..AE86198305-198403

sub04111-16021

main04111-16021i4AGEU..AE86198403-198405

sub04111-16100

main04111-16022i4AGEU..AE86198405-198506

sub04111-16023

main04111-16023i4AGEU..AE86198506-198704

sub04111-16024

04112GASKET KIT, ENGINE VALVE GRIND

main04112-15030i3AU..AE85198305-198704

sub04112-15031

main04112-16020i4AGEU..AE86198305-198403

sub04112-16021

main04112-16021i4AGEU..AE86198403-198405

sub04112-16100

main04112-16022i4AGEU..AE86198405-198506

sub04112-16023

main04112-16023i4AGEU..AE86198506-198704

sub04112-16024

2 parts on this diagram · 2 diagrams in section
