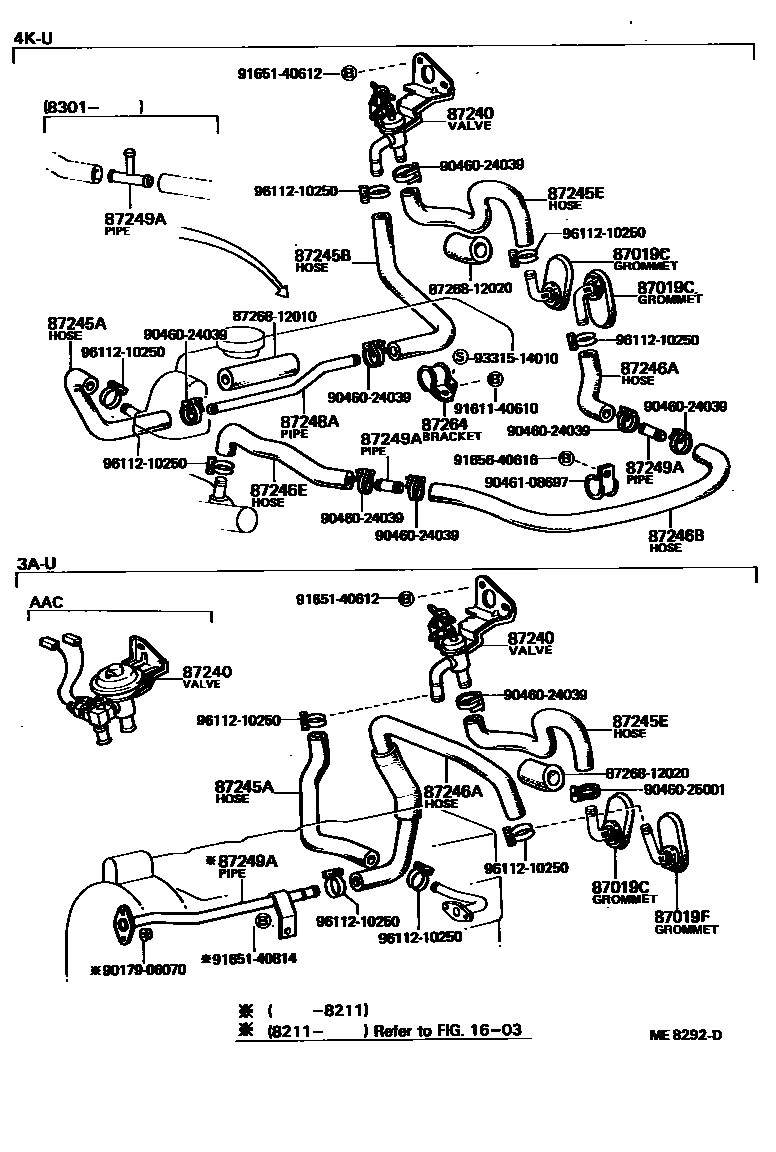

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

87019CGROMMET, HEATER HOSE

main90480-01015iAE70,TE70; CE70,KE70,TE7#197903-198304

87019FGROMMET, HEATER HOSE

main90480-01089iAE70197903-198304

87240VALVE ASSY, HEATER WATER

main87240-12100iAE70,CE70,KE70197903-198304

main87240-12110iTE7#197903-198304

main87240-12130iKE70..DX,SPD197903-198304

RYUCHYO HEATER

main88670-12020iTE71198108-198304

W/AUTOMATIC AIR CONDITIONER

main88670-12040iAE70198108-198304

W/AUTOMATIC AIR CONDITIONER

87245AHOSE, HEATER WATER, INLET A

main87245-12261iKE70197903-198108

main87245-12390iAE70197903-198304

main87245-12420iTE7#197903-198210

main87245-12590iKE70198108-198304

main87245-12600iCE70198202-198304

main87245-12850iTE71198210-198304

87245BHOSE, HEATER WATER, INLET B

main87245-12360iKE70197903-198304

87245EHOSE, HEATER WATER, INLET E

main87245-12350iAE70,CE70,KE70197903-198304

main87245-12410iTE7#197903-198304

87246AHOSE, HEATER WATER, OUTLET A

main87209-12270iAE70197903-197906

main87209-12272iAE70197906-198304

main87245-12380iKE70,TE70197903-198304

main87245-12460iTE71197903-198304

main87245-12610iCE70198202-198304

87246BHOSE, HEATER WATER, OUTLET B

main87245-12450iTE70..SE,ST,XL197908-198108

W/POWER STEERING

main87245-12470iKE70197903-198301

main87245-12580iTE70197908-198108

main87245-12860iKE70198301-198304

87246EHOSE, HEATER WATER, OUTLET E

main87245-12370iKE70197903-198304

main87245-12430iTE70197908-198108

main87245-12440iTE71197903-198304

main87245-14700iTE70..SE,ST,XL197908-198108

W/POWER STEERING

87248APIPE, HEATER WATER INLET, A

main87208-20140iCE70198202-198304

main87248-12150iKE70197903-198108

main87248-12220iKE70198108-198304

87249APIPE, HEATER WATER OUTLET, A

main87208-12011iAE70197903-197906

main87208-12012iAE70197906-198211

main87248-10150iKE70198301-198304

3WAY

main87248-14090iKE70,TE71198301-198304

2WAY

87264BRACKET, HEATER WATER HOSE

main87263-12130iKE70197903-198304

main87263-12190iCE70198202-198304

8726812010COCK, WATER HOSE DRAIN(FOR REAR HEATER)

main87268-12010

8726812020COCK, WATER HOSE DRAIN(FOR REAR HEATER)

main87268-12020

9017906070

main90179-06070

9046024039

main90460-24039

9046025001

main90460-25001

9046108697

main90461-08697

9161140610

main91611-40610

9165140612

main91651-40612

9165140814

main91651-40814

9165640616

main91656-40616

9331514010

main93315-14010

9611210250

main96112-10250

25 parts on this diagram · 3 diagrams in section
