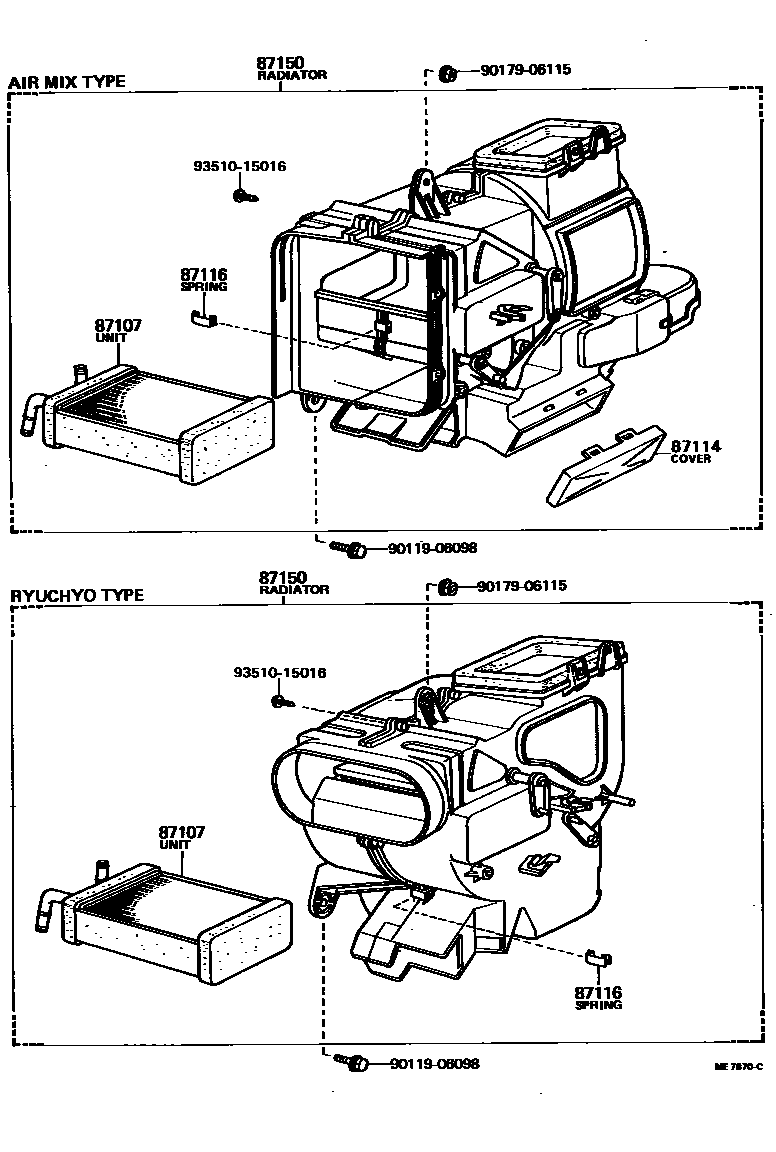

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1 0002 1 0003 1

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-12180iKE70..DX,SPD197903-198304

main87107-12190iKE70,TE71..GT,SE,SR,TRR,TRS,XL198108-198304

main87107-12200iCE70198202-198304

main87107-12210iAE70197903-198304

main87107-12220iAE70197903-198304

COLD SPEC

main87107-12260iCE70198202-198304

COLD SPEC

87114COVER, HEATER

main87114-12070iCE70198202-198304

87116SPRING, HEATER CASE FASTENING

main87116-14010×4iAE70,CE70,KE70,TE7#197903-198304

87150RADIATOR ASSY, HEATER

main87150-12010iKE70..DX,SPD197903-198304

main87150-12020iKE70,TE7#..GT,SE,SR,ST,TRR,XL197903-198108

main87150-12030iKE70,TE7#197903-198108

AIR MIX HEATER

main87150-12040iAE70197903-198108

main87150-12050iAE70197903-198108

COLD SPEC

main87150-12090iCE70198202-198304

COLD SPEC

main87150-12100iKE70,TE71..GT,SE,SR,TRR,TRS,XL198108-198304

main87150-12110iKE70,TE71198108-198304

COLD SPEC

main87150-12120iAE70198108-198304

main87150-12130iAE70198108-198304

COLD SPEC

main87150-12170iCE70198203-198304

9011906098

main90119-06098

9017906115

main90179-06115

9351015016

main93510-15016

7 parts on this diagram · 3 diagrams in section
