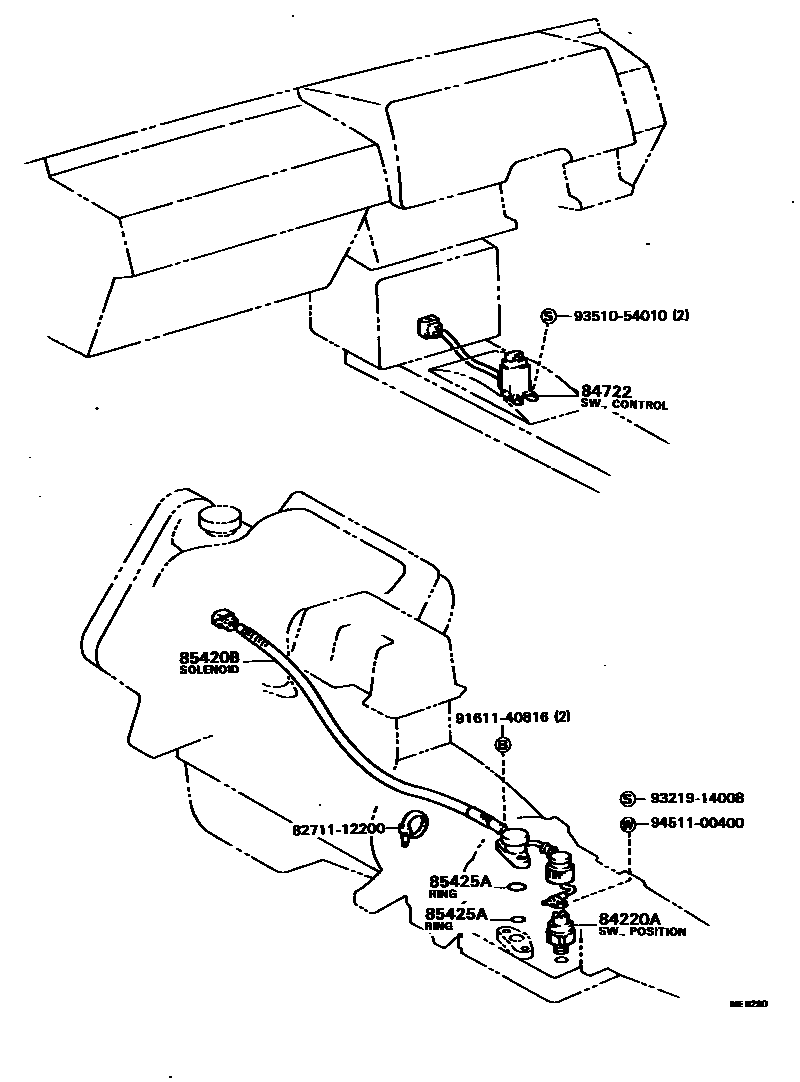

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

84220ASWITCH ASSY, TRANSMISSION POSITION INDICATOR

main84220-30050iCE70..4FC198202-198304

84722SWITCH, TRANSMISSION CONTROL

main84722-14060iCE70..4FC198202-198304

85420BSOLENOID ASSY, TRANSMISSION

main85420-22040iCE70..4FC198202-198304

85425ARING, O (FOR OVERDRIVE SOLENOID)

main90301-11001iCE70..4FC198202-198304

OD=11

main90301-23001iCE70..4FC198202-198304

OD=23.5

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9161140816

main91611-40816

9321914008

main93219-14008

9351054010

main93510-54010

9451100400

main94511-00400

9 parts on this diagram · 1 diagram in section
