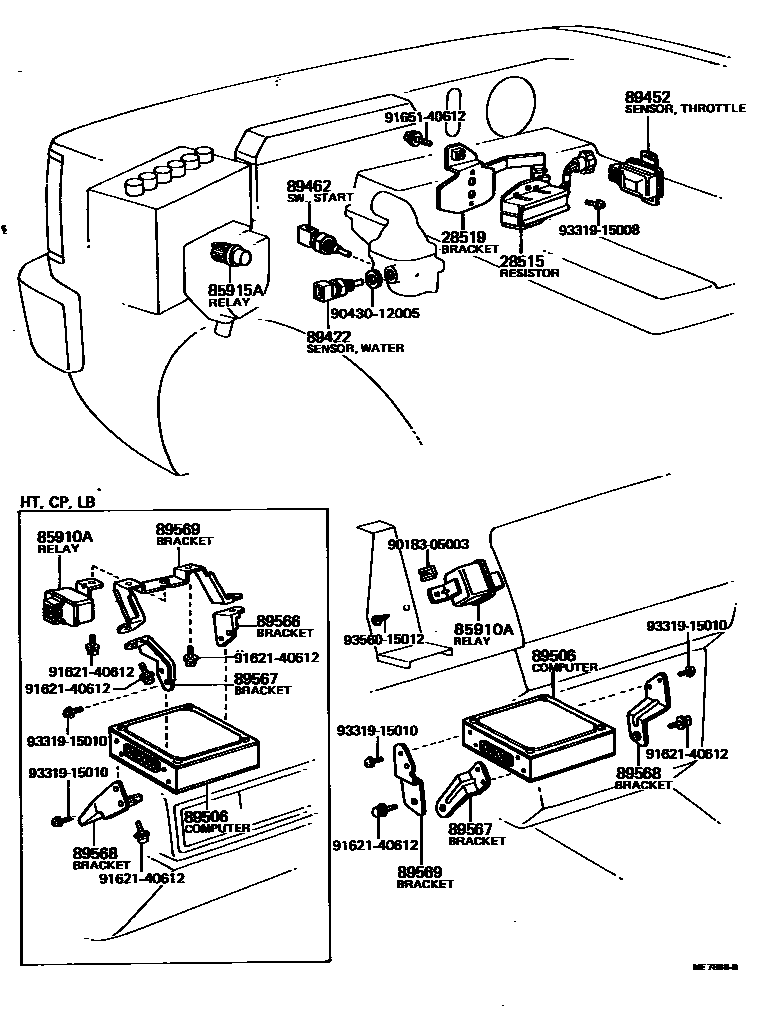

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

28515RESISTOR, SOLENOID

main28515-12011i2TGEU..TE71197903-198108

main28515-26030i2TGEU..TE71198108-198304

28519BRACKET, SOLENOID RESISTOR

main28519-26010i2TGEU..TE71197903-198108

main28519-26020i2TGEU..TE71198108-198304

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-14020iTE71198009-198108

main85910-30040iTE71197903-198009

sub85910-14020

main85910-30050iTE71198108-198304

85915ARELAY, MAIN

main90987-02004iTE71197903-198304

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-30020iTE71197903-198304

sub89422-12010

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-12010iTE71197903-198304

89462SWITCH, START INJECTOR TIME

main89462-30011iTE71197903-198304

89506COMPUTER SET, FUEL INJECTION

main89561-12030iTE71197903-198008

sub89561-12031

main89561-12031iTE71198008-198108

main89561-12032iTE71198108-198304

89566BRACKET, FUEL INJECTION COMPUTER

main89566-12010iTE71..2D197903-198108

main89566-12020iTE71..4D198108-198304

main89566-12030iTE71..2D198108-198304

89567BRACKET, FUEL INJECTION COMPUTER

main89567-12020iTE71..2D197903-198108

main89567-12030iTE71..4D197903-198108

main89567-12040iTE71..4D198108-198304

main89567-12050iTE71..2D198108-198304

89568BRACKET, FUEL INJECTION COMPUTER

main89568-12020iTE71..2D197903-198108

main89568-12030iTE71..4D197903-198108

main89568-12040iTE71..4D198108-198304

main89568-12050iTE71..2D198108-198304

89569BRACKET, FUEL INJECTION COMPUTER

main89569-12020iTE71..2D197903-198304

main89569-12030iTE71..4D197903-198108

main89569-12040iTE71..4D198108-198304

9018305003

main90183-05003

9043012005

main90430-12005

9162140612

main91621-40612

9165140612

main91651-40612

9331915008

main93319-15008

9331915010

main93319-15010

9356015012

main93560-15012

19 parts on this diagram · 2 diagrams in section
