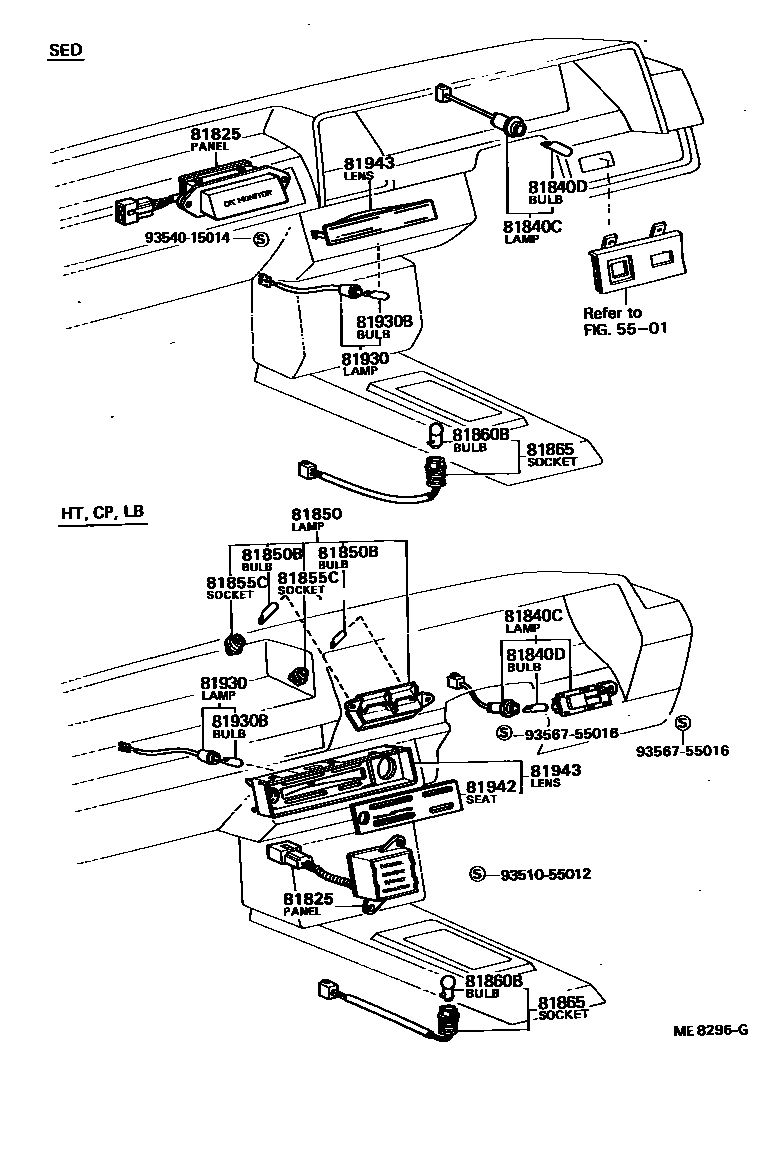

INDICATOR

0001 1 0002 1

5501

81825PANEL ASSY, CONDITION INDICATOR

main81820-12070iTE71..2D197903-198108

main81820-12080iTE71..4D197903-198108

81840CLAMP ASSY, DOOR INDICATOR

main81840-12010iAE70,KE70,TE7#..(GT,SE,SR,ST,TRR,XL)..2D197903-198108

main81840-12011iAE70,KE70,TE71..(GT,SE,SR,SX,TRR,TRS,XL)..2D198108-198304

main81850-12050iAE70,CE70,KE70,TE71..(GT,SE,SX,XL)..4D197903-198304

81840DBULB, DOOR INDICATOR LAMP

main90981-11018iAE70,KE70,TE7#..(GT,SE,SR,ST,TRR,XL)..2D197903-198304

12V 1.4W

main99132-12034iAE70,KE70,TE7#..(GT,SE,XL)..4D197903-198304

12V 3.4W

81850LAMP ASSY, INDICATOR

main81850-12060iAE70,KE70,TE70..(DX,ST,XL)..2D197903-198108

main81850-12070iAE70,TE7#..(GT,SE,SR,TRR)..2D197903-198108

main81850-12080iTE71..2D197903-198108

W/OK MONITOR

81850BBULB, INDICATOR LAMP

main90981-11018iAE70,TE7#..(GT,SE,SR,TRR)..2D197903-198108

main99132-12034iAE70,KE70,TE7#..2D197903-198108

81855CSOCKET & WIRE, INDICATOR LAMP

main83101-10010iAE70,KE70,TE7#..2D197903-198108

12V 3.4W

sub83101-14030

main83101-22010iAE70,TE7#..(GT,SE,SR,TRR)..2D197903-198108

12V 1.4W

sub83101-14040

81860BBULB, TRANSMISSION INDICATOR LAMP

main99132-11017iAE70,KE70,TE70..ATM197903-198304

81865SOCKET AND WIRE, TRANSMISSION INDICATOR LAMP

main35906-12030iAE70,KE70,TE70..ATM197903-198304

81930LAMP ASSY, HEATER CONTROL INDICATOR, NO.1

main81850-12040iAE70,KE70,TE7#197903-198008

main81850-12041iAE70,KE70,TE7#198008-198108

main81850-12042iAE70,CE70,KE70,TE71198108-198304

81930BBULB, HEATER CONTROL INDICATOR LAMP

main90981-11018iAE70,KE70,TE71197903-198304

81942SHEET, HEATER CONTROL NAME

main81942-12030iAE70,TE71..2D198108-198304

W/AUTOMATIC AIR CONDITIONER

main81942-12040iKE70..DX..2D198108-198304

W/RYUCHYO *HEA&AIR CONDITIONER

81943LENS, HEATER CONTROL INDICATOR

main81940-12010iAE70,KE70,TE7#..2D197903-198008

W/AIR MIX *HEA

main81940-12011iAE70,KE70,TE7#..2D198008-198108

W/AIR MIX *HEA

sub81940-12012

main81940-12012iAE70,KE70,TE71..2D198108-198304

W/AIR MIX *HEA

main81940-12020iKE70..DX..2D197903-198008

main81940-12021iKE70..DX..2D198008-198108

sub81940-12022

main81940-12022iKE70..DX..2D198108-198304

W/RYUCHYO *HEA

main81943-12040iAE70,KE70,TE7#..4D197903-198008

W/AIR MIX *HEA

main81943-12041iAE70,KE70,TE7#..4D198008-198108

W/AIR MIX *HEA

sub81943-12042

main81943-12042iAE70,CE70,KE70,TE71..4D198108-198304

W/AIR MIX *HEA

main81943-12100iKE70..(DX,SPD)..4D197903-198008

main81943-12101iKE70..(DX,SPD)..4D198008-198108

sub81943-12180

main81943-12102iKE70..(DX,SPD)..4D198108-198304

sub81943-12180

main81943-12110iAE70,TE71..4D198108-198304

W/AUTOMATIC AIR CONDITIONER

9351055012

main93510-55012

9354015014

main93540-15014

9356755016

main93567-55016

16 parts on this diagram · 2 diagrams in section
