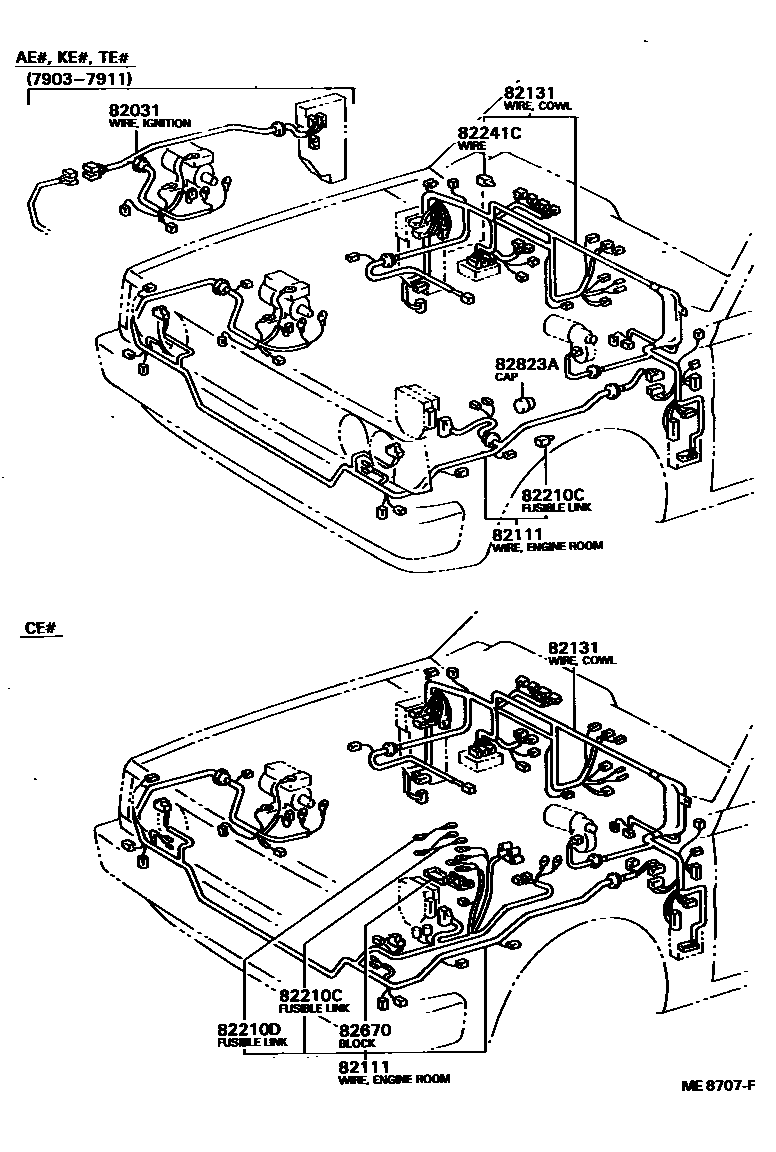

WIRING & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

82031WIRE SUB-ASSY, IGNITION COIL

main82031-12450iKE70197903-197911

main82031-12460iTE70197908-197911

main82031-12470iTE71197903-197911

main82031-12510iAE70197903-197911

82111WIRE, ENGINE ROOM MAIN

main82111-12010iKE70198108-198304

main82111-12020iAE70198108-198304

main82111-12030iTE71198108-198304

main82111-12060iCE70198202-198304

main82111-12160iCE70..4FC198202-198304

COLD SPEC

main82270-12510iKE70197903-197911

main82270-12511iKE70197911-198102

main82270-12512iKE70198102-198108

main82270-12520iAE70,TE70197903-197911

main82270-12521iAE70197911-198108

main82270-12530iTE71197903-197911

main82270-12531iTE71197911-198102

main82270-12532iTE71198102-198108

main82270-12600iTE70197911-198102

main82270-12601iTE70198102-198108

82131WIRE, COWL

main82131-12010iKE70..(DX,SPD)..4D198108-198304

main82131-12020iKE70..(SE,XL)..4D198108-198205

main82131-12021iKE70..(SE,XL)..4D198205-198304

main82131-12030iKE70..2D198108-198304

main82131-12040iAE70..4D198108-198304

main82131-12050iAE70..2D198108-198304

main82131-12060iTE71..4D198108-198304

main82131-12070iTE71..2D198108-198304

main82131-12140iCE70198202-198304

main82230-12600iKE70..4F..(DX,SPD)..4D197903-198008

main82230-12601iKE70..4F..(DX,SPD)..4D198008-198108

main82230-12610iKE70..DX..2D197903-198003

main82230-12620iAE70..4D197903-198008

main82230-12621iAE70..4D198008-198102

main82230-12622iAE70..4D198102-198108

main82230-12630iAE70..2D197903-198008

main82230-12631iAE70..2D198008-198102

main82230-12632iAE70..2D198102-198108

main82230-12640iTE70..4D197908-198008

main82230-12641iTE70..4D198008-198108

main82230-12650iTE70..2D197908-198008

main82230-12651iTE70..2D198008-198108

main82230-12660iTE71..4D197903-198008

main82230-12661iTE71..4D198008-198108

main82230-12670iTE71..2D197903-198008

main82230-12671iTE71..2D198008-198108

main82230-12770iKE70..4F..XL..4D;KE70..(2FC,5F)..4D197903-198008

main82230-12771iKE70..4F..XL..4D;KE70..(2FC,5F)..4D198008-198108

main82230-12780iKE70..(ST,XL)..2D197903-198008

main82230-12781iKE70..2D198008-198108

82210CFUSIBLE LINK

main90982-08021iAE70,KE70,TE71198108-198304

main90982-08052iAE70,KE70,TE7#197903-198108

main90982-08121iKE70197903-198304

RADIATOR FAN

main90982-08171iCE70198202-198304

82210DFUSIBLE LINK

main90982-08100iTE71197903-198108

main90982-08172iCE70198202-198304

main90982-08192iTE71198108-198304

82241CWIRE, RELAY

main82241-12090iKE70198102-198108

82670BLOCK ASSY, JUNCTION, NO.1

main82670-12010iCE70198202-198304

82823CAP, TERMINAL, NO.1

main82823-12020iAE70,TE71197903-198304

82823ACAP, TERMINAL, NO.2

main82823-30010iAE70,KE70198108-198304

9 parts on this diagram · 8 diagrams in section
