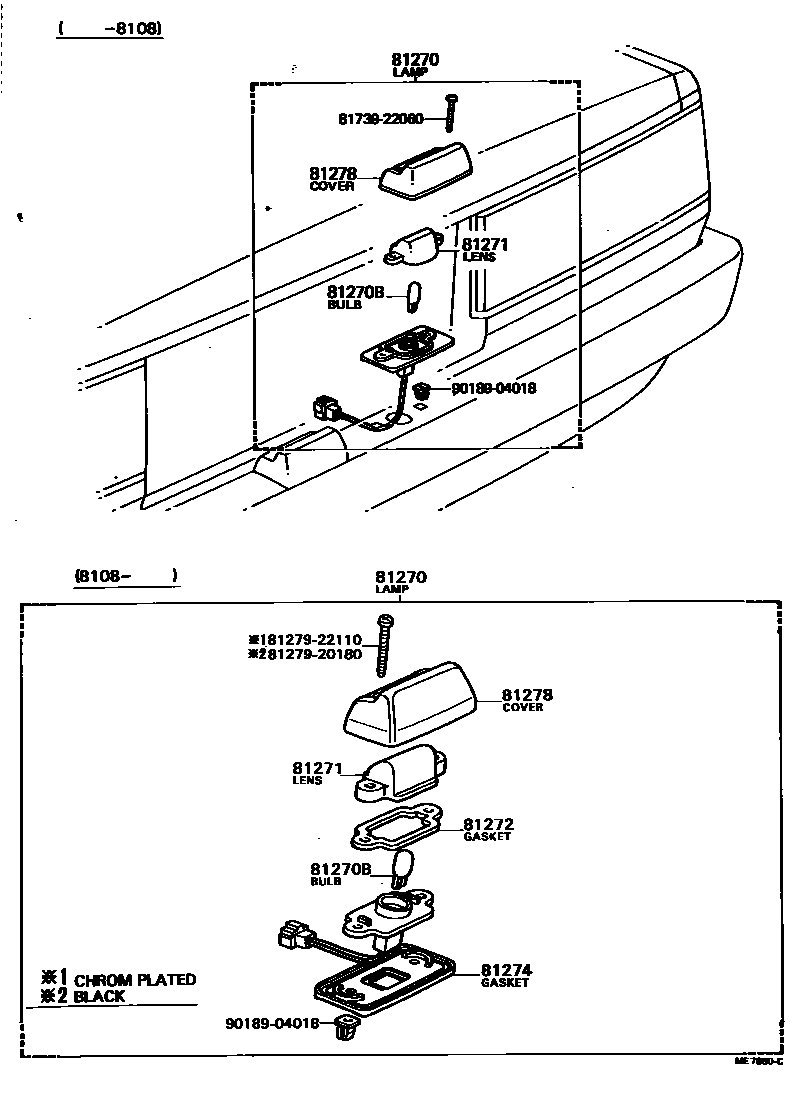

REAR LICENSE PLATE LAMP

0001 1 0002 1

81270LAMP ASSY, LICENSE PLATE

main81270-19455iAE70,TE70..4D; AE70,TE70..SE..2D; KE70,TE71..(GT,XL)..4D197903-198010

RH,W/URETHANE BUMPER

main81270-19456iAE70,TE70..4D; AE70,TE70..SE..2D; KE70,TE71..(GT,XL)..4D198010-198108

RH,W/URETHANE BUMPER

main81270-19495iAE70,KE70,TE7#..(DX,GT,SR,ST,TRR,XL)..2D; KE70..DX..4D197903-198010

RH,W/URETHANE BUMPER

main81270-19545×2iAE70,KE70..HT,LB,SED197903-198108

main81270-19555×2iAE70,KE70..CP197903-198108

main81270-19695iAE70,KE70,TE7#..(DX,GT,SR,ST,TRR,XL)..2D; KE70..DX..4D198010-198108

RH,W/URETHANE BUMPER

main81270-19875iAE70..HT..(3FC,5F)..SE198203-198203

RH,LIMITED EDITION

main81270-29535×2iCE70..SE,XL198202-198304

main81270-29545×2iAE70,KE70,TE71..DX,SPD,SR,SX,TRS; AE70,KE70..(SE,XL)..2D198205-198304

BLACK BUMPER

main81690-19075iAE70,TE70..4D; AE70,TE70..SE..2D; KE70,TE71..(GT,XL)..4D197903-198010

LH,W/URETHANE BUMPER

main81690-19076iAE70,TE70..4D; AE70,TE70..SE..2D; KE70,TE71..(GT,XL)..4D198010-198108

LH,W/URETHANE BUMPER

main81690-19085iAE70,KE70,TE7#..(DX,GT,SR,ST,TRR,XL)..2D; KE70..DX..4D197903-198010

LH,W/URETHANE BUMPER

main81690-19135iAE70,KE70,TE7#..(DX,GT,SR,ST,TRR,XL)..2D; KE70..DX..4D198010-198108

LH,W/URETHANE BUMPER

main81690-19215iAE70..HT..(3FC,5F)..SE198203-198203

LH,LIMITED EDITION

81270BBULB (FOR LICENSE PLATE LAMP)

main99132-11100×2iAE70,KE70,TE7#..DX,GT,SE,SR,ST,TRR,XL197903-198108

main99132-12050×2iAE70,KE70197903-198108

81271LENS, LICENSE PLATE LAMP

main81271-12170×2iAE70,KE70197903-198108

main81271-22110×2iAE70,CE70,KE70,TE71..DX,SE,SPD,SR,SX,TRS,XL198108-198304

81272GASKET, LICENSE PLATE LAMP LENS

main81272-22110×2iAE70,CE70,KE70,TE71..DX,SE,SPD,SR,SX,TRS,XL198108-198304

81274GASKET, LICENSE PLATE LAMP BODY

main81274-16020iKE70..2D;KE70..(SE,XL)..4D;KE70..(3FC,4F)..DX..4D;AE70,CE70,TE71..DX,GT,SE,SR,SX,TRR,TRS,XL198108-198304

RH,W/URETHANE BUMPER

main81274-22110×2iAE70,CE70,KE70,TE71..DX,SE,SPD,SR,SX,TRS,XL198108-198304

main81694-16010iAE70,KE70,TE7#..DX,GT,SE,SR,ST,TRR,XL197903-198108

LH,W/URETHANE BUMPER

81278COVER, LICENSE PLATE LAMP

main81271-12220iAE70..HT..(3FC,5F)..SE198203-198203

RH,LIMITED EDITION

main81271-16020iAE70,TE70..4D; AE70,TE70..SE..2D; KE70,TE71..(GT,XL)..4D197903-198010

RH,W/URETHANE BUMPER

main81271-16021iAE70,TE70..4D; AE70,TE70..SE..2D; KE70,TE71..(GT,XL)..4D198010-198108

RH,W/URETHANE BUMPER

main81271-16030iAE70,KE70,TE7#..(DX,GT,SR,ST,TRR,XL)..2D; KE70..DX..4D197903-198010

RH,W/URETHANE BUMPER

main81271-16090iAE70,KE70,TE7#..(DX,GT,SR,ST,TRR,XL)..2D; KE70..DX..4D198010-198108

RH,W/URETHANE BUMPER

main81276-10101iKE70..(DX,SR)..2D;AE70,TE71..SR,SX,TRS198108-198304

main81276-12170×2iAE70,KE70..HT,LB,SED197903-198108

main81276-12180×2iAE70,KE70..CP197903-198108

main81276-22110×2iKE70..DX..4D;AE70..DX,SE,XL;KE70..SE,SPD,XL198108-198304

main81691-12070iAE70..HT..(3FC,5F)..SE198203-198203

LH,LIMITED EDITION

main81691-16010iAE70,TE70..4D; AE70,TE70..SE..2D; KE70,TE71..(GT,XL)..4D197903-198010

LH,W/URETHANE BUMPER

main81691-16011iAE70,TE70..4D; AE70,TE70..SE..2D; KE70,TE71..(GT,XL)..4D198010-198108

LH,W/URETHANE BUMPER

main81691-16020iAE70,KE70,TE7#..(DX,GT,SR,ST,TRR,XL)..2D; KE70..DX..4D197903-198010

LH,W/URETHANE BUMPER

main81691-16070iAE70,KE70,TE7#..(DX,GT,SR,ST,TRR,XL)..2D; KE70..DX..4D198010-198108

LH,W/URETHANE BUMPER

8127920180WASHER, SIDE TURN SIGNAL LAMP

main81279-20180

8127922110WASHER, SIDE TURN SIGNAL LAMP

main81279-22110

8173922060

main81739-22060

9018904018

main90189-04018

10 parts on this diagram · 2 diagrams in section
