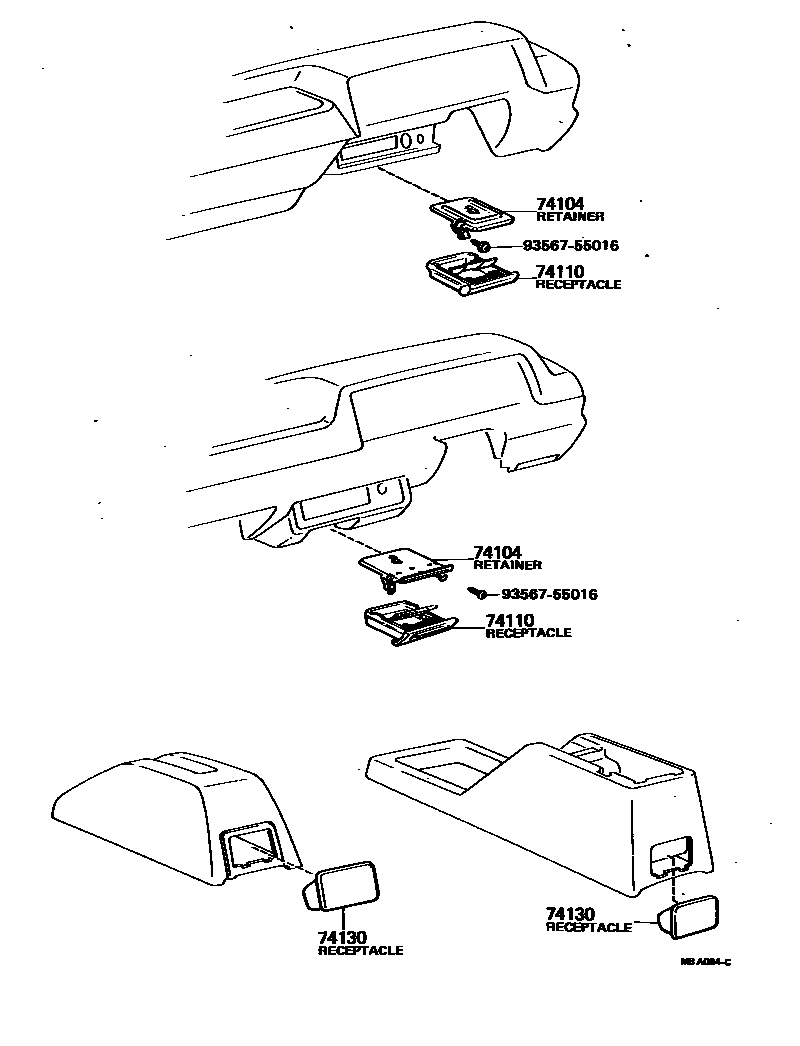

ASH RECEPTACLE

74104RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1

main74104-12130iAE70,CE70,KE70,TE7#..4D197903-198304

main74104-12140iAE70,KE70,TE7#..2D197903-198304

74110RECEPTACLE ASSY, INSTRUMENT PANEL ASH

main74102-12150-01iAE70,CE70,KE70,TE7#..4D197903-198304

BLACK,BLACK,TRIM2#

main74102-12150-04iAE70,CE70,KE70,TE7#..4D197903-198304

BLUE,BLUE,TRIM8#

main74102-12150-05iAE70,KE70,TE71..4D197903-197908

BEIGE,BEIGE,TRIM4#

main74102-12150-06iAE70,CE70,KE70,TE71..4D198108-198304

DARK BROWN,BROWN,TRIM4#

main74102-12150-15iAE70,KE70,TE7#..4D197908-198108

BEIGE,BEIGE,TRIM4#

main74102-12160-01iAE70,KE70,TE7#..2D197903-198304

BLACK,BLACK,TRIM2#

main74102-12160-02iAE70,KE70..HT..XL198108-198304

LISSE,TERRA COTTA,RED/MAROON,TRIM3#

main74102-12160-04iAE70,KE70,TE7#..2D197903-198304

BLUE,BLUE,TRIM8#

main74102-12160-06iAE70,KE70,TE7#..2D197903-198304

DARK BROWN,BROWN,TRIM4#

74130RECEPTACLE ASSY, REAR ASH

main74130-12040-01iAE70,CE70,KE70,TE7#197903-198304

BLACK,BLACK,TRIM2#

main74130-12040-04iAE70,CE70,KE70,TE7#197903-198304

BLUE,BLUE,TRIM8#

main74130-12040-05iAE70,KE70,TE71..4D197903-197908

BEIGE,BEIGE,TRIM4#

main74130-12040-06iAE70,CE70,KE70,TE7#197903-198304

DARK BROWN,BROWN,TRIM4#

9356755016

main93567-55016

4 parts on this diagram · 1 diagram in section
