EPC Data

SEAT BELT & CHILD RESTRAINT SEAT

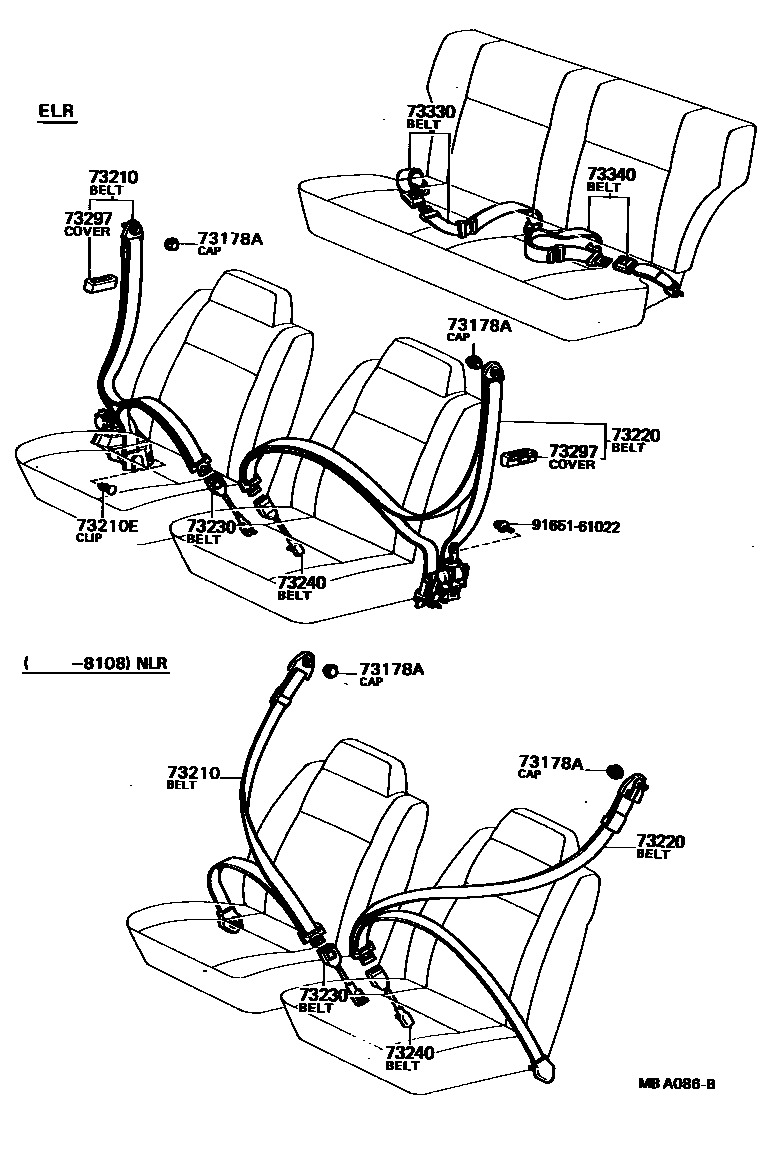

Parts diagram
73178ACAP, SEAT BELT ANCHOR COVER
main73178-12010-04×2i197903-198210
BLUE,BLUE,TRIM8#
main73178-12010-11×2i198210-198304
BLACK,BLACK,TRIM2#
main73178-12010-15×2i197903-198008
BEIGE,BEIGE,TRIM4#
main73178-12010-26×2i198210-198304
DARK BROWN,BROWN,TRIM4#
main73178-12010-36×2i198008-198108
LIGHT BROWN,BROWN,TRIM4#
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-12240-01i197903-198108
TOKAIRIKA,*ELR,BLACK,BLACK,TRIM2#
main73210-12240-04i197903-198108
TOKAIRIKA,*ELR,BLUE,BLUE,TRIM8#
main73210-12240-05i197903-198008
TOKAIRIKA,*ELR,BEIGE,BEIGE,TRIM4#
main73210-12240-06i198008-198108
TOKAIRIKA,*ELR,LIGHT BROWN,BROWN,TRIM4#
main73210-12250-01i197903-198108
TAKATA,*ELR,BLACK,BLACK,TRIM2#
main73210-12250-04i197903-198108
TAKATA,*ELR,BLUE,BLUE,TRIM8#
main73210-12250-05i197903-198008
TAKATA,*ELR,BEIGE,BEIGE,TRIM4#
main73210-12250-06i198008-198108
TAKATA,*ELR,LIGHT BROWN,BROWN,TRIM4#
main73210-12260-01i197903-198003
*NLR,BLACK,BLACK,TRIM2#
main73210-12260-05i197903-198003
*NLR,BEIGE,BEIGE,TRIM4#
main73210-12261-01i198003-198108
*NLR,BLACK,BLACK,TRIM2#
main73210-12261-05i198003-198008
*NLR,BEIGE,BEIGE,TRIM4#
main73210-12261-06i198008-198108
*NLR,LIGHT BROWN,BROWN,TRIM4#
main73210-12270-01i197903-198108
BLACK,BLACK,TRIM2#
main73210-12270-04i197903-198108
BLUE,BLUE,TRIM8#
main73210-12270-06i197903-198108
DARK BROWN,BROWN,TRIM4#
main73210-12280-01i197903-198108
BLACK,BLACK,TRIM2#
main73210-12280-04i197903-198108
BLUE,BLUE,TRIM8#
main73210-12280-06i197903-198108
DARK BROWN,BROWN,TRIM4#
main73210-12282-01i198108-198304
BLACK,BLACK,TRIM2#
main73210-12282-04i198108-198304
BLUE,BLUE,TRIM8#
main73210-12282-16i198108-198304
DARK BROWN,BROWN,TRIM4#
main73210-12390-01i198108-198210
TOKAIRIKA,BLACK,BLACK,TRIM2#
main73210-12390-04i198108-198210
TOKAIRIKA,BLUE,BLUE,TRIM8#
main73210-12390-16i198108-198210
TOKAIRIKA,DARK BROWN,BROWN,TRIM4#
main73210-12391-01i198210-198304
TOKAIRIKA,BLACK,BLACK,TRIM2#
main73210-12391-04i198210-198304
TOKAIRIKA,BLUE,BLUE,TRIM8#
main73210-12391-16i198210-198304
TOKAIRIKA,DARK BROWN,BROWN,TRIM4#
main73210-12400-01i198108-198210
TAKATA,BLACK,BLACK,TRIM2#
main73210-12400-04i198108-198210
TAKATA,BLUE,BLUE,TRIM8#
main73210-12400-16i198108-198210
TAKATA,DARK BROWN,BROWN,TRIM4#
main73210-12401-01i198210-198304
TAKATA,BLACK,BLACK,TRIM2#
main73210-12401-04i198210-198304
TAKATA,BLUE,BLUE,TRIM8#
main73210-12401-16i198210-198304
TAKATA,DARK BROWN,BROWN,TRIM4#
main73210-12410-01i198108-198304
BLACK,BLACK,TRIM2#
main73210-12410-04i198108-198304
BLUE,BLUE,TRIM8#
main73210-12410-16i198108-198304
DARK BROWN,BROWN,TRIM4#
73210ECLIP (FOR FRONT SEAT OUTER BELT)
main64371-12010-21×2i197903-198006
BLACK,BLACK,TRIM2#
main64371-12010-24×2i197903-198006
BLUE,BLUE,TRIM8#
main64371-12010-46×2i197903-198006
LIGHT BROWN,BROWN,TRIM4#
main90467-09020-01×2i198006-198304
BLACK,BLACK,TRIM2#
main90467-09020-04×2i198006-198304
BLUE,BLUE,TRIM8#
main90467-09020-06×2i198006-198108
LIGHT BROWN,BROWN,TRIM4#
main90467-09020-26×2i198108-198304
DARK BROWN,BROWN,TRIM4#
73220BELT ASSY, FRONT SEAT OUTER, LH
main73210-12260-01i197903-198003
*NLR,BLACK,BLACK,TRIM2#
main73210-12260-05i197903-198003
*NLR,BEIGE,BEIGE,TRIM4#
main73210-12261-01i198003-198108
*NLR,BLACK,BLACK,TRIM2#
main73210-12261-05i198003-198008
*NLR,BEIGE,BEIGE,TRIM4#
main73210-12261-06i198008-198108
*NLR,LIGHT BROWN,BROWN,TRIM4#
main73220-12160-01i197903-198108
TOKAIRIKA,*ELR,BLACK,BLACK,TRIM2#
main73220-12160-04i197903-198108
TOKAIRIKA,*ELR,BLUE,BLUE,TRIM8#
main73220-12160-05i197903-198008
TOKAIRIKA,*ELR,BEIGE,BEIGE,TRIM4#
main73220-12160-06i198008-198108
TOKAIRIKA,*ELR,LIGHT BROWN,BROWN,TRIM4#
main73220-12170-01i197903-198108
TAKATA,*ELR,BLACK,BLACK,TRIM2#
main73220-12170-04i197903-198108
TAKATA,*ELR,BLUE,BLUE,TRIM8#
main73220-12170-05i197903-198008
TAKATA,*ELR,BEIGE,BEIGE,TRIM4#
main73220-12170-06i198008-198108
TAKATA,*ELR,LIGHT BROWN,BROWN,TRIM4#
main73220-12180-01i197903-198108
BLACK,BLACK,TRIM2#
main73220-12180-04i197903-198108
BLUE,BLUE,TRIM8#
main73220-12180-06i197903-198108
DARK BROWN,BROWN,TRIM4#
main73220-12190-01i197903-198108
BLACK,BLACK,TRIM2#
main73220-12190-04i197903-198108
BLUE,BLUE,TRIM8#
main73220-12190-06i197903-198108
DARK BROWN,BROWN,TRIM4#
main73220-12192-01i198108-198304
BLACK,BLACK,TRIM2#
main73220-12192-04i198108-198304
BLUE,BLUE,TRIM8#
main73220-12192-16i198108-198304
DARK BROWN,BROWN,TRIM4#
main73220-12300-01i198108-198210
TOKAIRIKA,BLACK,BLACK,TRIM2#
main73220-12300-04i198108-198210
TOKAIRIKA,BLUE,BLUE,TRIM8#
main73220-12300-16i198108-198210
TOKAIRIKA,DARK BROWN,BROWN,TRIM4#
main73220-12301-01i198210-198304
TOKAIRIKA,BLACK,BLACK,TRIM2#
main73220-12301-04i198210-198304
TOKAIRIKA,BLUE,BLUE,TRIM8#
main73220-12301-16i198210-198304
TOKAIRIKA,DARK BROWN,BROWN,TRIM4#
main73220-12310-01i198108-198210
TAKATA,BLACK,BLACK,TRIM2#
main73220-12310-04i198108-198210
TAKATA,BLUE,BLUE,TRIM8#
main73220-12310-16i198108-198210
TAKATA,DARK BROWN,BROWN,TRIM4#
main73220-12311-01i198210-198304
TAKATA,BRACK,BLACK,TRIM2#
main73220-12311-04i198210-198304
TAKATA,BLUE,BLUE,TRIM8#
main73220-12311-16i198210-198304
TAKATA,DARK BROWN,BROWN,TRIM4#
main73220-12320-01i198108-198304
BLACK,BLACK,TRIM2#
main73220-12320-04i198108-198304
BLUE,BLUE,TRIM8#
main73220-12320-16i198108-198304
DARK BROWN,BROWN,TRIM4#
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-12100-01i197903-198003
BLACK,BLACK,TRIM2#
main73230-12100-04i197903-198003
BLUE,BLUE,TRIM8#
main73230-12100-05i197903-198003
BEIGE,BEIGE,TRIM4#
main73230-12100-06i197903-198003
DARK BROWN,BROWN,TRIM4#
main73230-12101-01i198003-198108
BLACK,BLACK,TRIM2#
main73230-12101-04i198003-198108
BLUE,BLUE,TRIM8#
main73230-12101-05i198003-198108
BEIGE,BEIGE,TRIM4#
main73230-12101-06i198003-198108
DARK BROWN,BROWN,TRIM4#
main73230-12110-01i197903-198003
TAKATA,*ELR,BLACK,BLACK,TRIM2#
main73230-12110-04i197903-198003
TAKATA,*ELR,BLUE,BLUE,TRIM8#
main73230-12110-05i197903-198003
TAKATA,*ELR,BEIGE,BEIGE,TRIM4#
main73230-12111-01i198003-198108
TAKATA,*ELR,BLACK,BLACK,TRIM2#
main73230-12111-04i198003-198108
TAKATA,*ELR,BLUE,BLUE,TRIM8#
main73230-12111-05i198003-198108
TAKATA,*ELR,BEIGE,BEIGE,TRIM4#
main73230-12150-01i198108-198304
TAKATA,BLACK,BLACK,TRIM2#
main73230-12150-04i198108-198304
TAKATA,BLUE,BLUE,TRIM8#
main73230-12150-16i198108-198304
TAKATA,DARK BROWN,BROWN,TRIM4#
main73230-12160-01i198108-198304
BLACK,BLACK,TRIM2#
main73230-12160-04i198108-198304
BLUE,BLUE,TRIM8#
main73230-12160-16i198108-198304
DARK BROWN,BROWN,TRIM4#
73240BELT ASSY, FRONT SEAT INNER, LH
main73230-12100-01i197903-198003
BLACK,BLACK,TRIM2#
main73230-12100-04i197903-198003
BLUE,BLUE,TRIM8#
main73230-12100-05i197903-198003
BEIGE,BEIGE,TRIM4#
main73230-12100-06i197903-198003
DARK BROWN,BROWN,TRIM4#
main73230-12101-01i198003-198108
BLACK,BLACK,TRIM2#
main73230-12101-04i198003-198108
BLUE,BLUE,TRIM8#
main73230-12101-05i198003-198108
BEIGE,BEIGE,TRIM4#
main73230-12101-06i198003-198108
DARK BROWN,BROWN,TRIM4#
main73230-12110-01i197903-198003
TAKATA,*ELR,BLACK,BLACK,TRIM2#
main73230-12110-04i197903-198003
TAKATA,*ELR,BLUE,BLUE,TRIM8#
main73230-12110-05i197903-198003
TAKATA,*ELR,BEIGE,BEIGE,TRIM4#
main73230-12111-01i198003-198108
TAKATA,*ELR,BLACK,BLACK,TRIM2#
main73230-12111-04i198003-198108
TAKATA,*ELR,BLUE,BLUE,TRIM8#
main73230-12111-05i198003-198108
TAKATA,*ELR,BEIGE,BEIGE,TRIM4#
main73230-12150-01i198108-198304
TAKATA,BLACK,BLACK,TRIM2#
main73230-12150-04i198108-198304
TAKATA,BLUE,BLUE,TRIM8#
main73230-12150-16i198108-198304
TAKATA,DARK BROWN,BROWN,TRIM4#
main73230-12160-01i198108-198304
BLACK,BLACK,TRIM2#
main73230-12160-04i198108-198304
BLUE,BLUE,TRIM8#
main73230-12160-16i198108-198304
DARK BROWN,BROWN,TRIM4#
73297COVER, QUARTER TRIM OR CENTER PILLAR BELT HOLE
main73297-12020-01i197903-198304
RH,BLACK,BLACK,TRIM2#
main73297-12020-04i197903-198304
RH,BLUE,BLUE,TRIM8#
main73297-12020-06i197903-198008
RH,LIGHT BROWN,BROWN,TRIM4#
main73297-12020-16i198008-198108
RH,LIGHT BROWN,BROWN,TRIM4#
main73297-12020-26i198108-198304
RH,DARK BROWN,BROWN,TRIM4#
main73297-12030-01i197903-198304
RH,BLACK,BLACK,TRIM2#
main73297-12030-04i197903-198304
RH,BLUE,BLUE,TRIM8#
main73297-12030-06i197903-198304
RH,DARK BROWN,BROWN,TRIM4#
main73297-12040-01i197903-198304
RH,BLACK,BLACK,TRIM2#
main73297-12040-04i197903-198304
RH,BLUE,BLUE,TRIM8#
main73297-12040-06i197903-198304
RH,DARK BROWN,BROWN,TRIM4#
main73298-12020-01i197903-198304
LH,BLACK,BLACK,TRIM2#
main73298-12020-04i197903-198304
LH,BLUE,BLUE,TRIM8#
main73298-12020-06i197903-198008
LH,LIGHT BROWN,BROWN,TRIM4#
main73298-12020-16i198008-198108
LH,LIGHT BROWN,BROWN,TRIM4#
main73298-12020-26i198108-198304
LH,DARK BROWN,BROWN,TRIM4#
main73298-12030-01i197903-198304
LH,BLACK,BLACK,TRIM2#
main73298-12030-04i197903-198304
LH,BLUE,BLUE,TRIM8#
main73298-12030-06i197903-198304
LH,DARK BROWN,BROWN,TRIM4#
main73298-12040-01i197903-198304
LH,BLACK,BLACK,TRIM2#
main73298-12040-04i197903-198304
LH,BLUE,BLUE,TRIM8#
main73298-12040-06i197903-198304
LH,DARK BROWN,BROWN,TRIM4#
73330BELT ASSY, REAR SEAT LAP TYPE, RH
main73330-12090-01i197903-197908
TOKAIRIKA,BLACK,BLACK,TRIM2#
main73330-12090-04i197903-197908
TOKAIRIKA,BLUE,BLUE,TRIM8#
main73330-12090-05i197903-197908
TOKAIRIKA,BEIGE,BEIGE,TRIM4#
main73330-12090-06i197903-197908
TOKAIRIKA,DARK BROWN,BROWN,TRIM4#
main73330-12091-01i197908-198003
TOKAIRIKA,BLACK,BLACK,TRIM2#
main73330-12091-04i197908-198003
TOKAIRIKA,BLUE,BLUE,TRIM8#
main73330-12091-05i197908-198003
TOKAIRIKA,BEIGE,BEIGE,TRIM4#
main73330-12091-06i197908-198003
TOKAIRIKA,DARK BROWN,BROWN,TRIM4#
main73330-12092-01i198003-198108
TOKAIRIKA,BLACK,BLACK,TRIM2#
main73330-12092-04i198003-198108
TOKAIRIKA,BLUE,BLUE,TRIM8#
main73330-12092-05i198003-198008
TOKAIRIKA,BEIGE,BEIGE,TRIM4#
main73330-12092-06i198003-198108
TOKAIRIKA,DARK BROWN,BROWN,TRIM4#
main73330-12092-16i198008-198108
TOKAIRIKA,LIGHT BROWN,BROWN,TRIM4#
main73330-12100-01i197903-197908
TAKATA,BLACK,BLACK,TRIM2#
main73330-12100-04i197903-197908
TAKATA,BLUE,BLUE,TRIM8#
main73330-12100-05i197903-197908
TAKATA,BEIGE,BEIGE,TRIM4#
main73330-12100-06i197903-197908
TAKATA,DARK BROWN,BROWN,TRIM4#
main73330-12101-01i197908-198003
TAKATA,BLACK,BLACK,TRIM2#
main73330-12101-04i197908-198003
TAKATA,BLUE,BLUE,TRIM8#
main73330-12101-05i197908-198003
TAKATA,BEIGE,BEIGE,TRIM4#
main73330-12101-06i197908-198003
TAKATA,DARK BROWN,BROWN,TRIM4#
main73330-12102-01i198003-198108
TAKATA,BLACK,BLACK,TRIM2#
main73330-12102-04i198003-198108
TAKATA,BLUE,BLUE,TRIM8#
main73330-12102-05i198003-198008
TAKADA,BEIGE,BEIGE,TRIM4#
main73330-12102-06i198003-198108
TAKATA,DARK BROWN,BROWN,TRIM4#
main73330-12160-01i198108-198304
TOKAIRIKA,BLACK,BLACK,TRIM2#
main73330-12160-04i198108-198304
TOKAIRIKA,BLUE,BLUE,TRIM8#
main73330-12160-16i198108-198304
TOKAIRIKA,DARK BROWN,BROWN,TRIM4#
main73330-12170-01i198108-198304
TAKATA,BLACK,BLACK,TRIM2#
main73330-12170-04i198108-198304
TAKATA,BLUE,BLUE,TRIM8#
main73330-12170-16i198108-198304
TAKATA,DARK BROWN,BROWN,TRIM4#
73340BELT ASSY, REAR SEAT LAP TYPE, LH
main73330-12090-01i197903-197908
TOKAIRIKA,BLACK,BLACK,TRIM2#
main73330-12090-04i197903-197908
TOKAIRIKA,BLUE,BLUE,TRIM8#
main73330-12090-05i197903-197908
TOKAIRIKA,BEIGE,BEIGE,TRIM4#
main73330-12090-06i197903-197908
TOKAIRIKA,DARK BROWN,BROWN,TRIM4#
main73330-12091-01i197908-198003
TOKAIRIKA,BLACK,BLACK,TRIM2#
main73330-12091-04i197908-198003
TOKAIRIKA,BLUE,BLUE,TRIM8#
main73330-12091-05i197908-198003
TOKAIRIKA,BEIGE,BEIGE,TRIM4#
main73330-12091-06i197908-198003
TOKAIRIKA,DARK BROWN,BROWN,TRIM4#
main73330-12092-01i198003-198108
TOKAIRIKA,BLACK,BLACK,TRIM2#
main73330-12092-04i198003-198108
TOKAIRIKA,BLUE,BLUE,TRIM8#
main73330-12092-05i198003-198008
TOKAIRIKA,BEIGE,BEIGE,TRIM4#
main73330-12092-06i198003-198108
TOKAIRIKA,DARK BROWN,BROWN,TRIM4#
main73330-12092-16i198008-198108
TOKAIRIKA,LIGHT BROWN,BROWN,TRIM4#
main73330-12100-01i197903-197908
TAKATA,BLACK,BLACK,TRIM2#
main73330-12100-04i197903-197908
TAKATA,BLUE,BLUE,TRIM8#
main73330-12100-05i197903-197908
TAKATA,BEIGE,BEIGE,TRIM4#
main73330-12100-06i197903-197908
TAKATA,DARK BROWN,BROWN,TRIM4#
main73330-12101-01i197908-198003
TAKATA,BLACK,BLACK,TRIM2#
main73330-12101-04i197908-198003
TAKATA,BLUE,BLUE,TRIM8#
main73330-12101-05i197908-198003
TAKATA,BEIGE,BEIGE,TRIM4#
main73330-12101-06i197908-198003
TAKATA,DARK BROWN,BROWN,TRIM4#
main73330-12102-01i198003-198108
TAKATA,BLACK,BLACK,TRIM2#
main73330-12102-04i198003-198108
TAKATA,BLUE,BLUE,TRIM8#
main73330-12102-05i198003-198008
TAKATA,BEIGE,BEIGE,TRIM4#
main73330-12102-06i198003-198108
TAKATA,DARK BROWN,BROWN,TRIM4#
main73330-12160-01i198108-198304
TOKAIRIKA,BLACK,BLACK,TRIM2#
main73330-12160-04i198108-198304
TOKAIRIKA,BLUE,BLUE,TRIM8#
main73330-12160-16i198108-198304
TOKAIRIKA,DARK BROWN,BROWN,TRIM4#
main73330-12170-01i198108-198304
TAKATA,BLACK,BLACK,TRIM2#
main73330-12170-04i198108-198304
TAKATA,BLUE,BLUE,TRIM8#
main73330-12170-16i198108-198304
TAKATA,DARK BROWN,BROWN,TRIM4#
9165161022
main91651-61022

10 parts on this diagram · 2 diagrams in section

SEAT BELT & CHILD RESTRAINT SEAT — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
