SEAT TRUCK

0001 1 0002 1

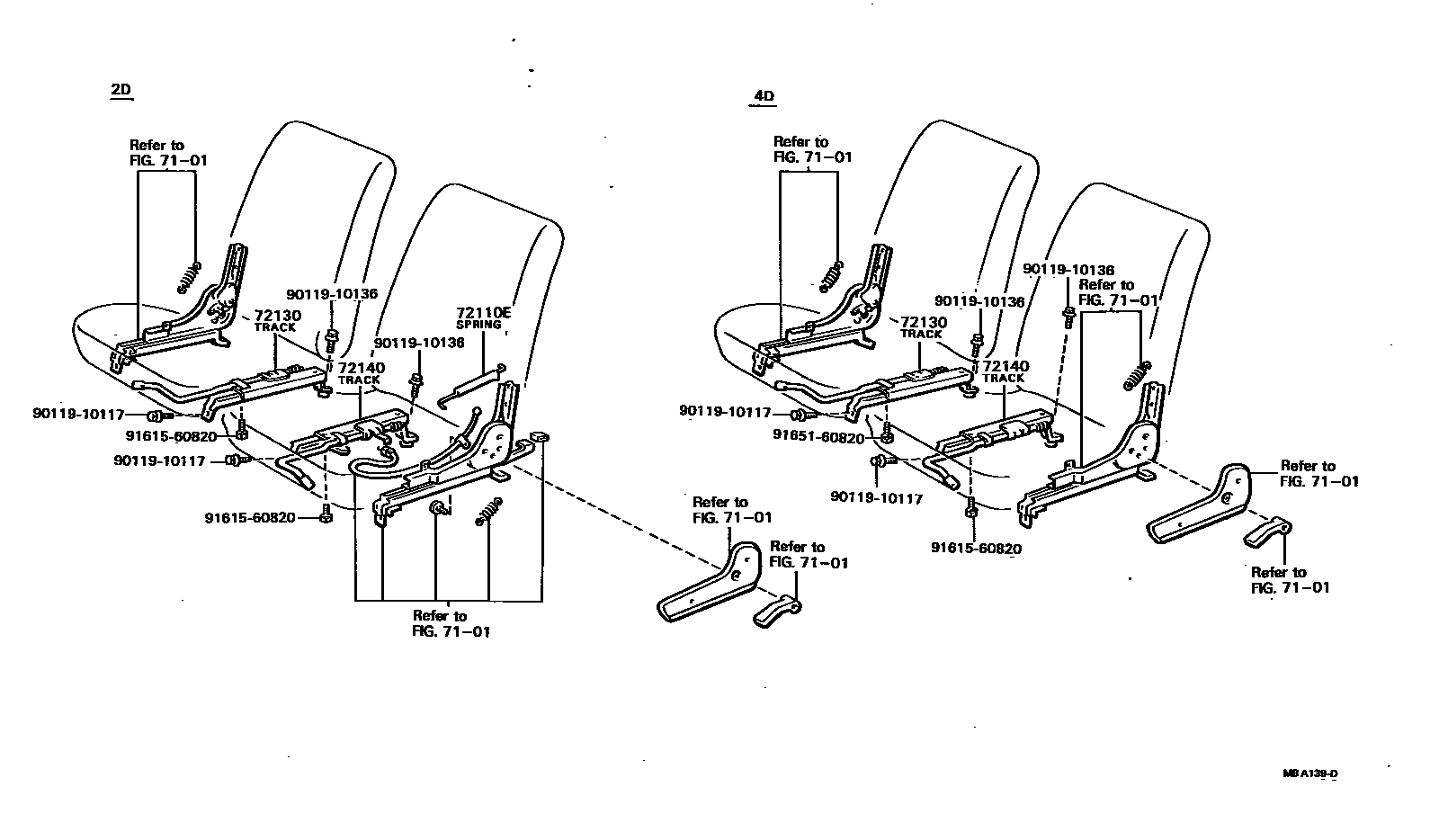

7101FRONT SEAT & SEAT TRACK

→ Go to FIG 71-01

72110ESPRING, TENSION, NO.1 (FOR SEAT TRACK)

main90506-18020iAE70,KE70,TE71..2D197903-197908

main90507-18001iAE70,KE70,TE7#..2D197908-198304

72130TRACK ASSY, RH SEAT, INNER

main72130-12120iAE70,KE70,TE7#197903-198108

main72130-12190iAE70,CE70,KE70..DX,SPD,SX,XL198108-198304

W/O VERTICAL ADJUSTER

main72130-12200iAE70,CE70,KE70,TE71..(CP,HT,SED)..(DX,GT,SE,SR,SX,TRR,TRS,XL); AE70,KE70,TE71..LB..(GT,SE,SX,XL)198108-198304

W/VERTICAL ADJUSTER

72140TRACK ASSY, LH SEAT, INNER

main72140-12100iAE70,KE70,TE7#..4D197903-198108

main72140-12110iAE70,KE70,TE71..2D197903-197908

main72140-12111iAE70,KE70,TE7#..2D197908-198108

main72140-12170iAE70,CE70,KE70,TE71..4D198108-198304

main72140-12180iAE70,KE70,TE71..2D; AE70..3FC..XL..4D198108-198304

*TECS1

9011910117

main90119-10117

9011910136

main90119-10136

9161560820

main91615-60820

9165160820

main91651-60820

8 parts on this diagram · 2 diagrams in section
