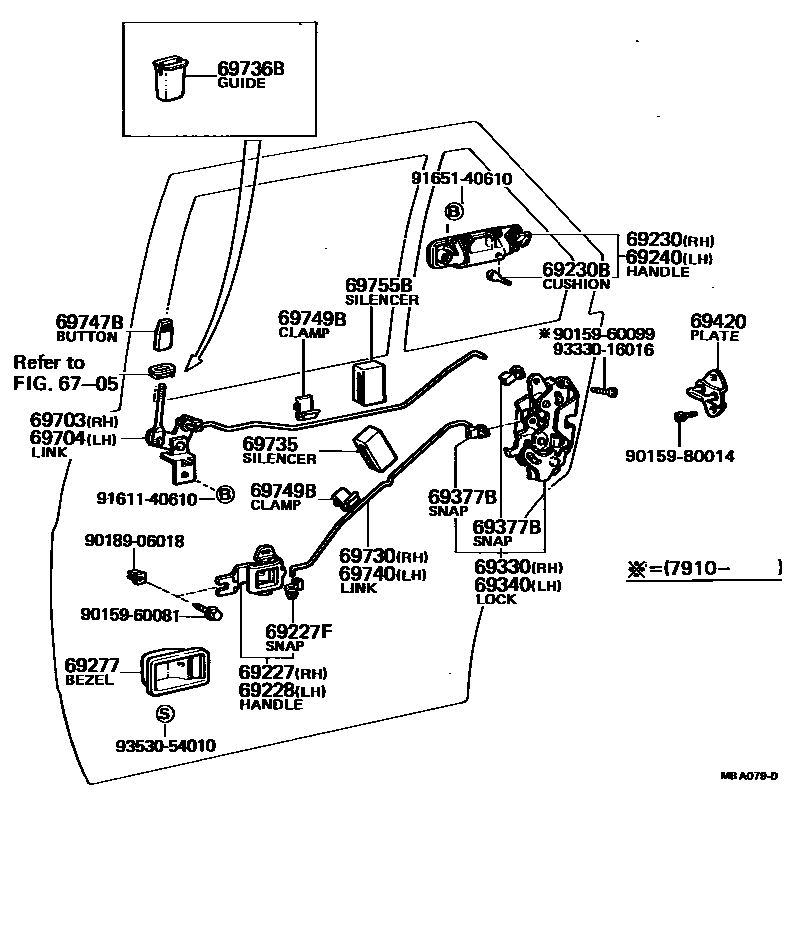

REAR DOOR LOCK & HANDLE

6705REAR DOOR PANEL & GLASS

→ Go to FIG 67-05

69227HANDLE, REAR DOOR INSIDE, RH

main69205-16010-01iAE70,CE70,KE70,TE70..(DX,SPD,SX,XL)..4D197903-198304

BLACK,BLACK,TRIM2#

main69205-16010-04iAE70,CE70,KE70,TE70..(DX,SPD,SX,XL)..4D197903-198304

BLUE,BLUE,TRIM8#

main69205-16010-05iAE70,KE70,TE70..(DX,SPD,XL)..4D197903-198008

BEIGE,BEIGE,TRIM4#

main69205-16010-06iAE70,CE70,KE70..(DX,SPD,SX,XL)..4D198108-198304

DARK BROWN,BROWN,TRIM4#

main69205-16010-16iAE70,KE70,TE70..(DX,SPD,XL)..4D198008-198108

LIGHT BROWN,BROWN,TRIM4#

main69205-20020iAE70,CE70,KE70,TE7#..(GT,SE)..4D197903-198304

69227FSNAP(FOR REAR DOOR INSIDE HANDLE)

main69273-30020×2iAE70,CE70,KE70,TE7#..(GT,SE)..4D197903-198304

main69279-12010×2iAE70,CE70,KE70,TE70..(DX,SPD,SX,XL)..4D197903-198304

69228HANDLE, REAR DOOR INSIDE, LH

main69206-16010-01iAE70,CE70,KE70,TE70..(DX,SPD,SX,XL)..4D197903-198304

BLACK,BLACK,TRIM2#

main69206-16010-04iAE70,CE70,KE70,TE70..(DX,SPD,SX,XL)..4D197903-198304

BLUE,BLUE,TRIM8#

main69206-16010-05iAE70,KE70,TE70..(DX,SPD,XL)..4D197903-198008

BEIGE,BEIGE,TRIM4#

main69206-16010-06iAE70,CE70,KE70..(DX,SPD,SX,XL)..4D198108-198304

DARK BROWN,BROWN,TRIM4#

main69206-16010-16iAE70,KE70,TE70..(DX,SPD,XL)..4D198008-198108

LIGHT BROWN,BROWN,TRIM4#

main69206-20020iAE70,CE70,KE70,TE7#..(GT,SE)..4D197903-198304

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-12040iAE70,CE70,KE70,TE7#..4D197903-198304

69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)

main90541-03021×2iAE70,CE70,KE70,TE7#..4D197903-198304

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-12040iAE70,CE70,KE70,TE7#..4D197903-198304

69277BEZEL, REAR DOOR INSIDE HANDLE

main69277-16040-01×2iAE70,CE70,KE70,TE7#..4D197903-198304

BLACK,BLACK,TRIM2#

main69277-16040-04×2iAE70,CE70,KE70,TE7#..4D197903-198304

BLUE,BLUE,TRIM8#

main69277-16040-05×2iAE70,KE70,TE7#..4D197903-198008

BEIGE,BEIGE,TRIM4#

main69277-16040-06×2iAE70,CE70,KE70,TE71..4D198108-198304

DARK BROWN,BROWN,TRIM4#

main69277-16040-16×2iAE70,KE70,TE7#..4D198008-198108

LIGHT BROWN,BROWN,TRIM4#

69330LOCK ASSY, REAR DOOR, RH

main69330-12050iAE70,CE70,KE70,TE7#..4D197903-198304

69340LOCK ASSY, REAR DOOR, LH

main69340-12050iAE70,CE70,KE70,TE7#..4D197903-198304

69377BSNAP, REAR DOOR LOCK CONTROL ROD

main69377-30020×4iAE70,CE70,KE70,TE7#..4D197903-198304

69420PLATE ASSY, REAR DOOR LOCK STRIKER

main69410-12040×2iAE70,CE70,KE70,TE7#..4D197903-198304

69703LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH

main69770-12010iAE70,CE70,KE70,TE7#..4D197903-198304

69704LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH

main69780-12010iAE70,CE70,KE70,TE7#..4D197903-198304

69730LINK ASSY, REAR DOOR OPEN CONTROL, RH

main69713-12020iAE70,CE70,KE70,TE7#..4D197903-198304

69735SILENCER, REAR DOOR LOCK LINK

main69759-12011×2iAE70,CE70,KE70,TE7#..4D197903-198304

69736BGUIDE, REAR DOOR LOCK LINK

main69736-22020×2iAE70,KE70,TE7#..(GT,SE,XL)..4D198005-198108

main69736-22021×2iAE70,CE70,KE70,TE71..(GT,SE,SX,XL)..4D198108-198304

69740LINK ASSY, REAR DOOR OPEN CONTROL, LH

main69714-12030iAE70,CE70,KE70,TE7#..4D197903-198304

69747BBUTTON, DOOR LOCKING(FOR REAR DOOR)

main69741-20020-01×2iAE70,CE70,KE70,TE7#..4D197903-198304

BLACK,BLACK,TRIM2#

69749BCLAMP, REAR DOOR LOCK LINK

main69749-12010×4iAE70,CE70,KE70,TE7#..4D197903-198208

main69749-30020×4iAE70,CE70,KE70,TE71..4D198208-198304

69755BSILENCER, REAR DOOR LOCK LINK

main69759-30021×2iAE70,CE70,KE70,TE7#..4D198008-198304

9015960081

main90159-60081

9015960099

main90159-60099

9015980014

main90159-80014

9018906018

main90189-06018

9161140610

main91611-40610

9165140610

main91651-40610

9333016016

main93330-16016

9353054010

main93530-54010

29 parts on this diagram · 1 diagram in section
