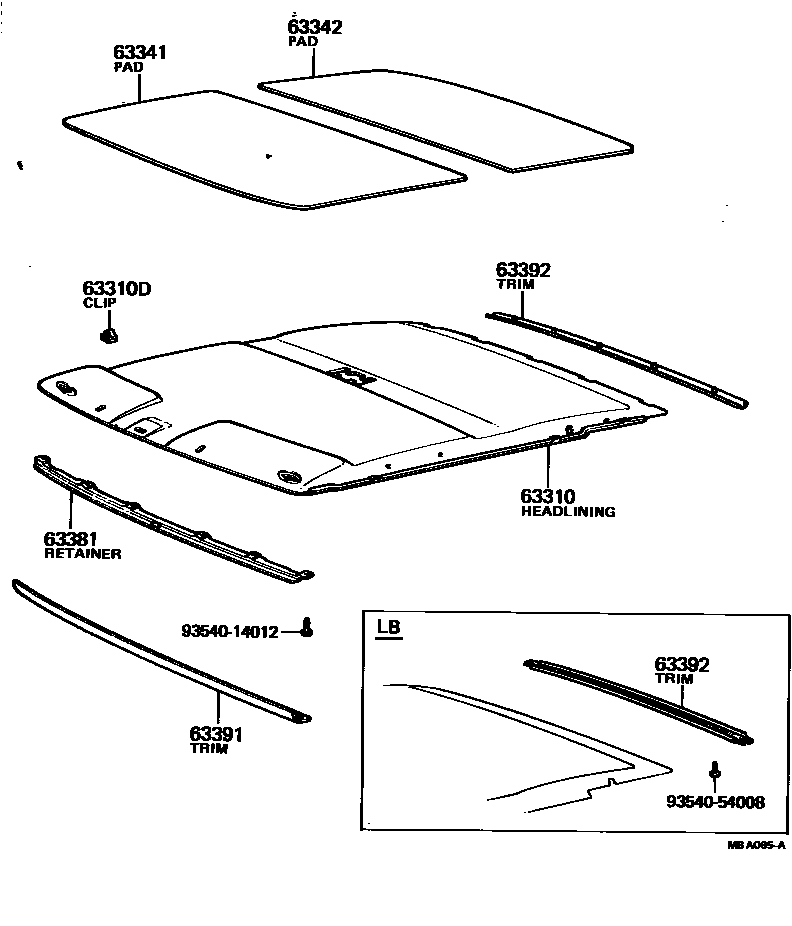

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1 0003 1

63310HEADLINING ASSY, ROOF

main63310-12480-01iAE70,KE70,TE70..HT..(DX,SX,XL)197903-198304

IVORY & BLACK,BLACK,TRIM2#

main63310-12480-04iAE70,KE70,TE70..HT..(DX,SX,XL)197903-198304

IVORY & BLUE,BLUE,TRIM8#

main63310-12480-06iAE70,KE70,TE70..HT..(DX,SX,XL)197903-198304

IVORY & D-BROWN,BROWN,TRIM4#

main63310-12490-01iAE70,KE70,TE7#..HT..(GT,SE)197903-198304

IVORY & BLACK,BLACK,TRIM2#

main63310-12490-04iAE70,KE70,TE7#..HT..(GT,SE)197903-198304

IVORY & BLUE,BLUE,TRIM8#

main63310-12490-06iAE70,KE70,TE7#..HT..(GT,SE)197903-198304

IVORY & D-BROWN,BROWN,TRIM4#

main63310-12500-01iAE70,CE70,KE70,TE70..(DX,SPD,SX,XL)..4D197903-198304

IVORY & BLACK,BLACK,TRIM2#

main63310-12500-04iAE70,CE70,KE70,TE70..(DX,SPD,SX,XL)..4D197903-198304

IVORY & BLUE,BLUE,TRIM8#

main63310-12500-06iAE70,KE70,TE70..(DX,SPD,XL)..4D197903-198008

IVORY & LIGHT BROWN,BROWN,TRIM4#

main63310-12500-16iAE70,KE70,TE70..(DX,SPD,XL)..4D198008-198108

IVORY & LIGHT BROWN,BROWN,TRIM4#

main63310-12500-26iAE70,CE70,KE70..(DX,SPD,SX,XL)..4D198108-198304

IVORY & D-BROWN,BROWN,TRIM4#

main63310-12510-01iAE70,CE70,KE70,TE7#..(GT,SE)..4D197903-198304

IVORY & BLACK,BLACK,TRIM2#

main63310-12510-04iAE70,CE70,KE70,TE7#..(GT,SE)..4D197903-198304

IVORY & BLUE,BLUE,TRIM8#

main63310-12510-06iAE70,TE7#..(GT,SE)..4D197903-198008

IVORY & LIGHT BROWN,BROWN,TRIM4#

main63310-12510-16iAE70,TE7#..(GT,SE)..4D198008-198108

IVORY & LIGHT BROWN,BROWN,TRIM4#

main63310-12510-26iAE70,KE70,TE71..(GT,SE)..4D198108-198304

IVORY & D-BROWN,BROWN,TRIM4#

main63310-12520-01iAE70,KE70,TE7#..CP197903-198108

IVORY & BLACK,BLACK,TRIM2#

main63310-12520-04iAE70,KE70,TE7#..CP197903-198108

IVORY & BLUE,BLUE,TRIM8#

main63310-12520-06iAE70,KE70,TE7#..CP197903-198108

IVORY & D-BROWN,BROWN,TRIM4#

main63310-12521-01iAE70,KE70,TE71..CP198108-198304

IVORY & BLACK,BLACK,TRIM2#

main63310-12521-04iAE70,KE70,TE71..CP198108-198304

IVORY & BLUE,BLUE,TRIM8#

main63310-12521-06iAE70,KE70,TE71..CP198108-198304

IVORY & D-BROWN,BROWN,TRIM4#

main63310-12530-01iAE70,KE70,TE7#..LB197903-198304

IVORY & BLACK,BLACK,TRIM2#

main63310-12530-04iAE70,KE70,TE7#..LB197903-198304

IVORY & BLUE,BLUE,TRIM8#

main63310-12530-06iAE70,KE70,TE7#..LB197903-198304

IVORY & D-BROWN,BROWN,TRIM4#

main63310-12560-01iAE70,KE70,TE7#..LB..(GT,SE,XL)197908-198108

W/REMOVABLE ROOF,IVORY & BLACK,BLACK,TRIM2#

main63310-12560-04iAE70,KE70,TE7#..LB..(GT,SE,XL)197908-198108

W/REMOVABLE ROOF,IVORY & BLUE,BLUE,TRIM8#

main63310-12560-06iAE70,TE71..LB..(GT,SE,SX)198108-198304

W/REMOVABLE ROOF,IVORY&D-BROWN,BROWN,TRIM4#

main63310-12591-01iAE70,TE71..CP198108-198304

W/REMOVABLE ROOF,IVORY & BLACK,BLACK,TRIM2#

main63310-12591-04iAE70,TE71..CP198108-198304

W/REMOVABLE ROOF,IVORY & BLUE,BLUE,TRIM8#

main63310-12591-06iAE70,TE71..CP198108-198304

W/REMOVABLE ROOF,D-BROWN,BROWN,TRIM4#

63310DCLIP, ROOF HEADLINING

main63376-20010×6iAE70,KE70,TE7#..HT,SED197903-198005

main63395-12020×6iAE70,KE70,TE7#..CP,LB197903-198004

W/O REMOVABLE ROOF

63341PAD, ROOF SILENCER, NO.1

main63341-12070iAE70,CE70,KE70,TE7#..HT,LB,SED197903-198304

main63342-12030iAE70,KE70,TE7#..CP197903-198304

63342PAD, ROOF SILENCER, NO.2

main63341-12070iAE70,CE70,KE70,TE7#..4D197903-198304

930 X 530

main63342-12030iAE70,KE70,TE7#..LB..(GT,SE,XL)197910-198108

W/REMOVABLE ROOF

main63342-13070iAE70,CE70,KE70,TE7#..4D197911-198304

930 X 550

main63343-12020iAE70,KE70,TE7#..CP197903-198304

W/O REMOVABLE ROOF

main63343-12030iAE70,KE70,TE7#..LB197910-198304

W/O REMOVABLE ROOF

main63343-12040iAE70,TE71..CP198108-198304

W/REMOVABLE ROOF

63381RETAINER, HEADLINING, FRONT

main63381-12030iAE70,CE70,KE70,TE7#..4D197903-198304

main63381-12040iAE70,KE70,TE7#..2D197903-198304

63391TRIM, ROOF HEADLINING, FRONT

main63391-12010-01iAE70,CE70,KE70,TE7#..4D197903-198304

BLACK,BLACK,TRIM2#

main63391-12010-04iAE70,CE70,KE70,TE7#..4D197903-198304

BLUE,BLUE,TRIM8#

main63391-12010-06iAE70,KE70,TE7#..4D197903-198008

LIGHT BROWN,BROWN,TRIM4#

main63391-12010-16iAE70,KE70,TE7#..4D198008-198108

LIGHT BROWN,BROWN,TRIM4#

main63391-12010-26iAE70,CE70,KE70,TE71..4D198108-198304

D-BROWN,BROWN,TRIM4#

main63391-12020-01iAE70,KE70,TE7#..2D197903-198304

BLACK,BLACK,TRIM2#

main63391-12020-04iAE70,KE70,TE7#..2D197903-198304

BLUE,BLUE,TRIM8#

main63391-12020-06iAE70,KE70,TE7#..2D197903-198304

D-BROWN,BROWN,TRIM4#

63392TRIM, ROOF HEADLINING, REAR

main63305-12020-01iAE70,KE70,TE7#..HT197903-198304

BLACK,BLACK,TRIM2#

main63305-12020-04iAE70,KE70,TE7#..HT197903-198304

BLUE,BLUE,TRIM8#

main63305-12020-06iAE70,KE70,TE7#..HT197903-198304

D-BROWN,BROWN,TRIM4#

main63305-12030-01iAE70,CE70,KE70,TE7#..4D197903-198304

BLACK,BLACK,TRIM2#

main63305-12030-04iAE70,CE70,KE70,TE7#..4D197903-198304

BLUE,BLUE,TRIM8#

main63305-12030-06iAE70,KE70,TE7#..4D197903-198008

LIGHT BROWN,BROWN,TRIM4#

main63305-12030-16iAE70,KE70,TE7#..4D198008-198108

LIGHT BROWN,BROWN,TRIM4#

main63305-12030-26iAE70,CE70,KE70,TE71..4D198108-198304

D-BROWN,BROWN,TRIM4#

main63392-12090-01iAE70,KE70,TE7#..CP197903-198304

BLACK,BLACK,TRIM2#

main63392-12090-04iAE70,KE70,TE7#..CP197903-198304

BLUE,BLUE,TRIM8#

main63392-12090-06iAE70,KE70,TE7#..CP197903-198304

D-BROWN,BROWN,TRIM4#

main63392-12100-01iAE70,KE70,TE7#..LB197903-198304

BLACK,BLACK,TRIM2#

main63392-12100-04iAE70,KE70,TE7#..LB197903-198304

BLUE,BLUE,TRIM8#

main63392-12100-06iAE70,KE70,TE7#..LB197903-198304

D-BROWN,BROWN,TRIM4#

9354014012

main93540-14012

9354054008

main93540-54008

9 parts on this diagram · 3 diagrams in section
