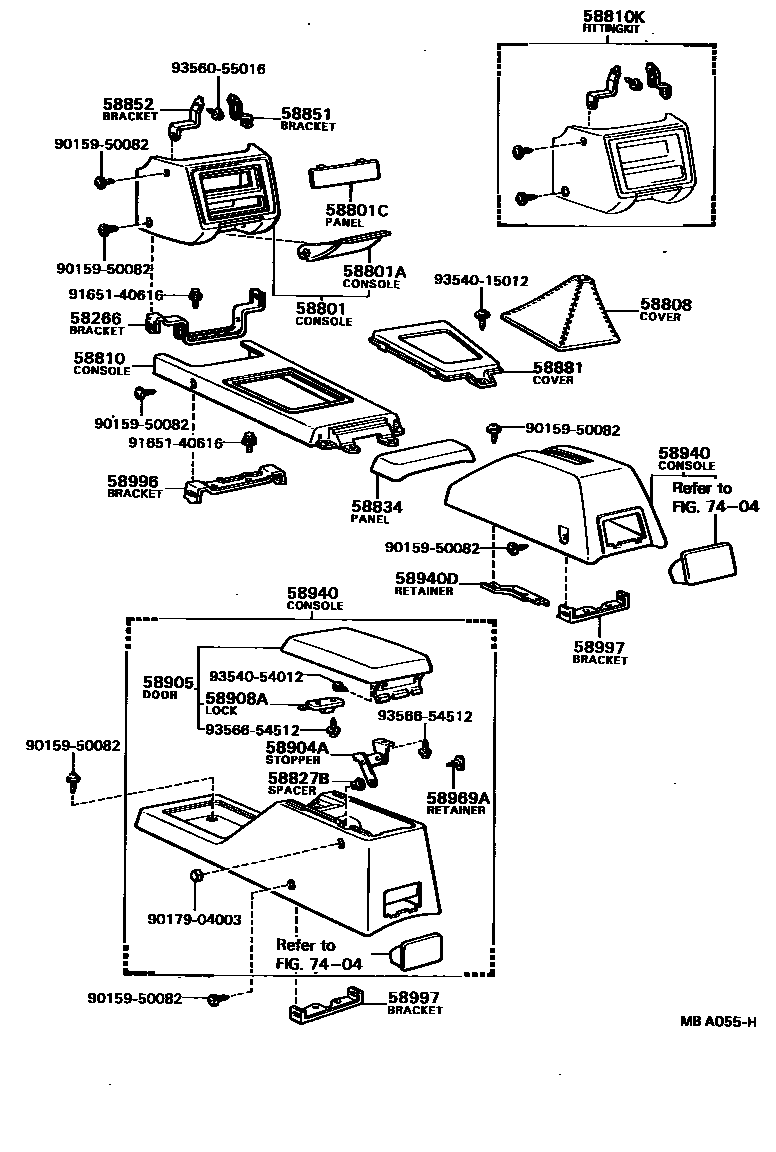

CONSOLE BOX & BRACKET

0001 1 0002 1 0003 1 0004 1

58266BRACKET, CONSOLE BOX SUPPORT, FRONT

main58902-12010iAE70,KE70,TE7#..4D197903-198108

W/STEREO

main58902-12020iAE70,KE70,TE7#..2D197903-198108

main58991-12020iAE70,KE70,TE7#..(GT,SE,XL)..4D197903-198108

58801CONSOLE SUB-ASSY, UPPER

main58801-12010-01iTE71..4D197903-198108

BLACK,BLACK,TRIM2#

main58801-12010-04iTE71..4D197903-198108

BLUE,BLUE,TRIM8#

main58801-12010-05iTE71..4D197903-197908

BEIGE,BEIGE,TRIM4#

main58801-12010-15iTE71..4D197908-198108

BEIGE,BEIGE,TRIM4#

main58801-12020-01iAE70,KE70,TE70..(DX,SPD,XL)..4D197903-197912

BLACK,BLACK,TRIM2#

main58801-12020-04iAE70,KE70,TE70..(DX,SPD,XL)..4D197903-197912

BLUE,BLUE,TRIM8#

main58801-12020-05iAE70,KE70..(DX,SPD,XL)..4D197903-197908

BEIGE,BEIGE,TRIM4#

main58801-12020-15iAE70,KE70,TE70..(DX,SPD,XL)..4D197908-197912

BEIGE,BEIGE,TRIM4#

main58801-12021-01iAE70,KE70,TE70..(DX,SPD,XL)..4D197912-198108

BLACK,BLACK,TRIM2#

main58801-12021-04iAE70,KE70,TE70..(DX,SPD,XL)..4D197912-198108

BLUE,BLUE,TRIM8#

main58801-12021-15iAE70,KE70,TE70..(DX,SPD,XL)..4D197912-198108

BEIGE,BEIGE,TRIM4#

main58801-12030-01iAE70,TE70..SE..4D197903-198108

BLACK,BLACK,TRIM2#

main58801-12030-04iAE70,TE70..SE..4D197903-198108

BLUE,BLUE,TRIM8#

main58801-12030-05iAE70..(3FC,4F)..XL..4D198007-198007

WOODGRAIN,BEIGE,BEIGE,TRIM4#

main58813-12040-01iAE70,KE70,TE7#..2D197903-198108

BLACK,BLACK,TRIM2#

main58813-12040-04iAE70,KE70,TE7#..2D197903-198108

BLUE,BLUE,TRIM8#

main58813-12040-06iAE70,KE70,TE7#..2D197903-198108

DARK BROWN,BROWN,TRIM4#

main58813-12041-01iAE70,KE70,TE71..2D198108-198304

BLACK,BLACK,TRIM2#

main58813-12041-04iAE70,KE70,TE71..2D198108-198304

BLUE,BLUE,TRIM8#

main58813-12041-06iAE70,KE70,TE71..2D198108-198304

DARK BROWN,BROWN,TRIM4#

main58813-12050-01iAE70,KE70,TE7#..(GT,SE,XL)..4D197903-198108

W/CAR COMPO,BLACK,BLACK,TRIM2#

main58813-12050-04iAE70,KE70,TE7#..(GT,SE,XL)..4D197903-198108

W/CAR COMPO,BLUE,BLUE,TRIM8#

main58813-12050-05iAE70,KE70,TE71..(GT,SE,XL)..4D197903-197908

W/CAR COMPO,BEIGE,BEIGE,TRIM4#

main58813-12050-15iAE70,KE70,TE7#..(GT,SE,XL)..4D197908-198108

W/CAR COMPO,BEIGE,BEIGE,TRIM4#

main58813-12060-01iAE70,KE70,TE7#..(GT,SE,SR,ST,TRR,XL)..2D197903-198003

W/CAR COMPO,BLACK,BLACK,TRIM2#

main58813-12060-04iAE70,KE70,TE7#..(GT,SE,SR,ST,TRR,XL)..2D197903-198003

W/CAR COMPO,BLUE,BLUE,TRIM8#

main58813-12060-06iAE70,KE70,TE7#..(GT,SE,SR,ST,TRR,XL)..2D197903-198003

W/CAR COMPO,DARK BROWN,BROWN,TRIM4#

main58813-12061-01iAE70,KE70,TE7#..(GT,SE,SR,ST,TRR,XL)..2D198003-198108

W/CAR COMPO,BLACK,BLACK,TRIM2#

main58813-12061-04iAE70,KE70,TE7#..(GT,SE,SR,ST,TRR,XL)..2D198003-198108

W/CAR COMPO,BLUE,BLUE,TRIM8#

main58813-12061-06iAE70,KE70,TE7#..(GT,SE,SR,ST,TRR,XL)..2D198003-198108

W/CAR COMPO,DARK BROWN,BROWN,TRIM4#

main58813-12070-01iAE70,CE70,KE70,TE71..(GT,SE,SX,XL)..4D198108-198304

BLACK,BLACK,TRIM2#

sub58801-12050

main58813-12070-04iAE70,CE70,KE70,TE71..(GT,SE,SX,XL)..4D198108-198304

BLUE,BLUE,TRIM8#

sub58801-12050

main58813-12070-06iAE70,CE70,KE70,TE71..(GT,SE,SX,XL)..4D198108-198304

DARK BROWN,BROWN,TRIM4#

sub58801-12050

58801ABOX, INSTRUMENT PANEL COIN(FOR UPPER CONSOLE)

main55441-12070-01iAE70,KE70,TE7#..4D197903-198108

BLACK,BLACK,TRIM2#

main55441-12070-04iAE70,KE70,TE7#..4D197903-198108

BLUE,BLUE,TRIM8#

main55441-12070-05iAE70,KE70,TE71..4D197903-197908

BEIGE,BEIGE,TRIM4#

main55441-12070-15iAE70,KE70,TE7#..4D197908-198108

BEIGE,BEIGE,TRIM4#

58801CPANEL, STEREO PLAYER FINISH

main55423-12040iAE70,KE70,TE7#..(GT,SE,XL)..4D197903-198108

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-12070-01iAE70,TE71..GT,SE,SR,TRR197903-197908

BLACK,BLACK,TRIM2#

main58808-12070-04iAE70,CE70,KE70,TE71..MTM..(GT,SE,SX,XL)..4D198108-198304

BLUE,BLUE,TRIM8#

main58808-12070-05iAE70,TE71..(GT,SE)..4D197903-197908

BEIGE,BEIGE,TRIM4#

main58808-12070-06iAE70,TE71..(GT,SE,SR,TRR)..2D197903-197908

DARK BROWN,BROWN,TRIM4#

58810CONSOLE ASSY

main58811-12220-01iAE70,KE70,TE7#..MTM..(GT,SE,XL)..4D197903-198108

BLACK,BLACK,TRIM2#

main58811-12220-04iAE70,KE70,TE7#..MTM..(GT,SE,XL)..4D197903-198108

BLUE,BLUE,TRIM8#

main58811-12220-05iAE70,KE70,TE71..MTM..(GT,SE,XL)..4D197903-197908

BEIGE,BEIGE,TRIM4#

main58811-12220-15iAE70,KE70,TE7#..MTM..(GT,SE,XL)..4D197908-198108

BEIGE,BEIGE,TRIM4#

main58811-12230-01iAE70,KE70,TE7#..MTM..(GT,SE,XL)..4D197903-198108

COLD SPEC,W/RR DUCT,BLACK,BLACK,TRIM2#

main58811-12230-04iAE70,KE70,TE7#..MTM..(GT,SE,XL)..4D197903-198108

COLD SPEC,W/RR DUCT,BLUE,BLUE,TRIM8#

main58811-12230-05iAE70,KE70,TE71..MTM..(GT,SE,XL)..4D197903-197908

COLD SPEC,W/RR DUCT,BEIGE,BEIGE,TRIM4#

main58811-12230-15iAE70,KE70,TE7#..MTM..(GT,SE,XL)..4D197908-198108

COLD SPEC,W/RR DUCT,BEIGE,BEIGE,TRIM4#

main58811-12240-01iKE70,TE70..ATM..(SE,XL)..4D197903-198108

BLACK,BLACK,TRIM2#

main58811-12240-04iKE70,TE70..ATM..(SE,XL)..4D197903-198108

BLUE,BLUE,TRIM8#

main58811-12240-05iKE70..2FC..XL..4D197903-197908

BEIGE,BEIGE,TRIM4#

main58811-12240-15iKE70,TE70..ATM..(SE,XL)..4D197908-198108

BEIGE,BEIGE,TRIM4#

main58811-12250-01iKE70,TE70..ATM..(SE,XL)..4D197903-198108

COLD SPEC,W/RR DUCT,BLACK,BLACK,TRIM2#

main58811-12250-04iKE70,TE70..ATM..(SE,XL)..4D197903-198108

COLD SPEC,W/RR DUCT,BLUE,BLUE,TRIM8#

main58811-12250-05iKE70..2FC..XL..4D197903-197908

COLD SPEC,W/RR DUCT,BEIGE,BEIGE,TRIM4#

main58811-12250-15iKE70,TE70..ATM..(SE,XL)..4D197908-198108

COLD SPEC,W/RR DUCT,BEIGE,BEIGE,TRIM4#

main58811-12260-01iAE70,KE70,TE7#..MTM..2D197903-198108

BLACK,BLACK,TRIM2#

main58811-12260-04iAE70,KE70,TE7#..MTM..2D197903-198108

BLUE,BLUE,TRIM8#

main58811-12260-06iAE70,KE70,TE7#..MTM..2D197903-198108

DARK BROWN,BROWN,TRIM4#

main58811-12270-01iKE70..2FC..DX197903-198108

BLACK,BLACK,TRIM2#

main58811-12270-04iKE70..2FC..DX197903-198108

BLUE,BLUE,TRIM8#

main58811-12270-05iKE70..2FC..DX197903-197908

BEIGE,BEIGE,TRIM4#

main58811-12270-15iKE70..2FC..DX197908-198108

BEIGE,BEIGE,TRIM4#

main58811-12280-01iAE70,KE70,TE7#..MTM..2D197903-198108

COLD SPEC,W/RR DUCT,BLACK,BLACK,TRIM2#

main58811-12280-04iAE70,KE70,TE7#..MTM..2D197903-198108

COLD SPEC,W/RR DUCT,BLUE,BLUE,TRIM8#

main58811-12280-06iAE70,KE70,TE7#..MTM..2D197903-198108

COLD SPEC,W/RR DUCT,DARK BROWN,BROWN,TRIM4#

main58811-12290-01iKE70,TE70..ATM..2D197903-198108

BLACK,BLACK,TRIM2#

main58811-12290-04iKE70,TE70..ATM..2D197903-198108

BLUE,BLUE,TRIM8#

main58811-12290-06iKE70,TE70..ATM..2D197903-198108

DARK BROWN,BROWN,TRIM4#

main58811-12300-01iAE70,KE70..(SE,XL)..2D197903-198108

COLD SPEC,W/RR DUCT,BLACK,BLACK,TRIM2#

main58811-12300-04iAE70,KE70..(SE,XL)..2D197903-198108

COLD SPEC,W/RR DUCT,BLUE,BLUE,TRIM8#

main58811-12300-06iAE70,KE70..(SE,XL)..2D197903-198108

COLD SPEC,W/RR DUCT,DARK BROWN,BROWN,TRIM4#

main58811-12310-01iAE70,CE70,KE70,TE71..MTM..(GT,SE,SR,SX,TRR,TRS,XL)198108-198304

BLACK,BLACK,TRIM2#

main58811-12310-04iAE70,CE70,KE70,TE71..MTM..(GT,SE,SR,SX,TRR,TRS,XL)198108-198304

BLUE,BLUE,TRIM8#

main58811-12310-06iAE70,CE70,KE70,TE71..MTM..(GT,SE,SR,SX,TRR,TRS,XL)198108-198304

DARK BROWN,BROWN,TRIM4#

main58811-12320-01iAE70,CE70,KE70..ATM198108-198304

BLACK,BLACK,TRIM2#

main58811-12320-04iAE70,CE70,KE70..ATM198108-198304

BLUE,BLUE,TRIM8#

main58811-12320-06iAE70,CE70,KE70..ATM198108-198304

DARK BROWN,BROWN,TRIM4#

58810KFITTING KIT, CONSOLE

main04581-12020iAE70,KE70,TE7#..4D197903-198108

main04581-12030iAE70,KE70,TE7#..2D197903-198108

W/O *RCM

58827BSPACER, CONSOLE COMPARTMENT DOOR STOPPER

main58827-20021iAE70..XL..4D198206-198207

SUPER XL

58834PANEL, CONSOLE END

main58923-12010-01iAE70,CE70,KE70,TE70..ATM..(DX,SPD,XL)..4D197903-198304

BLACK,BLACK,TRIM2#

main58923-12010-04iAE70,CE70,KE70,TE70..MTM..XL..4D197903-198304

BLUE,BLUE,TRIM8#

main58923-12010-05iAE70,KE70..MTM..XL..4D197903-197908

BEIGE,BEIGE,TRIM4#

main58923-12010-06iAE70,CE70,KE70..ATM..(DX,SPD,XL)..4D198108-198304

DARK BROWN,BROWN,TRIM4#

main58923-12010-15iAE70,KE70,TE70..ATM..(DX,XL)..4D197908-198108

BEIGE,BEIGE,TRIM4#

58851BRACKET, CONSOLE SUPPORT, UPPER RH

main58857-12010iAE70,KE70,TE7#..4D197903-198108

RH

main58857-12030iAE70,CE70,KE70..(SE,SX,XL)..4D198108-198304

main58995-12010iAE70,KE70,TE71..(GT,SE,SR,SX,TRR,TRS,XL)..2D198108-198304

58852BRACKET, CONSOLE SUPPORT, UPPER LH

main58858-12010iAE70,KE70,TE7#..4D197903-198108

LH

main58858-12030iAE70,CE70,KE70..(SE,SX,XL)..4D198108-198304

main58995-12010iAE70,KE70..3FC..DX198108-198304

58881COVER, SHIFTING HOLE

main58843-12050-01iKE70..DX..2D197903-198108

BLACK,BLACK,TRIM2#

main58843-12050-04iAE70,KE70,TE71..MTM..2D198108-198304

BLUE,BLUE,TRIM8#

main58843-12050-05iAE70,KE70..MTM..XL..4D197903-197908

BEIGE,BEIGE,TRIM4#

main58843-12050-06iKE70..DX..2D197903-198108

DARK BROWN,BROWN,TRIM4#

main58843-12050-15iAE70,KE70..MTM..XL..4D197908-197908

BEIGE,BEIGE,TRIM4#

58904ASTOPPER SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58904-22020iKE70..4F..XL..4D198104-198108

SUPER XL

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-12020-01iAE70..XL..4D198207-198304

*HGP,BLACK,BLACK,TRIM2#

main58905-12020-04iKE70..4F..XL..4D198104-198108

SUPER XL,BLUE,BLUE,TRIM8#

main58905-12020-05iAE70,TE71..(GT,SE)..4D197903-197908

BEIGE,BEIGE,TRIM4#

main58905-12020-06iAE70,TE7#..(GT,SE,SR,TRR)..2D197903-198108

DARK BROWN,BROWN,TRIM4#

main58905-12020-15iAE70,TE7#..(GT,SE)..4D197908-198108

BEIGE,BEIGE,TRIM4#

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-12010iAE70..XL..4D198206-198207

SUPER XL

58940CONSOLE ASSY, REAR

main58901-12010-01iAE70,CE70,KE70,TE70..DX,SPD,ST,XL197903-198304

BLACK,BLACK,TRIM2#

main58901-12010-04iAE70,CE70,KE70,TE70..DX,SPD,ST,XL197903-198304

BLUE,BLUE,TRIM8#

main58901-12010-05iAE70,KE70,TE70..(DX,SPD,XL)..4D197908-198108

BEIGE,BEIGE,TRIM4#

main58901-12010-06iAE70,KE70..(DX,SPD,XL)..4D197903-197908

LIGHT BROWN,BROWN,TRIM4#

main58901-12010-16iAE70,CE70,KE70..DX,SPD,XL198108-198304

DARK BROWN,BROWN,TRIM4#

main58901-12020-01iKE70..4F..XL..4D198104-198108

SUPER XL,BLACK,BLACK,TRIM2#

main58901-12020-04iKE70..XL..4D198201-198304

CASUAL SPEC,W/DOOR,BLUE,BLUE,TRIM8#

main58901-12020-05iAE70,TE71..(GT,SE)..4D197903-197908

BEIGE,BEIGE,TRIM4#

main58901-12020-06iKE70..XL..4D198201-198304

CASUAL SPEC,W/DOOR,DARK BROWN,BROWN,TRIM4#

main58901-12020-15iKE70..4F..XL..4D198104-198108

SUPER XL,BEIGE,BEIGE,TRIM4#

58940DRETAINER, PARKING BRAKE HOLE COVER

main58943-12020iAE70,CE70,KE70,TE70..DX,SPD,ST,XL197903-198304

58969ARETAINER, CONSOLE COMPARTMENT DOOR STOPPER

main58969-20010iAE70,CE70,KE70,TE7#..GT,SE,SR,SX,TRR,TRS197903-198304

58996BRACKET, CONSOLE BOX MOUNTING, NO.1

main58903-12020iTE71..4D197903-198108

main58995-12010iAE70,KE70,TE71..2D198108-198304

58997BRACKET, CONSOLE BOX MOUNTING, NO.3

main58997-12010iKE70..XL..4D198201-198304

CASUAL SPEC

main58997-12020iAE70,CE70,KE70,TE70..DX,SPD,ST,XL197903-198304

7404

9015950082

main90159-50082

9017904003

main90179-04003

9165140616

main91651-40616

9354015012

main93540-15012

9354054012

main93540-54012

9356055016

main93560-55016

9356654512

main93566-54512

28 parts on this diagram · 4 diagrams in section
