BRAKE MASTER CYLINDER

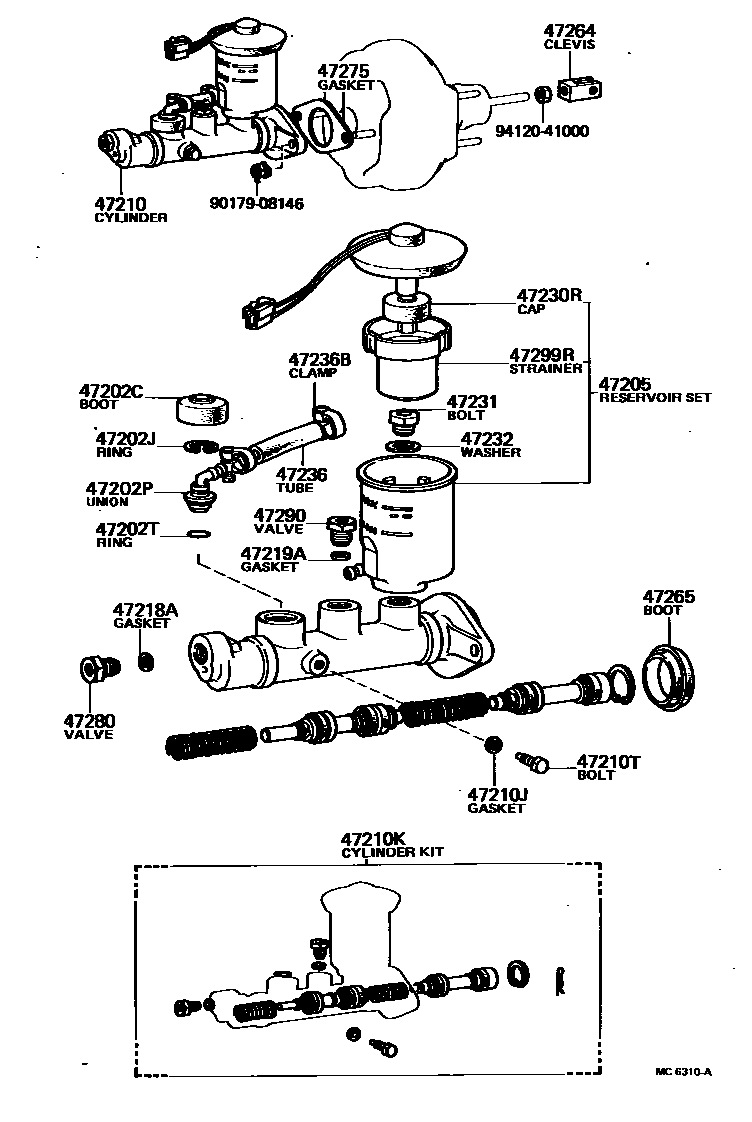

Parts diagram
47202CBOOT, RESERVOIR, NO.1(FOR BRAKE MASTER CYLINDER SIDE)
main47265-20060i197903-198304
47202JRING, SNAP(FOR BRAKE MASTER CYLINDER SIDE)
main96151-02000i197903-198304
47202PUNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE)
main90407-10003i197903-198304
47202TRING(FOR BRAKE MASTER CYLINDER RESERVOIR, NO.1)
main90301-14001i197903-198304
47205RESERVOIR SET, BRAKE MASTER CYLINDER(FOR REAR SIDE)
main47202-12240i197903-198304
47210CYLINDER ASSY, MASTER, W/O BOOSTER
main47201-12220i197903-198304
ID=19.05
main47201-12230i197903-198304
ID=20.64
47210JGASKET(FOR MASTER CYLINDER)
main90430-06104i197903-198304
47210KCYLINDER KIT, BRAKE MASTER
main04493-12070i197903-198304
main04493-20100i197903-198304
47210TBOLT(FOR BRAKE MASTER CYLINDER)
main90109-06008i197903-198304
47218AGASKET(FOR FLUID OUTLET PLUG)
main90430-09253i197903-198304
47219AGASKET(FOR FLUID OUTLET PLUG REAR SIDE)
main90430-09253i197903-198304
47230RCAP ASSY, RESERVOIR, NO.2(FOR REAR SIDE)
main84460-20051i197903-198304
47231BOLT, BRAKE MASTER CYLINDER RESERVOIR SET
main47231-30010i197903-198304
47232WASHER, BRAKE RESERVOIR SET BOLT
main47232-30010i197903-198304
47236TUBE, RESERVOIR BRAKE
main47234-14010i197903-198304
47236BCLAMP(FOR RESERVOIR TUBE)
main90460-16069×2i197903-198304
47264CLEVIS, MASTER CYLINDER PUSH ROD
main47264-20020i197903-198011
main47264-22010i198011-198304
47265BOOT, MASTER CYLINDER
main47265-20050i197903-198304
47275GASKET, BRAKE MASTER CYLINDER
main47275-14010i197903-198304
47280VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK
main47280-30030i197903-198304
47290VALVE ASSY, MASTER CYLINDER OUTLET(FOR REAR SIDE)
main47280-30030i197903-198304
47299RSTRAINER, MASTER CYLINDER RESERVOIR, REAR
main47299-14010i198202-198304
main47299-20010i197903-198202
9017908146
9412041000

24 parts on this diagram · 1 diagram in section
