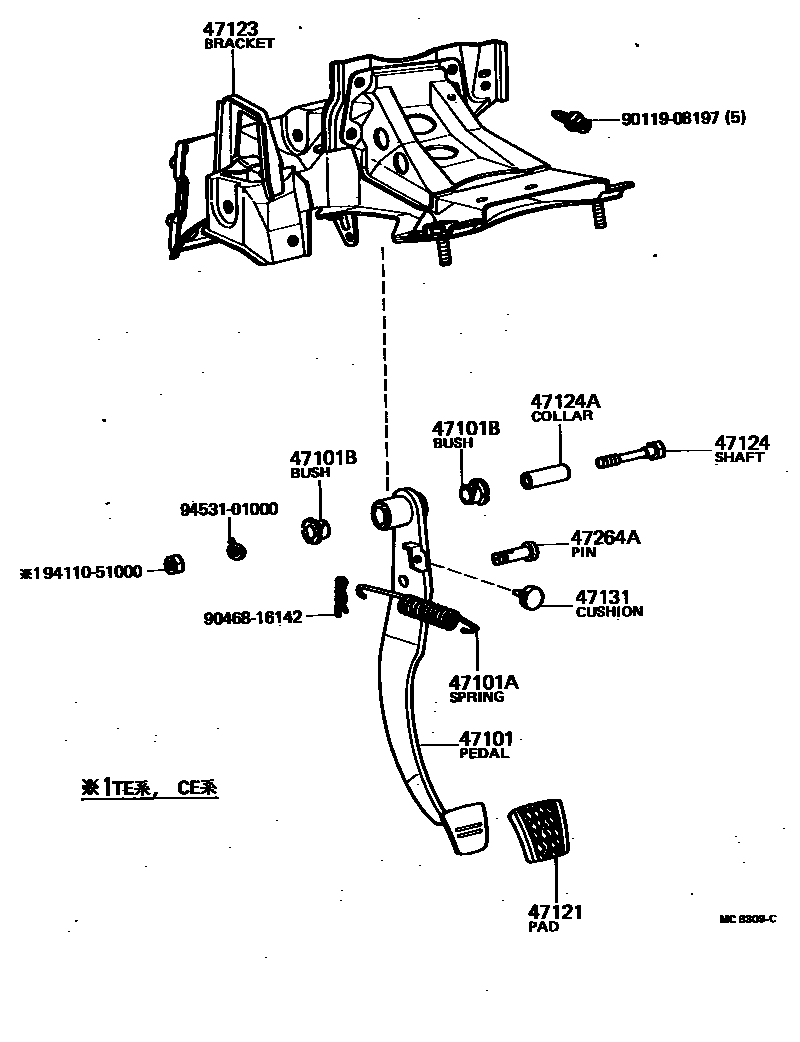

Toyota SPRINTER — BRAKE PEDAL & BRACKET
47101ASPRING(FOR BRAKE PEDAL RETURN)
47101BBUSH(FOR BRAKE PEDAL)
47123BRACKET, BRAKE PEDAL
47124ACOLLAR(FOR BRAKE PEDAL SHAFT)
47131CUSHION(FOR STOP LAMP SWITCH)
47264APIN(FOR PUSH ROD)
9011908197
9046816142
9411051000
9453101000
13 parts on this diagram · 1 diagram in section
BRAKE PEDAL & BRACKET for Toyota SPRINTER
This section contains 13 genuine Toyota parts for the BRAKE PEDAL & BRACKET system of the Toyota SPRINTER. Key components include: PEDAL SUB-ASSY, BRAKE, SPRING(FOR BRAKE PEDAL RETURN), BUSH(FOR BRAKE PEDAL), PAD, BRAKE PEDAL, BRACKET, BRAKE PEDAL.
