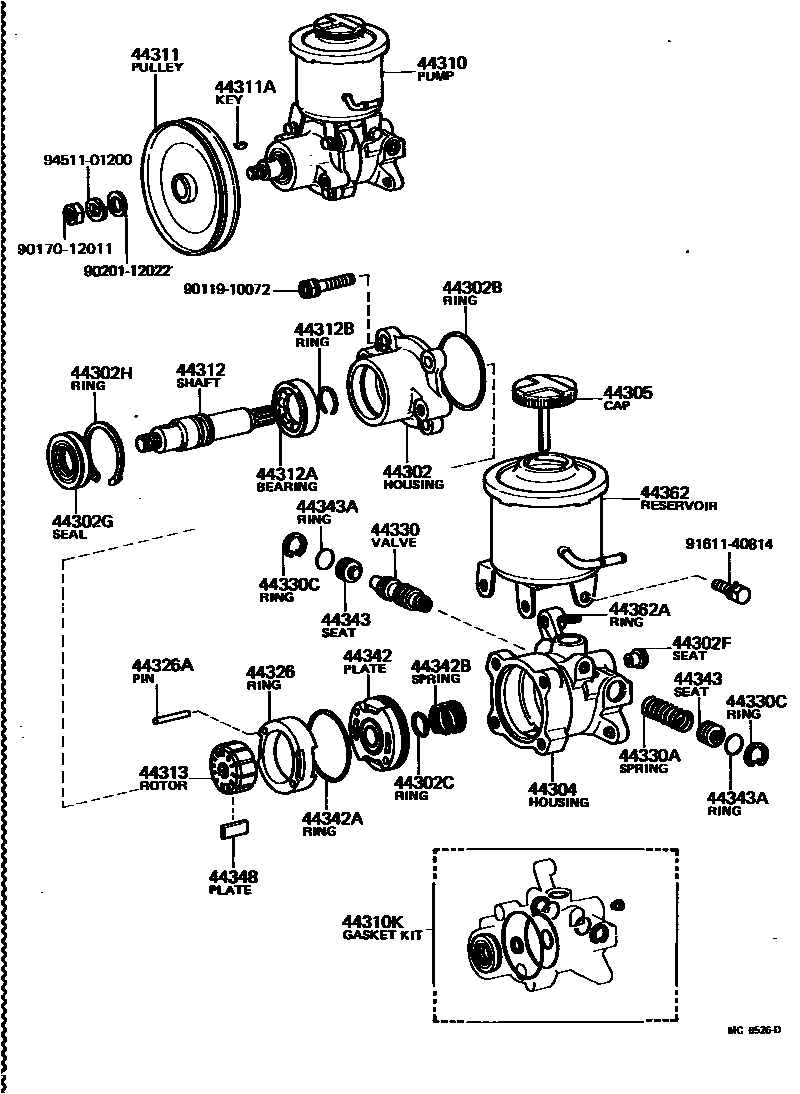

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1

44302HOUSING SUB-ASSY, VANE PUMP, FRONT

main44302-12010iTE70..SE,ST,XL197908-198108

main44302-12020iAE70198108-198301

sub90105-10083

main44302-12021iAE70198301-198304

sub44302-16010

44302BRING, O, NO.1(FOR VANE PUMP HOUSING)

main90301-60001iTE70..SE,ST,XL197908-198108

main90301-63002iAE70198108-198304

44302CRING, O, NO.2(FOR VANE PUMP HOUSING)

main96710-01016iTE70..SE,ST,XL197908-198108

sub96711-19016

44302FSEAT, UNION(FOR VANE PUMP HOUSING)

main90410-05035iAE70198108-198304

main90410-06030iTE70..SE,ST,XL197908-198108

44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

main90311-18003iAE70198108-198304

sub90311-18008

main90311-24001iTE70..SE,ST,XL197908-198108

44302HRING, SNAP, NO.1(FOR VANE PUMP HOUSING)

main90521-32001iAE70198108-198304

main90521-44002iTE70..SE,ST,XL197908-198108

44304HOUSING SUB-ASSY, VANE PUMP, REAR

main44304-12010iTE70..SE,ST,XL197908-198108

main44324-12020iAE70198108-198304

sub44324-16010

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-30020iTE70..SE,ST,XL197908-198108

sub44305-22040

44310PUMP ASSY, VANE

main44320-12010iTE70..SE,ST,XL197908-198104

main44320-12011iTE70..SE,ST,XL198104-198108

sub44320-12H00

main44320-12030iAE70198108-198301

sub90105-10083

main44320-12031iAE70198301-198304

sub44320-12032

44310KGASKET KIT, POWER STEERING PUMP

main04446-12011iTE70..SE,ST,XL197908-198108

sub04446-22020

main04446-16010iAE70198108-198304

sub04446-16011

44311PULLEY, VANE PUMP

main44311-12010iTE70..SE,ST,XL197908-198108

main44311-12020iAE70198108-198304

44311AKEY, VANE PUMP PULLEY

main90280-05008iTE70..SE,ST,XL197908-198108

44312SHAFT, VANE PUMP

main44312-12010iTE70..SE,ST,XL197908-198108

main44312-12020iAE70198108-198304

44312ABEARING(FOR VANE PUMP SHAFT)

main90363-17004iTE70..SE,ST,XL197908-198108

44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)

main90520-10003iAE70198108-198304

main90520-15001iTE70..SE,ST,XL197908-198108

44313ROTOR, VANE PUMP

main44313-12010iAE70198110-198304

sub44313-22040

main44313-12020iAE70198110-198304

sub44313-22050

main44313-12030iTE70..SE,ST,XL197908-198108

sub44313-22060

main44313-12040iAE70198110-198304

sub44313-22070

main44313-12050iTE70..SE,ST,XL197908-198108

sub44313-22080

main44313-12060iAE70198108-198110

main44313-12070iAE70198108-198110

MARK 1

main44313-12080iAE70198108-198110

MARK 2

main44313-12090iAE70198108-198110

MARK 3

main44313-12100iAE70198108-198110

MARK 4

44326RING, CAM(FOR VANE PUMP)

main44325-12010iTE70..SE,ST,XL197908-198108

main44325-12020iTE70..SE,ST,XL197908-198108

main44325-12030iTE70..SE,ST,XL197908-198108

main44325-12040iTE70..SE,ST,XL197908-198108

main44325-12050iTE70..SE,ST,XL197908-198108

main44325-12060iAE70198108-198304

main44325-12070iAE70198108-198304

main44325-12080iAE70198108-198304

main44325-12090iAE70198108-198304

main44325-12100iAE70198108-198304

44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)

main90250-05008×2iTE70..SE,ST,XL197908-198108

main90250-05017iAE70198108-198304

44330VALVE ASSY, FLOW CONTROL

main44330-12010iTE70..SE,ST,XL197908-198108

sub44330-12130

main44330-12020iTE70..SE,ST,XL197908-198108

sub44330-12140

main44330-12030iTE70..SE,ST,XL197908-198108

sub44330-12150

main44330-12040iTE70..SE,ST,XL197908-198108

sub44330-12160

main44330-12050iTE70..SE,ST,XL197908-198108

sub44330-12170

main44330-12060iTE70..SE,ST,XL198009-198108

sub44330-12180

main44330-12070iAE70198108-198304

sub44330-12071

main44330-12080iAE70198108-198304

sub44330-12081

main44330-12090iAE70198108-198304

sub44330-12091

main44330-12100iAE70198108-198304

sub44330-12101

main44330-12110iAE70198108-198304

sub44330-12111

main44330-12120iAE70198108-198304

sub44330-12121

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90501-12447iTE70..SE,ST,XL197908-198108

44330CRING, SNAP(FOR FLOW CONTROL VALVE)

main96151-01700×2iTE70..SE,ST,XL197908-198108

main96151-02200iAE70198108-198304

44342PLATE, VANE PUMP SIDE, REAR

main44341-12010iTE70..SE,ST,XL197908-198108

main44342-12010iAE70198108-198304

44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)

main90301-37002iAE70198108-198304

main90301-53002iTE70..SE,ST,XL197908-198108

44342BSPRING, COMPRESSION(FOR VANE PUMP SIDE PLATE REAR)

main90501-23014iTE70..SE,ST,XL197908-198108

44343SEAT, FLOW CONTROL SPRING

main44343-12010×2iTE70..SE,ST,XL197908-198108

main44343-12030iAE70198108-198304

44343ARING, O(FOR FLOW CONTROL SPRING SEAT)

main96710-01014×2iTE70..SE,ST,XL197908-198108

main96710-01019iAE70198108-198112

main96711-19019iAE70198112-198304

44348PLATE, VANE PUMP

main44345-12010×10iTE70..SE,ST,XL197908-198108

main44345-12020×10iTE70..SE,ST,XL197908-198108

main44345-12030×10iAE70198108-198304

main44345-12040×10iTE70..SE,ST,XL197908-198108

main44345-12050×10iTE70..SE,ST,XL197908-198108

44362RESERVOIR, OIL(FOR VANE PUMP)

main44306-12010iTE70..SE,ST,XL197908-198104

main44306-12011iTE70..SE,ST,XL198104-198108

main44306-12020iAE70198108-198304

44362ARING, O(FOR VANE PUMP OIL RESERVOIR)

main96710-01013iTE70..SE,ST,XL197908-198108

main96711-19013iAE70198112-198304

9011910072

main90119-10072

9017012011

main90170-12011

9020112022

main90201-12022

9161140814

main91611-40814

9451101200

main94511-01200
