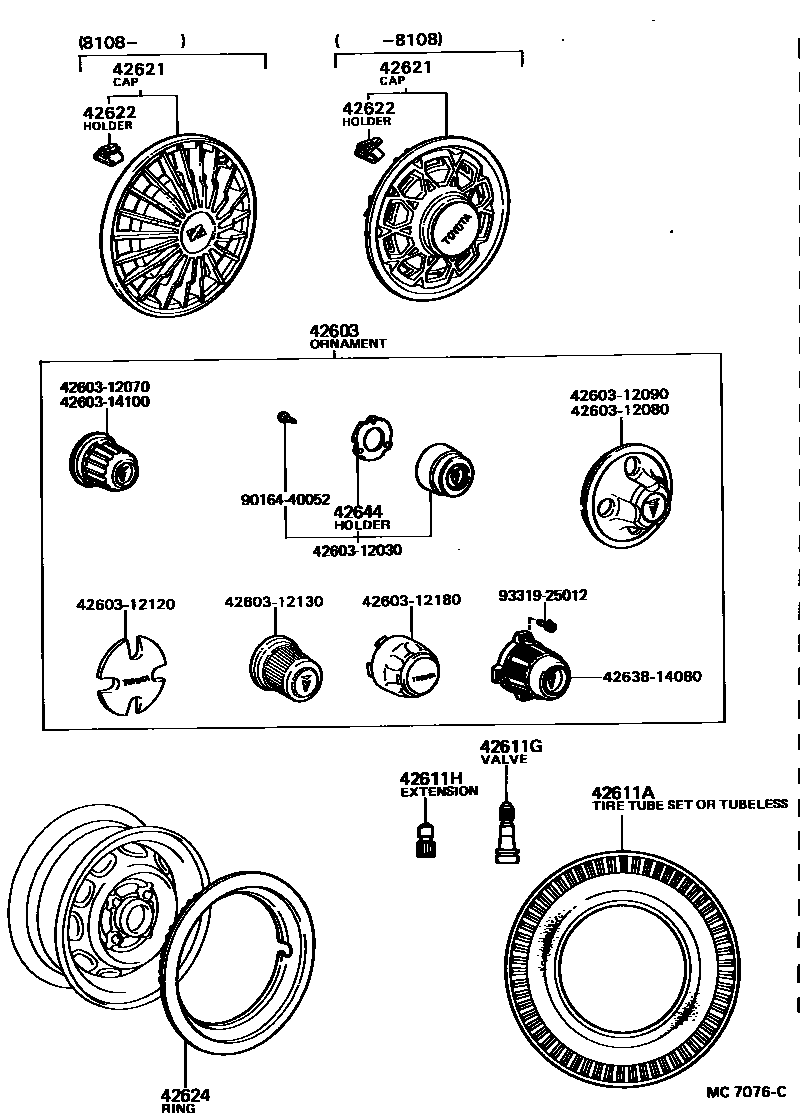

DISC WHEEL & WHEEL CAP

0001 1 0002 1

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-12030×4iTE7#..GT,SR,ST,TRR,TRS197903-198304

main42603-12070×4iAE70,CE70,KE70..DX,SPD,XL198108-198304

RED

main42603-12080×4iAE70..(3FC,4F)..XL..4D198007-198007

main42603-12090×4iAE70..HT..5F..SE198010-198010

main42603-12120×4iAE70,CE70,KE70,TE71..GT,SE,SR,SX,TRR,TRS,XL198108-198304

ALUMI WHEEL

main42603-12130×4iAE70,KE70..SR,SX198108-198304

main42603-12180×4iAE70..(HT,SED)..3FC..XL198209-198304

*TECS1

main42603-14100×4iTE70..ST197908-198108

BLACK

main42638-14080×4iAE70..SR; TE7#..GT,SR,ST,TRR197903-198108

ALUMI WHEEL

42611ATIRE TUBE SET OR TUBELESS TIRE

main42605-12190×4iKE70197903-198108

6.00-12-4,W/TUBE

main42605-16030×4iAE70,KE70197903-198108

6.15-13-4,W/TUBE

main42652-12220×4iAE70,KE70197903-198108

155SR13

main42652-12250×4iAE70,TE7#197903-198108

175/70HR13

main42652-12360×4iKE70197903-198108

6.00-12-4,TUBELESS

main42652-12410×4iCE70198202-198304

165SR13

main42652-12420×4iAE70,CE70,KE70198108-198304

155SR13

main42652-12430×4iAE70,CE70,KE70,TE71198108-198304

175/70SR13

main42652-14140×4iTE70197908-198010

165SR13

main42652-14180×4iTE71197903-198304

185/70HR13

main42652-16030×4iAE70,KE70197903-198108

6.15-13-4,TUBELESS

main42652-16120×4iKE70198108-198304

145SR13

main42652-22090×4iTE70197908-198108

6.45-13-4,TUBELESS

main98921-64132×4iTE70197908-198108

6.45-13-4,W/TUBE

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iAE70,CE70,KE70,TE71197903-198304

42611HEXTENSION, VALVE

main90942-05006×4iAE70,TE70..SE197903-198108

42621CAP, WHEEL

main42602-12040×4iAE70,TE70..SE197903-198108

main42602-12050×4iAE70..HT..5F..SE198007-198007

SILVER METALLIC

main42602-12070×4iAE70,CE70,KE70..SE,SX,XL198108-198304

SILVER

main42602-12080×4iAE70..HT..(3FC,5F)..SE198202-198202

DARK BROWN

main42602-12090×4iAE70..(3FC,5F)..SE..4D198210-198304

SUPER SE

42622HOLDER, WHEEL CAP

main42622-14010×32iAE70,CE70,KE70..SE,SX,XL198108-198304

42624RING, WHEEL CAP

main42624-12011×4iAE70..HT..5F..SE198010-198010

main42624-14023×4iTE71197903-198104

main42624-14024×4iTE71..GT,TRR198104-198112

main42624-14025×4iTE71..GT,TRR198112-198304

42644HOLDER, WHEEL HUB ORNAMENT

main42644-14041×4iTE7#..GT,SR,TRR,TRS197903-198304

4260312030ORNAMENT SUB-ASSY, WHEEL HUB

main42603-12030

4260312070ORNAMENT SUB-ASSY, WHEEL HUB

main42603-12070

4260312080ORNAMENT SUB-ASSY, WHEEL HUB

main42603-12080

4260312090ORNAMENT SUB-ASSY, WHEEL HUB

main42603-12090

4260312120ORNAMENT SUB-ASSY, WHEEL HUB

main42603-12120

4260312130ORNAMENT SUB-ASSY, WHEEL HUB

main42603-12130

4260312180ORNAMENT SUB-ASSY, WHEEL HUB

main42603-12180

4260314100ORNAMENT SUB-ASSY, WHEEL HUB

main42603-14100

4263814080

main42638-14080

9016440052

main90164-40052

9331925012

main93319-25012

19 parts on this diagram · 2 diagrams in section
