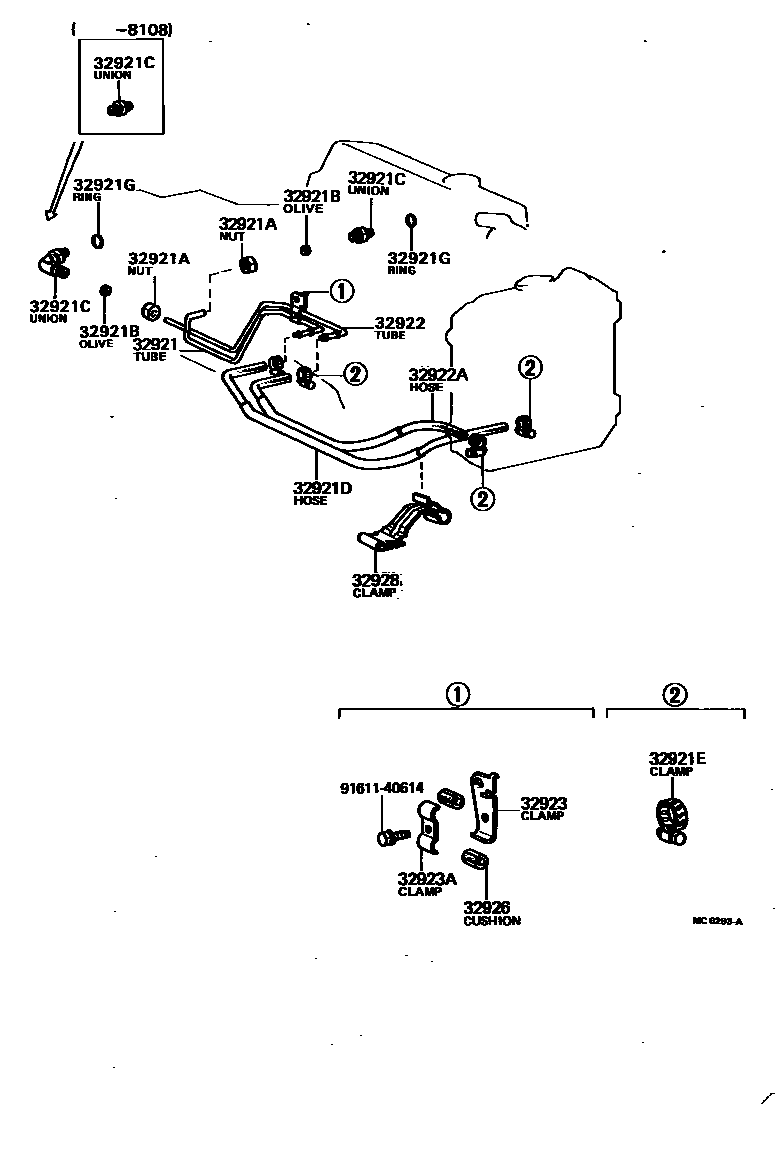

OIL COOLER & TUBE (ATM)

0001 1 0002 1 0003 1 0004 1

32921TUBE, OIL COOLER INLET, NO.1

main32921-10021iKE70..2FC197903-197908

main32921-12060iTE70..3FC197908-198108

main32921-12080iAE70..3FC197910-198108

main32921-12110iKE70..2FC197908-198108

main32921-12120iCE70..4FC198202-198304

main32921-12131iKE70..3FC198108-198304

main32921-12160iAE70..3FC198108-198304

32921ANUT, UNION(FOR OIL COOLER TUBE)

main90402-13041×2iAE70,CE70,KE70,TE70..ATM197903-198304

32921BOLIVE(FOR OIL COOLER TUBE)

main96395-71400×2iAE70,CE70,KE70,TE70..ATM197903-198304

32921CUNION(FOR OIL COOLER TUBE)

main90404-13003iAE70,CE70,TE70..ATM198106-198304

INLET

main90404-13105×2iKE70..2FC197903-198108

main90404-13265iAE70,TE70..3FC197908-198106

INLET

main90407-13002iKE70..3FC198108-198304

OUTLET

main90407-13005iAE70,CE70,TE70..ATM198106-198304

OUTLET

main90407-13060iAE70,TE70..3FC197908-198106

OUTLET

32921DHOSE(FOR OIL COOLER INLET)

main32941-12020iAE70..3FC197910-198108

main32941-12030iKE70..2FC197903-198003

main32941-12031iKE70..2FC198003-198108

main32941-12041iCE70..4FC198202-198304

main32941-12050iKE70..3FC198108-198304

main32941-12060iAE70..3FC198108-198304

32921ECLAMP, HOSE(FOR OIL COOLER)

main90460-14085×4iAE70,CE70,KE70,TE70..ATM197903-198304

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189×2iAE70,TE70..3FC197908-198108

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-10021iKE70..2FC197903-197908

main32922-12050iTE70..3FC197908-198108

main32922-12070iAE70..3FC197910-198108

main32922-12100iKE70..2FC197908-198108

main32922-12110iCE70..4FC198202-198304

main32922-12120iKE70..3FC198108-198304

main32922-12150iAE70..3FC198108-198304

32922AHOSE(FOR OIL COOLER OUTLET)

main32942-12021iCE70..4FC198202-198304

main32942-12030iAE70..3FC197910-198108

main32942-12040iKE70..2FC197903-198108

main32942-12050iAE70..3FC198108-198304

main32942-12060iKE70..3FC198108-198304

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-10020iKE70..ATM197903-198304

main32923-12031iAE70..3FC197910-198304

main32923-12040iCE70..4FC198202-198304

main90461-08039iTE70..3FC197908-198108

32923ACLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main90461-08070iAE70..3FC197910-198304

main90462-12085iCE70,KE70..ATM197903-198304

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-30011×2iAE70,KE70,TE70..ATM197903-198304

32928CLAMP, FLEXIBLE HOSE, NO.1

main90461-06141iAE70..3FC197910-198108

main90463-06600iCE70,KE70,TE70..ATM197903-198304

main90949-01010iAE70..3FC198108-198304

9161140614

main91611-40614

14 parts on this diagram · 4 diagrams in section
