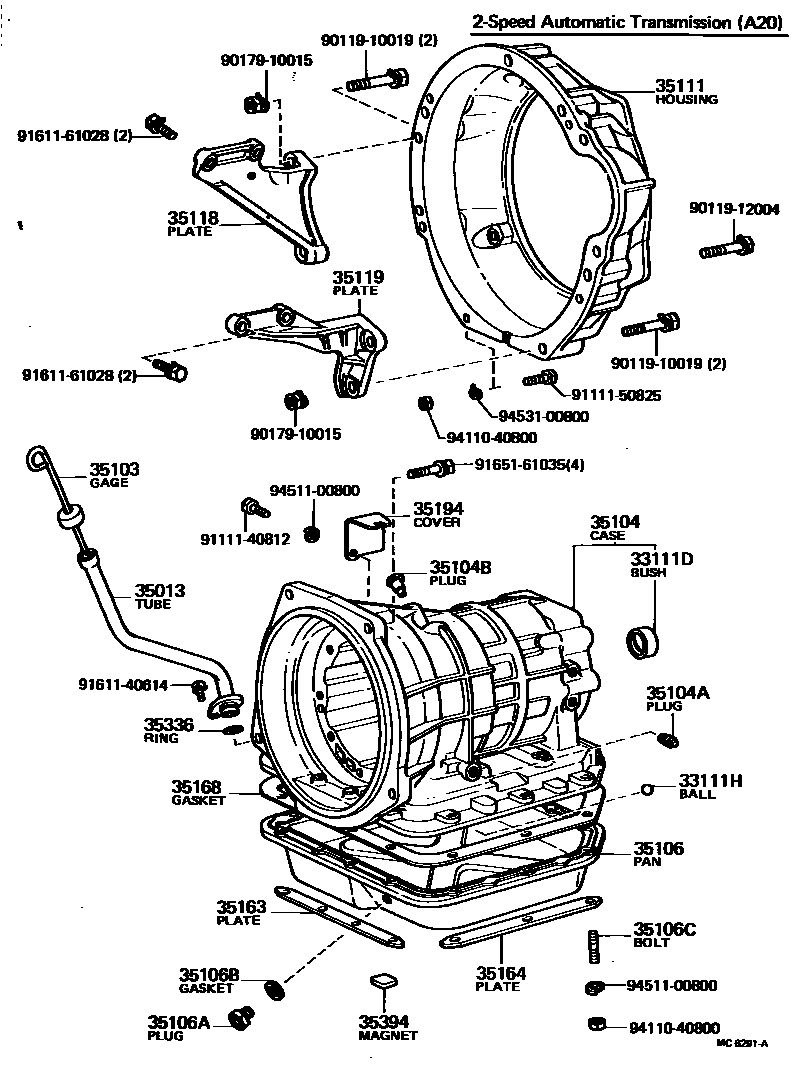

TRANSMISSION CASE & OIL PAN (ATM)

0001 1 0002 1 0003 1 0004 1 0005 1

33111DBUSH, BIMETAL FORMED(FOR TRANSMISSION CASE)

main90999-73039iKE70..2FC197903-198108

33111HBALL(FOR THROTTLE RELAY VALVE)

main90360-06004iKE70..2FC197903-198108

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-12050iKE70..2FC197903-198108

main35013-12090iAE70..3FC197910-198304

main35013-12100iTE70..3FC197908-198108

main35013-12110iKE70..3FC198108-198304

main35013-20120iCE70..4FC198202-198304

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-12012iKE70..2FC197903-198108

main35103-20040iTE70..3FC197908-198108

main35103-20071iAE70..3FC197910-198108

main35103-30100iCE70..4FC198202-198304

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-12020iKE70..3FC198108-198304

main35104-12040iCE70..4FC198202-198304

main35104-20020iKE70..2FC197903-198108

main35104-22023iAE70,TE70..3FC197908-198008

main35104-22024iAE70,TE70..3FC198008-198106

main35104-22025iAE70,TE70..3FC198106-198304

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001×2iAE70,CE70,KE70..ATM198108-198304

main90341-08079×2iAE70,TE70..3FC197908-198106

main90345-51005×4iKE70..2FC197903-198108

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03001iKE70..2FC197903-198108

main90930-03061iAE70,TE70..3FC197908-198108

main90930-03069iAE70,CE70,KE70..ATM198108-198304

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-14020iAE70..3FC197910-198304

main35106-22010iKE70..2FC197903-198108

main35106-22020iKE70..3FC198108-198304

main35106-30050iCE70..4FC198202-198304

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10003iAE70,TE70..3FC197908-198108

main90341-18057iKE70..2FC197903-198108

35106BGASKET, DRAIN PLUG (ATM)

main12157-10010iKE70..2FC197903-198108

main35178-30010iAE70,TE70..3FC197908-198108

35106CBOLT, STUD (FOR AUTOMATIC TRANSMISSION OIL PAN SETTING)

main90116-08037×14iKE70..2FC197903-198108

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-12030iAE70..3FC197910-198304

main35111-12040iKE70..2FC197903-198108

main35111-12051iTE70..3FC197908-198008

main35111-12080iKE70..3FC198108-198304

main35111-14050iTE70..3FC198008-198108

main35111-20090iCE70..4FC198202-198304

35118PLATE, STIFENER, RH (ATM)

main33118-12020iTE70..3FC197908-198108

main33118-12070iAE70..3FC197910-198108

main33118-12080iKE70..ATM197903-198304

main33118-12090iAE70..3FC198108-198304

main33118-14030iCE70..4FC198202-198304

35119PLATE, STIFENER, LH (ATM)

main33119-12011iTE70..3FC197908-198108

main33119-12040iAE70..3FC197910-198108

main33119-12050iKE70..ATM197903-198304

main33119-12060iAE70..3FC198108-198304

main33119-12100iAE70..3FC198304-198304

main33119-14050iCE70..4FC198202-198304

35163PLATE, TRANSMISSION OIL PAN FLANGE, NO.1

main35163-12010×2iKE70..2FC197903-198108

35164PLATE, TRANSMISSION OIL PAN FLANGE, NO.2

main35164-12010×2iKE70..2FC197903-198108

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-12010iKE70..2FC197903-197908

main35168-12011iKE70..2FC197908-198108

main35168-22010iAE70,TE70..3FC197908-198008

main35168-22011iAE70,TE70..3FC198008-198108

35194COVER, TRANSMISSION CASE DUST

main35194-12010iKE70..2FC197903-198108

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iAE70,CE70,KE70..ATM198108-198304

main90301-17006iKE70..2FC197903-198108

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011iAE70,CE70,KE70,TE70..ATM197903-198304

9011910019

main90119-10019

9011912004

main90119-12004

9017910015

main90179-10015

9111140812

main91111-40812

9111150825

main91111-50825

9161140614

main91611-40614

9161161028

main91611-61028

9165161035

main91651-61035

9411040800

main94110-40800

9451100800

main94511-00800

9453100800

main94531-00800

31 parts on this diagram · 5 diagrams in section
