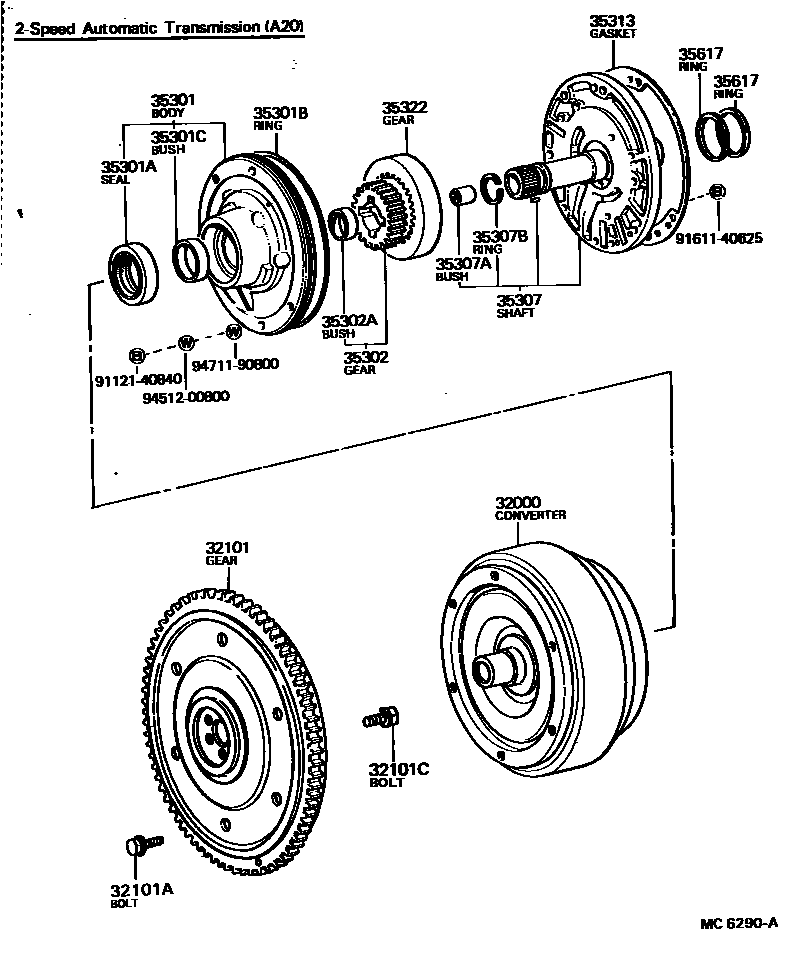

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

0001 1 0002 1 0003 1 0004 1

32000CONVERTER ASSY, TORQUE

main32000-12012iKE70..2FC198003-198108

main32000-12030iTE70..3FC197908-198108

main32000-12040iAE70..3FC197910-198105

main32000-12050iAE70,KE70..3FC198108-198304

main32000-14020iKE70..2FC197903-198003

main32000-20110iCE70..4FC198202-198304

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-12020iKE70..2FC197903-198108

main32101-12030iAE70..3FC197910-198304

main32101-12040iKE70..3FC198108-198304

main32101-12050iAE70..3FC198112-198304

W/POWER STEERING

main32101-14030iTE70..3FC197908-198108

main32101-20071iCE70..4FC198202-198304

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08090iAE70,CE70,KE70..ATM198301-198304

WHITE

main90119-08223×6iAE70,CE70,KE70,TE70..ATM197903-198301

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10006×6iTE70..3FC197908-198108

main90105-10016×6iAE70..3FC197910-198108

main90105-10048×6iAE70,KE70..3FC198108-198304

main90109-10051×8iCE70..4FC198202-198304

main90119-10078×6iKE70..2FC197903-198108

35301BODY SUB-ASSY, FRONT OIL PUMP

main35301-12010iKE70..2FC197903-198108

main35301-22011iTE70..3FC197908-197909

main35301-22012iAE70,TE70..3FC197909-198010

main35301-30030iAE70,TE70..3FC198010-198108

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38129iAE70,TE70..3FC197908-198108

main90311-42083iKE70..2FC197903-198108

35301BRING, O (FOR FRONT OIL PUMP BODY)

main35147-22010iTE70..3FC197908-197909

main90301-99010iAE70,TE70..3FC197909-198108

main90301-99102iKE70..2FC197903-198108

35301CBUSH, BIMETAL FORMED (FOR FRONT OIL PUMP BODY)

main90999-73036iKE70..2FC197903-198108

35302GEAR SUB-ASSY, FRONT OIL PUMP DRIVE

main35302-12010iKE70..2FC197903-198108

main35321-22010iAE70,TE70..3FC197908-198108

35302ABUSH, BIMETAL FORMED (FOR FRONT OIL PUMP DRIVE GEAR)

main90999-73037iKE70..2FC197903-198108

35307SHAFT SUB-ASSY, STATOR

main35307-12012iKE70..2FC197903-198108

main35307-12020iAE70..3FC197910-198108

main35307-22011iTE70..3FC197908-198108

main35370-12011iAE70,KE70..3FC198108-198304

main35370-22030iCE70..4FC198202-198304

35307ABUSH, BIMETAL FORMED (FOR STATOR SHAFT)

main90999-73047iKE70..2FC197903-198108

35307BRING, SHAFT SNAP (FOR STATOR SHAFT)

main90520-25116iKE70..2FC197903-198108

35313GASKET, FRONT OIL PUMP COVER

main35313-12011iKE70..2FC197903-198108

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-22010iAE70,TE70..3FC197908-198108

main35322-31010iKE70..2FC197903-198108

35617RING, CLUTCH DRUM OIL SEAL

main35617-12010×2iKE70..2FC197903-198108

main35617-16010×2iCE70..4FC198202-198304

main35617-22010×2iAE70,TE70..3FC197908-198108

main35617-22011×2iAE70,KE70..3FC198108-198304

9112140840

main91121-40840

9161140625

main91611-40625

9451200800

main94512-00800

9471190800

main94711-90800

20 parts on this diagram · 4 diagrams in section
