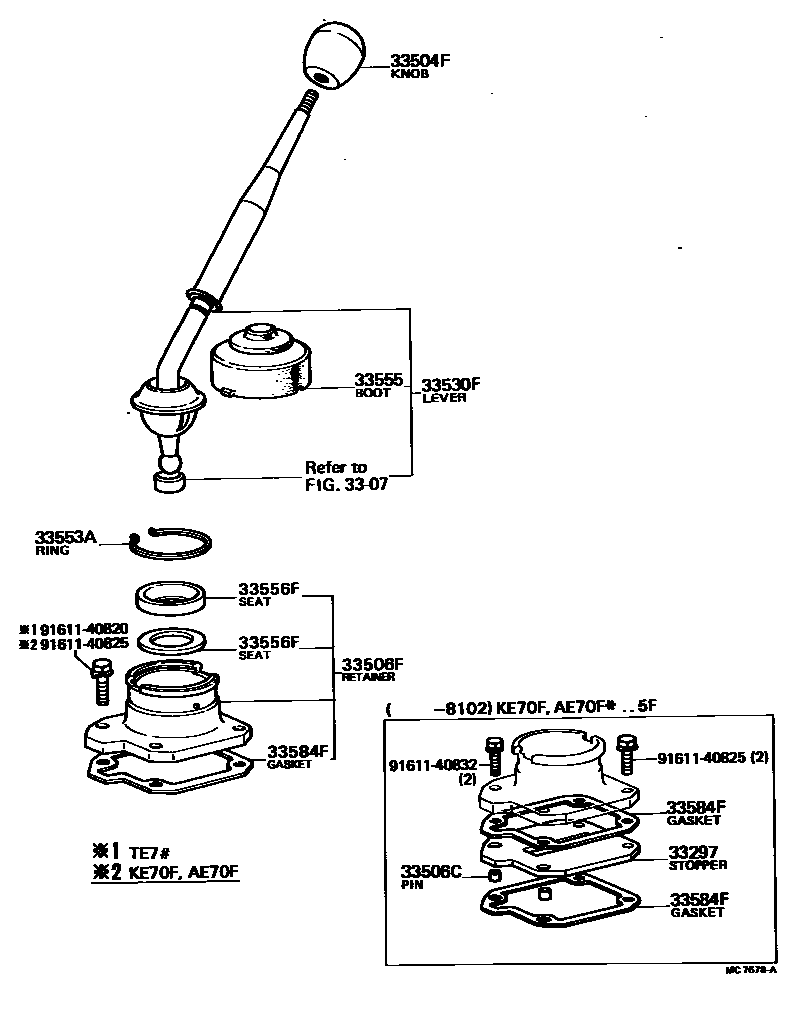

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

3307GEAR SHIFT FORK & LEVER SHAFT (MTM)

→ Go to FIG 33-07

33297STOPPER, SHIFT LEVER

main33291-12010iAE70..MTM; KE70..5F197903-198102

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-10020-01iAE70,KE70..5F..DX198108-198304

BLACK,BLACK,TRIM2#

main33504-10020-04iAE70,KE70,TE70..5F..(ST,XL)197903-198108

BLUE,BLUE,TRIM8#

main33504-10020-05iAE70,KE70,TE70..5F..XL..4D197903-198108

BEIGE,BEIGE,TRIM4#

main33504-10020-06iAE70,KE70,TE70..5F..(ST,XL)..2D197903-198108

DARK BROWN,BROWN,TRIM4#

main33504-10020-14iCE70..5F..XL198202-198304

BLUE,BLUE,TRIM8#

main33504-10040-01iAE70,TE7#..GT,SR,TRR197903-198108

URETHANE,BLACK,BLACK,TRIM2#

main33504-10040-04iAE70,TE70..SR; TE71..2D197903-198108

URETHANE,BLUE,BLUE,TRIM8#

main33504-10040-06iAE70,TE70..SR; TE71..2D197903-198108

URETHANE,DARK BROWN,BROWN,TRIM4#

main33504-12080-01iAE70,KE70,TE70..4F..(DX,SPD,ST,XL)197903-198304

BLACK,BLACK,TRIM2#

main33504-12080-04iAE70,KE70,TE70..4F..(ST,XL)197903-198112

BLUE,BLUE,TRIM8#

main33504-12080-05iAE70,KE70,TE70..4F..XL..4D197903-198108

BEIGE,BEIGE,TRIM4#

main33504-12080-06iAE70,KE70..4F..XL197903-198108

DARK BROWN,BROWN,TRIM4#

main33504-12080-14iAE70,KE70..4F..XL198112-198304

BLUE,BLUE,TRIM8#

main33504-12120iAE70,KE70..HT..4F..XL198108-198304

WOODY

main33504-12140iAE70,CE70,KE70,TE70..5F..SE197903-198304

WOODY

main33504-14060-01iAE70,KE70..4F..SR198108-198304

BLACK,BLACK,TRIM2#

main33504-14060-04iAE70,KE70..4F..SR198108-198112

BLUE,BLUE,TRIM8#

main33504-14060-06iAE70,KE70..4F..SR198108-198304

DARK BROWN,BROWN,TRIM4#

main33504-14060-14iAE70,KE70..4F..SR198112-198304

BLUE,BLUE,TRIM8#

main33504-24010-01iAE70,KE70,TE71..5F..(GT,SR,SX,TRR,TRS)198108-198304

BLACK,BLACK,TRIM2#

main33504-24010-04iAE70,KE70,TE71..5F..(GT,SR,SX,TRR,TRS)198112-198304

BLUE,BLUE,TRIM8#

main33504-24010-06iAE70,KE70,TE71..5F..(GT,SR,SX,TRR,TRS)198108-198304

DARK BROWN,BROWN,TRIM4#

main33504-24010-14iAE70,KE70,TE71..5F..(GT,SR,SX,TRR,TRS)198108-198112

BLUE,BLUE,TRIM8#

main33542-12090-01iKE70..3FC..(DX,SPD,SR,XL)198108-198304

BLACK,BLACK,TRIM2#

main33542-12100iAE70..3FC..XL..4D198007-198007

WOODY

main33542-24030-01iAE70,CE70..ATM..(DX,SR,XL)198108-198304

BLACK,BLACK,TRIM2#

main33542-24030-04iAE70,CE70..ATM..(SR,XL)198112-198304

BLUE,BLUE,TRIM8#

main33542-24030-06iAE70,CE70..ATM..(SR,XL)198108-198304

DARK BROWN,BROWN,TRIM4#

main33542-24030-14iAE70..3FC..(SR,XL)198108-198112

BLUE,BLUE,TRIM8#

33506CPIN, SHIFT LEVER RETAINER RING

main90253-11001×2iAE70..MTM; KE70..5F197903-198102

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33570-12020iCE70..5F198202-198304

main33570-14020iAE70,KE70,TE71..MTM197903-197906

main33570-14021iAE70,KE70,TE7#..MTM197906-198304

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33503-12120iAE70,TE70..3FC197908-198108

main33503-12121iAE70,CE70,KE70..ATM198108-198304

main33503-12130iKE70..2FC197903-198108

main33530-12230iAE70,KE70,TE71..MTM197903-197908

main33530-12231iAE70,KE70,TE7#..MTM197908-198304

main33530-12270iCE70..5F198202-198304

33553ARING, SNAP (FOR SHIFT LEVER SPRING SHEET)

main90521-49002iAE70,KE70,TE71..MTM197903-197906

main90521-49003iAE70,KE70,TE7#..MTM197906-198304

33555BOOT, SHIFT LEVER

main33555-12080iAE70,CE70,KE70,TE70..ATM197903-198304

main33555-12090iAE70,KE70,TE7#..MTM197908-198304

main33555-20060iAE70,KE70,TE71..MTM197903-197908

main33555-31011iCE70..5F198202-198304

33556FSEAT, TRANSMISSION SHIFT LEVER BALL

main33556-14010iAE70,KE70,TE7#..MTM197903-198304

T=13.5

main33556-14020iAE70,KE70,TE7#..MTM197903-198304

T=3.0

33584FGASKET, CONTROL SHIFT LEVER RETAINER (FOR FLOOR SHIFT)

main33584-12040iAE70..MTM; KE70..5F197903-198102

T=0.5,LWR

main33584-20010iAE70,KE70,TE7#..MTM197903-198304

T=0.3

9161140820

main91611-40820

9161140825

main91611-40825

9161140832

main91611-40832

13 parts on this diagram · 6 diagrams in section
