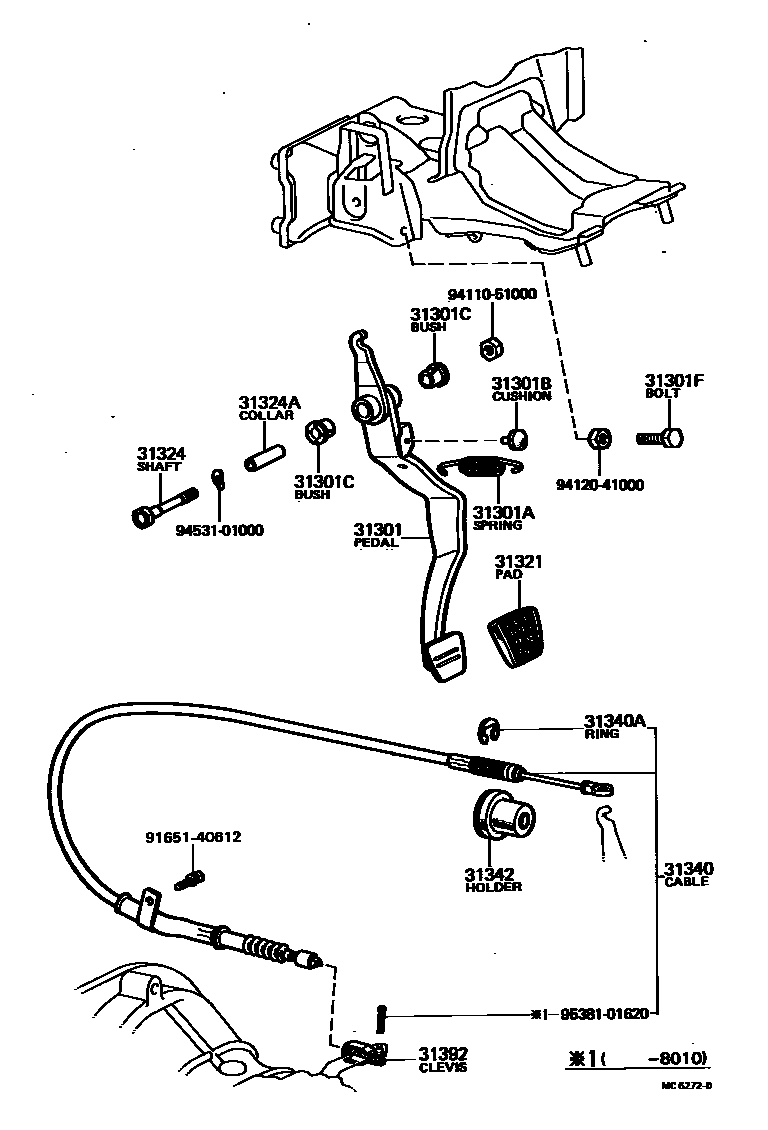

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-12120iKE70..MTM197903-198304

main31301-12140iTE7#..MTM197903-198108

sub31301-12190

main31301-12160iAE70..MTM197903-198108

sub31301-12180

main31301-12190iCE70,TE71..5F198108-198304

31301ASPRING(FOR CLUTCH PEDAL)

main90507-14003iAE70,CE70,KE70,TE7#..MTM197903-198304

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06008iAE70,CE70,KE70,TE7#..MTM197903-198304

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13007iAE70,CE70,KE70,TE7#..MTM197903-198304

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iAE70,CE70,KE70,TE7#..MTM197903-198304

31321PAD, CLUTCH PEDAL

main31321-12030iAE70,CE70,KE70,TE7#..MTM197903-198304

31324SHAFT, CLUTCH PEDAL

main90101-10015iAE70,CE70,KE70,TE7#..MTM197903-198304

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iAE70,CE70,KE70,TE7#..MTM197903-198304

31340CABLE ASSY, CLUTCH RELEASE

main31340-19205iKE70..MTM197903-198304

main31340-19215iAE70..MTM197903-197911

sub31340-19285

main31340-19216iAE70..MTM197911-197912

sub31340-19286

sub31341-12012

main31340-19217iAE70..MTM197912-198108

sub31340-19286

main31340-19255iAE70..MTM198108-198304

sub31340-12210

sub96160-01200

31340ARING, E(FOR CLUTCH RELEASE CABLE)

main96160-01200iAE70,KE70..MTM197903-198304

31342HOLDER, CLUTCH CABLE, INNER

main31342-12901iAE70,KE70..MTM197903-197904

main31342-12902iAE70,KE70..MTM197904-198304

31392CLEVIS, CLUTCH CABLE

main31392-10010iAE70,KE70..MTM197903-198304

main31392-12010iAE70..MTM197911-198108

9165140612

main91651-40612

9411051000

main94110-51000

9412041000

main94120-41000

9453101000

main94531-01000

9538101620

main95381-01620

17 parts on this diagram · 4 diagrams in section
