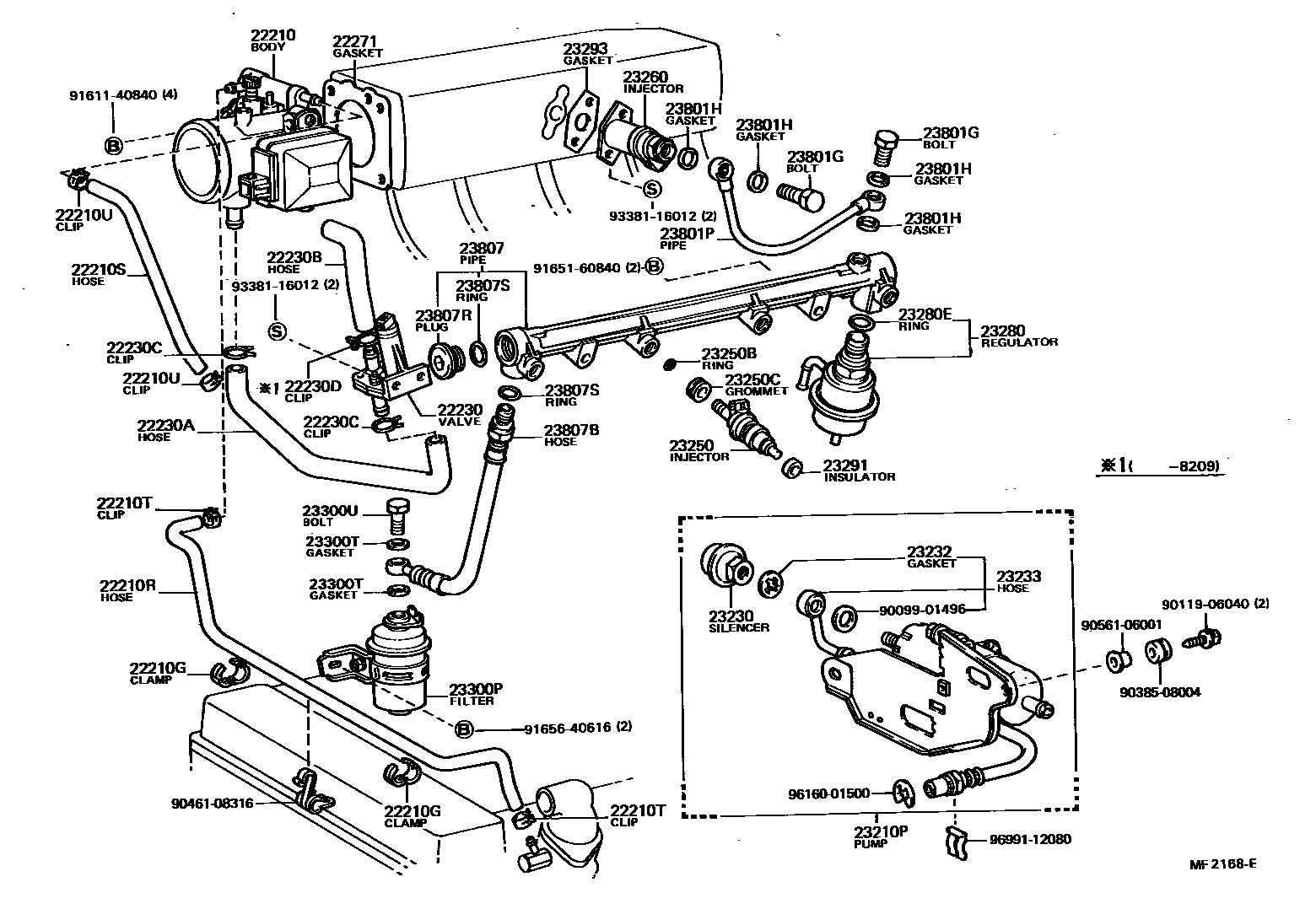

FUEL INJECTION SYSTEM
22210BODY ASSY, THROTTLE
22210GCLAMP OR CLIP(FOR THROTTLE BODY HOSE)
22210RHOSE, THROTTLE BODY, NO.1
22210SHOSE, THROTTLE BODY, NO.2
22210TCLIP(FOR THROTTLE BODY, NO.1)
22210UCLIP(FOR THROTTLE BODY, NO.2)
22230VALVE ASSY, AUXILIARY AIR
22230AHOSE, AUXILIARY AIR VALVE, NO.1
22230BHOSE, AUXILIARY AIR VALVE, NO.2
22230CCLIP, AUXILIARY AIR VALVE HOSE, NO.1
22230DCLIP, AUXILIARY AIR VALVE HOSE, NO.2
22271GASKET, THROTTLE BODY
23210PPUMP ASSY, FUEL W/MOTOR & BRACKET
23230SILENCER ASSY
23232GASKET(FOR FUEL PUMP HOSE)
23233HOSE, FUEL PUMP
23250INJECTOR ASSY, FUEL
23250BRING, O(FOR FUEL INJECTOR)
23250CGROMMET(FOR FUEL INJECTOR)
23260INJECTOR ASSY, COLD START FUEL
23280REGULATOR ASSY, FUEL PRESSURE
23280ERING, O(FOR FUEL PRESSURE REGULATOR)
23291INSULATOR, INJECTOR VIBRATION
23293GASKET, COLD START INJECTOR
23300PFILTER, FUEL(FOR EFI)
23300TGASKET(FOR FUEL FILTER)
23300UBOLT, UNION(FOR FUEL FILTER)
23801GBOLT, UNION(FOR FUEL PIPE)
23801HGASKET(FOR FUEL PIPE)
23801PPIPE SUB-ASSY, FUEL, NO.1
23807PIPE SUB-ASSY, FUEL DELIVERY
23807BHOSE, FUEL DELIVERY PIPE
23807RPLUG, FUEL DELIVARY PIPE
FR
23807SRING, O(FOR FUEL DELIVARY PIPE)
DELIVERY PIPE
MAIN HOSE
9009901496
main90099-01496
9011906040
main90119-06040
9038508004
main90385-08004
9046108316
main90461-08316
9056106001
main90561-06001
9161140840
main91611-40840
9165160840
main91651-60840
9165640616
main91656-40616
9338116012
main93381-16012
9616001500
main96160-01500
9699112080
main96991-12080
45 parts on this diagram · 1 diagram in section
