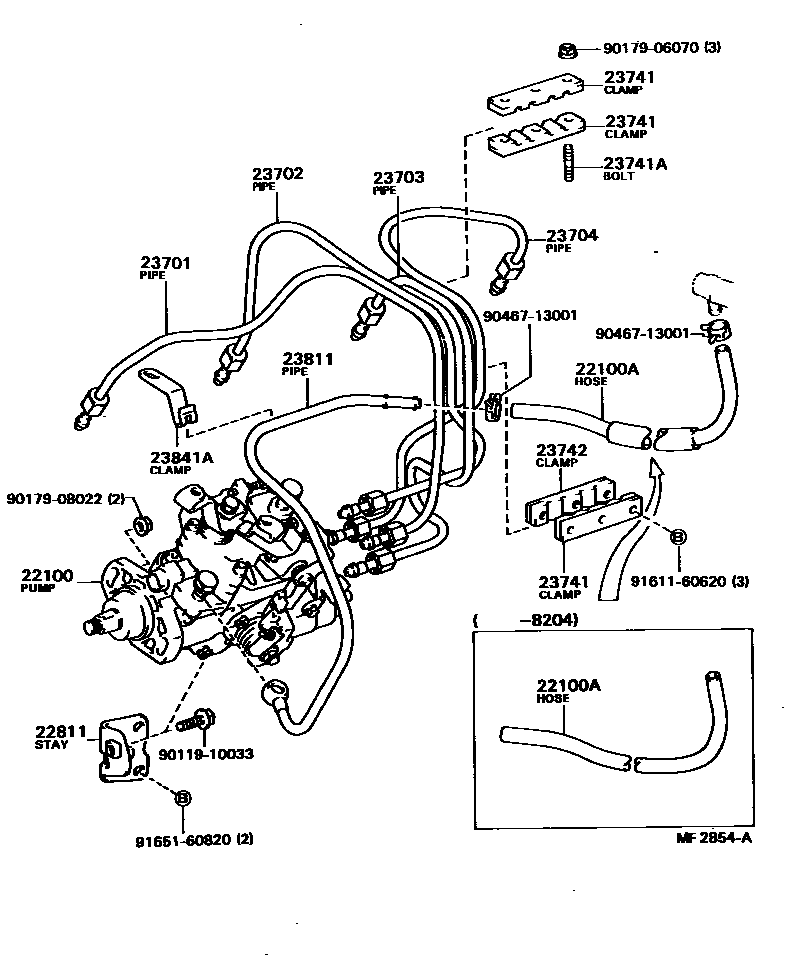

INJECTION PUMP ASSEMBLY

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-64010i1C..CE70..5F..(SPD,XL)198208-198304

sub22100-64020

main22100-64020i1C..CE70..5F..SE198208-198304

main22100-64030i1C..CE70..5F..(SPD,XL)198208-198304

COLD SPEC

sub22100-64020

sub88031-12120

main22100-64040i1C..CE70..5F..SE198208-198304

COLD SPEC

sub22100-64020

sub88031-12120

main22100-64050i1C..CE70..4FC..XL198202-198304

sub22100-64060

main22100-64060i1C..CE70..4FC..SE198202-198304

main22100-64070i1C..CE70..4FC..XL198202-198304

COLD SPEC

sub22100-64060

sub88031-12120

main22100-64080i1C..CE70..4FC..SE198202-198304

COLD SPEC

sub22100-64060

sub88031-12120

main22100-64090i1C..CE70..5F..(SPD,XL)198202-198208

main22100-64100i1C..CE70..5F..SE198202-198208

sub22100-64060

main22100-64110i1C..CE70..5F..(SPD,XL)198202-198208

COLD SPEC

sub22100-64090

sub88031-12120

main22100-64120i1C..CE70..5F..SE198202-198208

COLD SPEC

sub22100-64060

sub88031-12120

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main23271-64010i1C..CE70198204-198210

sub23271-64011

main23271-64011i1C..CE70198210-198304

main95332-08030i1C..CE70198202-198204

sub95333-08030

22811STAY, INJECTION PUMP, NO.1

main22811-64010i1C..CE70198202-198304

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-64010i1C..CE70198202-198304

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-64020i1C..CE70198202-198304

sub23702-64010

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-64010i1C..CE70198202-198304

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-64020i1C..CE70198202-198304

sub23704-64010

23741CLAMP, INJECTION PIPE, NO.1

main23741-64010i1C..CE70198202-198304

sub23741-64011

23741ABOLT, STUD(FOR INJECTION PIPE CLAMP)

main92122-60622i1C..CE70198202-198304

23742CLAMP, INJECTION PIPE, NO.2

main23742-64010i1C..CE70198202-198304

23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)

main23811-64011i1C..CE70198202-198304

sub23811-64012

23841ACLAMP, FUEL PIPE, NO.1(FOR INJECTION PUMP)

main90929-01018i1C..CE70198202-198304

9011910033

main90119-10033

9017906070

main90179-06070

9017908022

main90179-08022

9046713001

main90467-13001

9161160620

main91611-60620

9165160820

main91651-60820

18 parts on this diagram · 1 diagram in section
