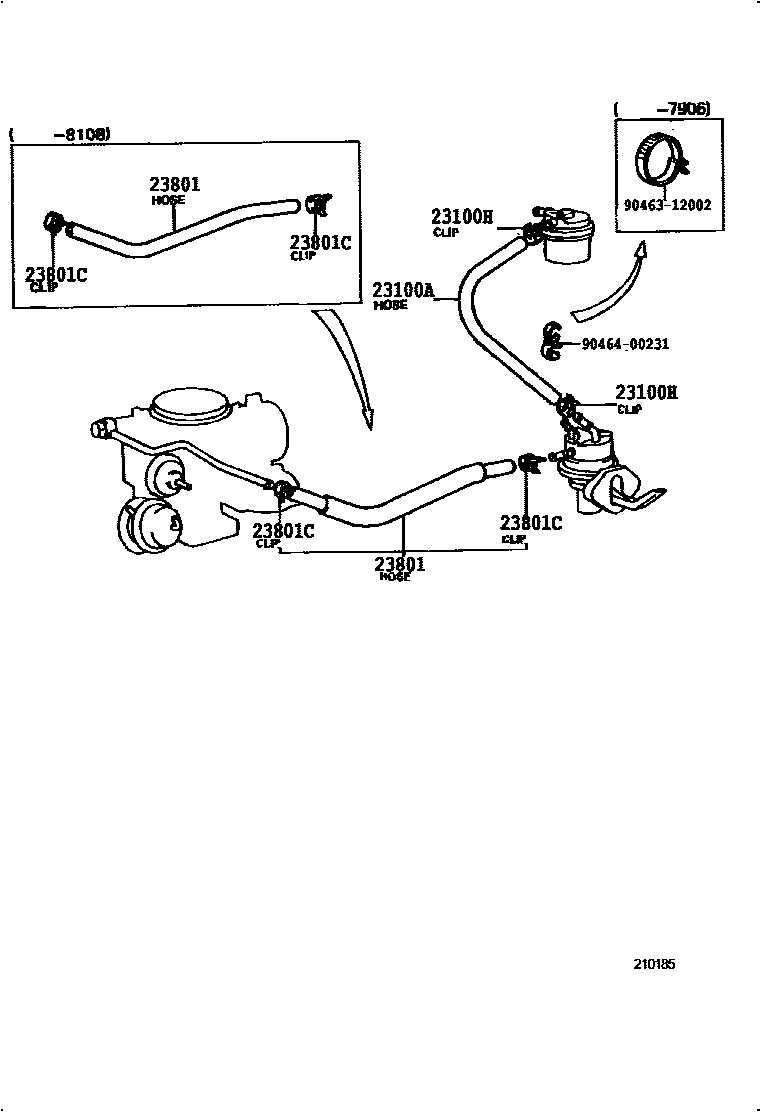

FUEL PIPE & CLAMP

0001 1 0002 1 MF2186C,MF2176D 0003 1

23100AHOSE, FUEL

main23271-18020i13TU..TE70..SE,ST,XL197908-198108

W/POWER STEERING,L=280

main95332-06022i3AU..AE70197903-197904

L=220

main95332-06030i3AU..AE70197904-198304

*H,L=220

main95332-06032i4KU..KE70197903-197904

L=320

main95332-06040i4KU..KE70197904-198304

*H,L=320

23100HCLIP(FOR FUEL HOSE)

main96132-30600×2i13TU..TE70; 3AU..AE70; 4KU..KE70197903-198304

23801PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1

main23271-15010i3AU..AE70198108-198304

main23801-13030i4KU..KE70197903-198202

main23801-13050i4KU..KE70198202-198304

main95332-06016i3AU..AE70197903-197904

main95332-06020i3AU..AE70197904-198108

main95332-06030i13TU..TE70197908-198108

23801CCLIP(FOR CARBURETOR FUEL HOSE)

main96132-30600×2i13TU..TE70; 3AU..AE70; 4KU..KE70197903-198304

9046312002

main90463-12002

9046400231

main90464-00231

6 parts on this diagram · 3 diagrams in section
