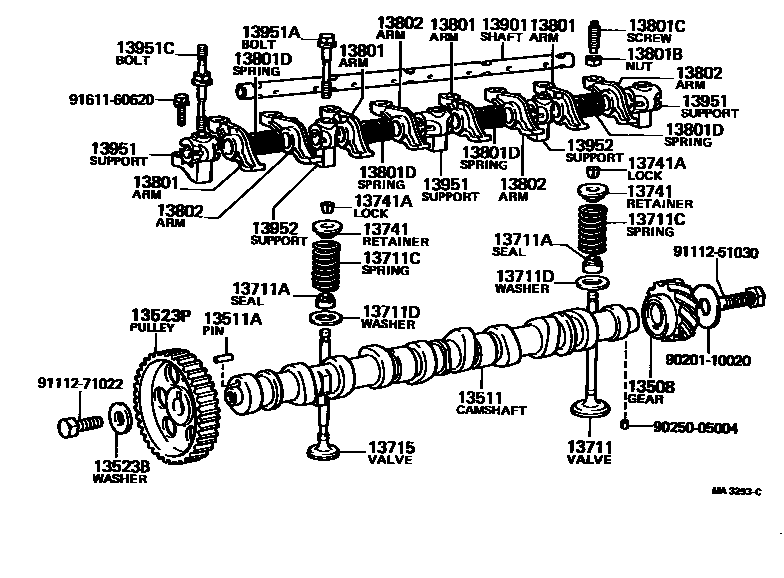

CAMSHAFT & VALVE
13508GEAR SUB-ASSY, DISTRIBUTOR DRIVE
13511CAMSHAFT
13511APIN, STRAIGHT(FOR CAMSHAFT KNOCK)
13523GEAR OR SPROCKET, CAMSHAFT TIMING
N=36
N=24
13523BWASHER, PLATE(FOR TIMING GEAR)
13523PPULLEY, CAMSHAFT TIMING
N=36
13711VALVE, INTAKE
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
INTAKE
EXHAUST
13711CSPRING, COMPRESSION(FOR OUTER)
13711DWASHER, PLATE(FOR VALVE SPRING SEAT)
13715VALVE, EXHAUST
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
13801BNUT, HEXAGON(FOR VALVE ADJUSTING)
13801CSCREW, VALVE ADJUSTING
13801DSPRING, COMPRESSION(FOR ROCKER ARM)
13802ARM SUB-ASSY, VALVE ROCKER, NO.2
13901SHAFT SUB-ASSY, VALVE ROCKER, NO.1
13951SUPPORT, VALVE ROCKER, NO.1
13951ABOLT(FOR ROCKER SUPPORT SET)
*8-1.25PX53-15
*8-1.25PX58-15
13951CBOLT, STUD(FOR ROCKER SUPPORT)
L=97,S=15&15
L=100,S=10&54
L=96,S=10&50
13952SUPPORT, VALVE ROCKER, NO.2
9020110020
main90201-10020
9025005004
main90250-05004
9111251030
main91112-51030
9111271022
main91112-71022
9161160620
main91611-60620
28 parts on this diagram · 5 diagrams in section
