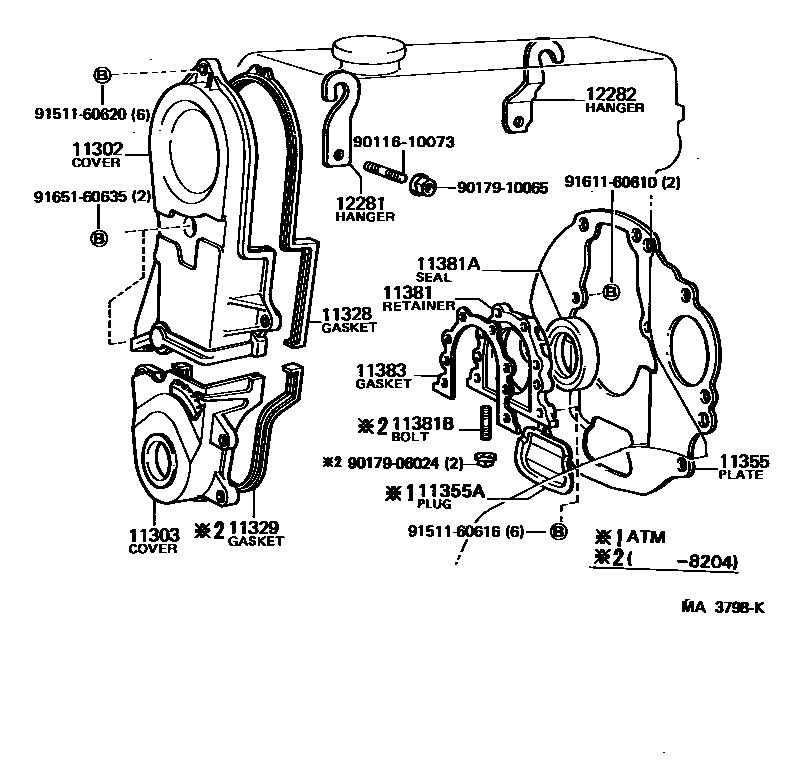

TIMING GEAR COVER & REAR END PLATE
11302COVER SUB-ASSY, TIMING CHAIN OR BELT
11303COVER SUB-ASSY, CRANKSHAFT GEAR OR PULLEY
11328GASKET, TIMING GEAR OR CHAIN COVER
11329GASKET, TIMING GEAR REAR COVER
11355PLATE, REAR END
COLD SPEC
11355APLUG, HOLE(FOR REAR END PLATE)
11381RETAINER, ENGINE REAR OIL SEAL
11381ASEAL, ENGINE REAR OIL
HTC 70 92 12
HTC 75 100 13
11381BBOLT, STUD(FOR ENGINE REAR OIL SEAL RETAINER)
L=23,S=12&9
L=21,S=9&9
11383GASKET, ENGINE REAR OIL SEAL RETAINER
12281HANGER, ENGINE, NO.1
W/POWER STEERING
12282HANGER, ENGINE, NO.2
9011610073
main90116-10073
9017906024
main90179-06024
9017910065
main90179-10065
9151160616
main91511-60616
9151160620
main91511-60620
9161160610
main91611-60610
9165160635
main91651-60635
19 parts on this diagram · 5 diagrams in section
